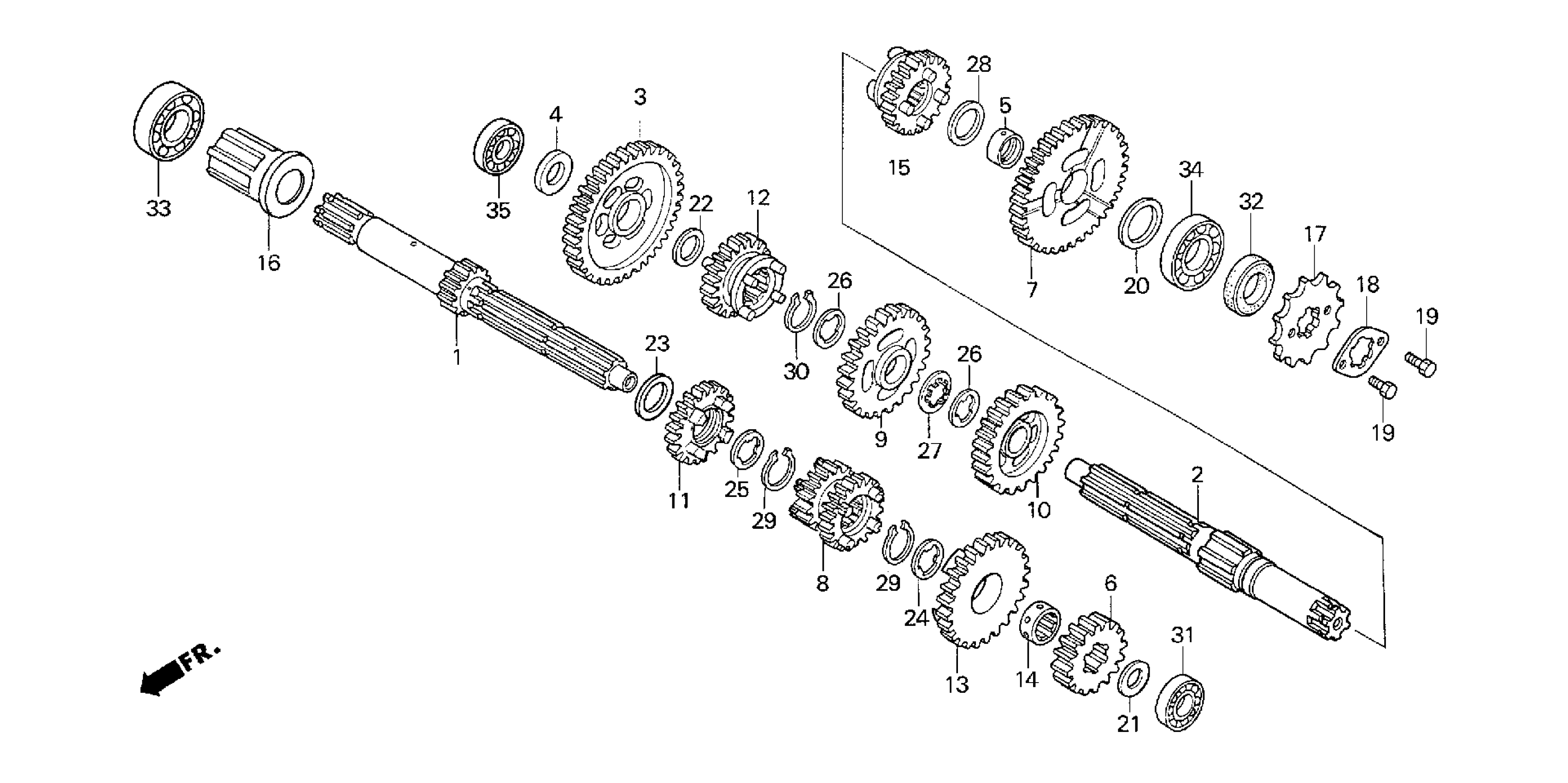

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T)

23211-NX1-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23220-NX1-000

Unavailable

3

GEAR (C-1) (37T)

23420-NX1-000

Unavailable

4

WASHER, THRUST (12.2MM)

23423-NX1-000

Unavailable

5

BUSH (17MM)

23431-166-000

Unavailable

6

GEAR (M-2) (16T)

23441-NX1-000

Unavailable

7

GEAR (C-2) (35T)

23451-NX1-000

Unavailable

8

GEAR (M-3) (M-4)(18T, 20T)

23461-NX1-000

Unavailable

9

GEAR (C-3) (31T)

23471-NX1-000

Unavailable

10

GEAR (C-4) (29T)

23481-NX1-000

Unavailable

11

GEAR (M-5) (22T)

23491-NX1-000

Unavailable

12

GEAR (C-5) (28T)

23501-NX1-000

Unavailable

13

GEAR (M-6) (23T)

23511-NX1-000

Unavailable

14

COLLAR, SPLINE

23512-NX1-000

Unavailable

15

GEAR (C-6) (27T)

23521-NX1-000

Unavailable

16

GUIDE, CLUTCH (OUTER)

23530-NX1-000

Unavailable

17

SPROCKET, DRIVE (15T)

23800-098-000

$19.05

18

PLATE, DRIVE SPROCKET FIXING

23802-040-000

$2.64

19

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

20

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

21

WASHER, THRUST (12MM)

90452-166-600

$2.39

22

WASHER, THRUST (16.5MM)

90452-437-000

$3.40

23

WASHER B, THRUST (17MM)

90453-115-000

$2.28

24

WASHER, SPLINE (17MM)

90461-KK6-000

$2.05

25

WASHER, SPLINE (17MM)

90461-115-000

$2.66

26

WASHER A, SPLINE (19MM)

90464-166-000

$3.76

27

WASHER, LOCK (19MM)

90465-166-600

$4.41

28

WASHER, THRUST (17MM)

90466-166-600

$3.49

29

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

30

CIRCLIP (19MM)

90602-166-010

$3.41

31

BEARING, RADIAL BALL (6201U)

96140-62010-00

$9.63

32

OIL SEAL (17X29X5) (NOK)

91203-035-005

$8.91

33

BEARING, RADIAL BALL (6005)

96100-60050-00

$11.25

34

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70

35

BEARING, RADIAL BALL (6201U)

96140-62010-00

$9.63
