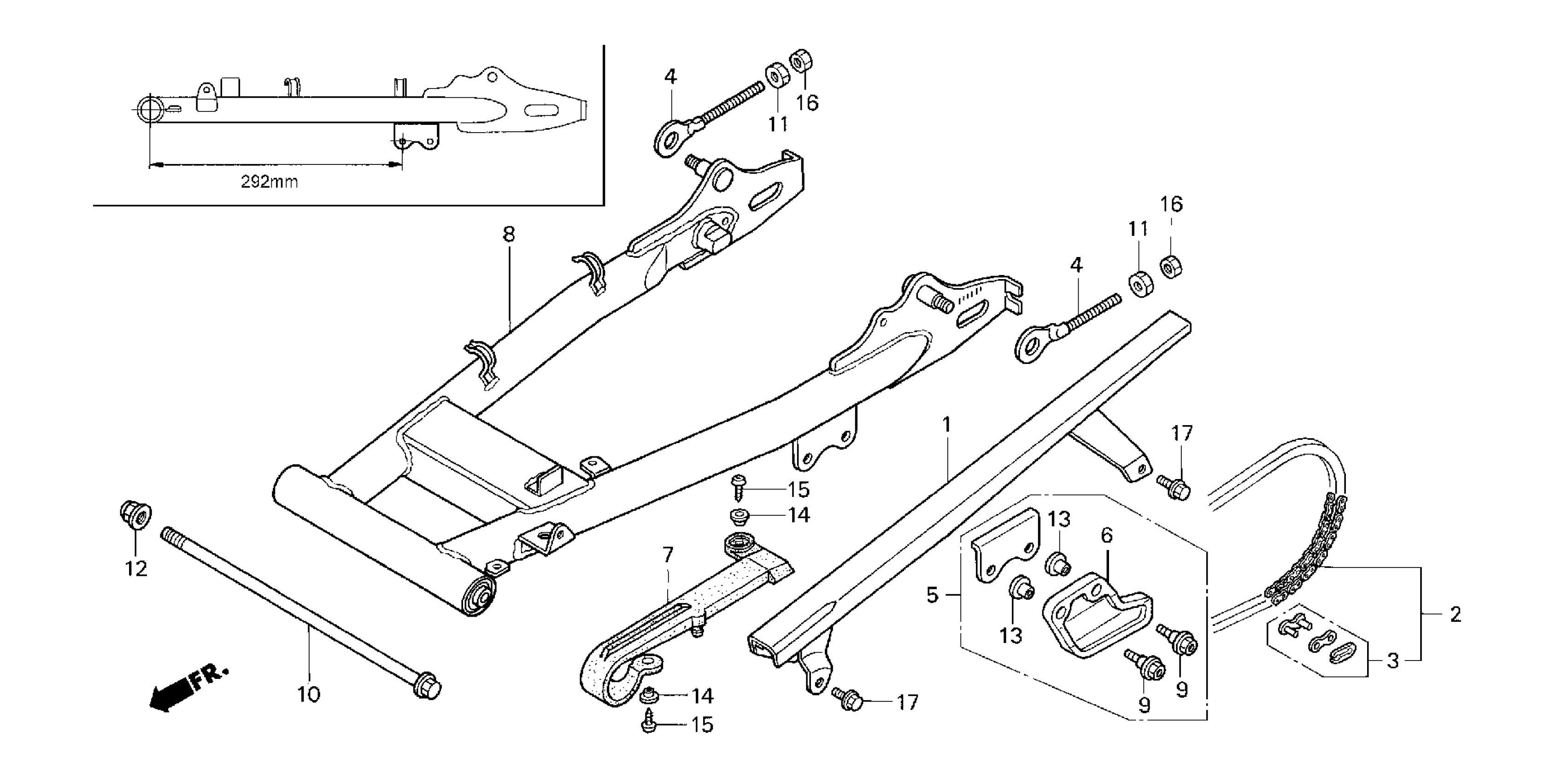

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 SWINGARM + CHAIN CASE Diagram

CASE, DRIVE CHAIN

40510-GCR-000

$65.43

CHAIN, DRIVE (RK420 MZ-114RJ) (RK EXCEL)

40530-NX1-005

Unavailable

MASTER LINK (DAIDO)

40531-098-003

$3.74

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.74

ADJUSTER, R. DRIVE CHAIN

40543-141-850

$6.07

SET, CHAIN GUARD

52105-NX1-305

Unavailable

GUARD, CHAIN

52156-GAN-670

$42.30

SLIDER, CHAIN

52170-GCR-000

Unavailable

SWINGARM SUB-ASSY., RR. *NH1* (BLACK)

52200-NX1-000

Unavailable

BOLT, FLANGE (6MM)

90110-GE0-710

$5.11

BOLT, SWINGARM PIVOT

90121-GCR-000

Unavailable

NUT, SPECIAL (6MM)

90302-KBP-900

$1.94

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

WASHER

90556-MB4-000

$2.61

SCREW, TAPPING (5X12)

93901-25280

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

BOLT, FLANGE (6X10)

96300-06010-00

$1.49
