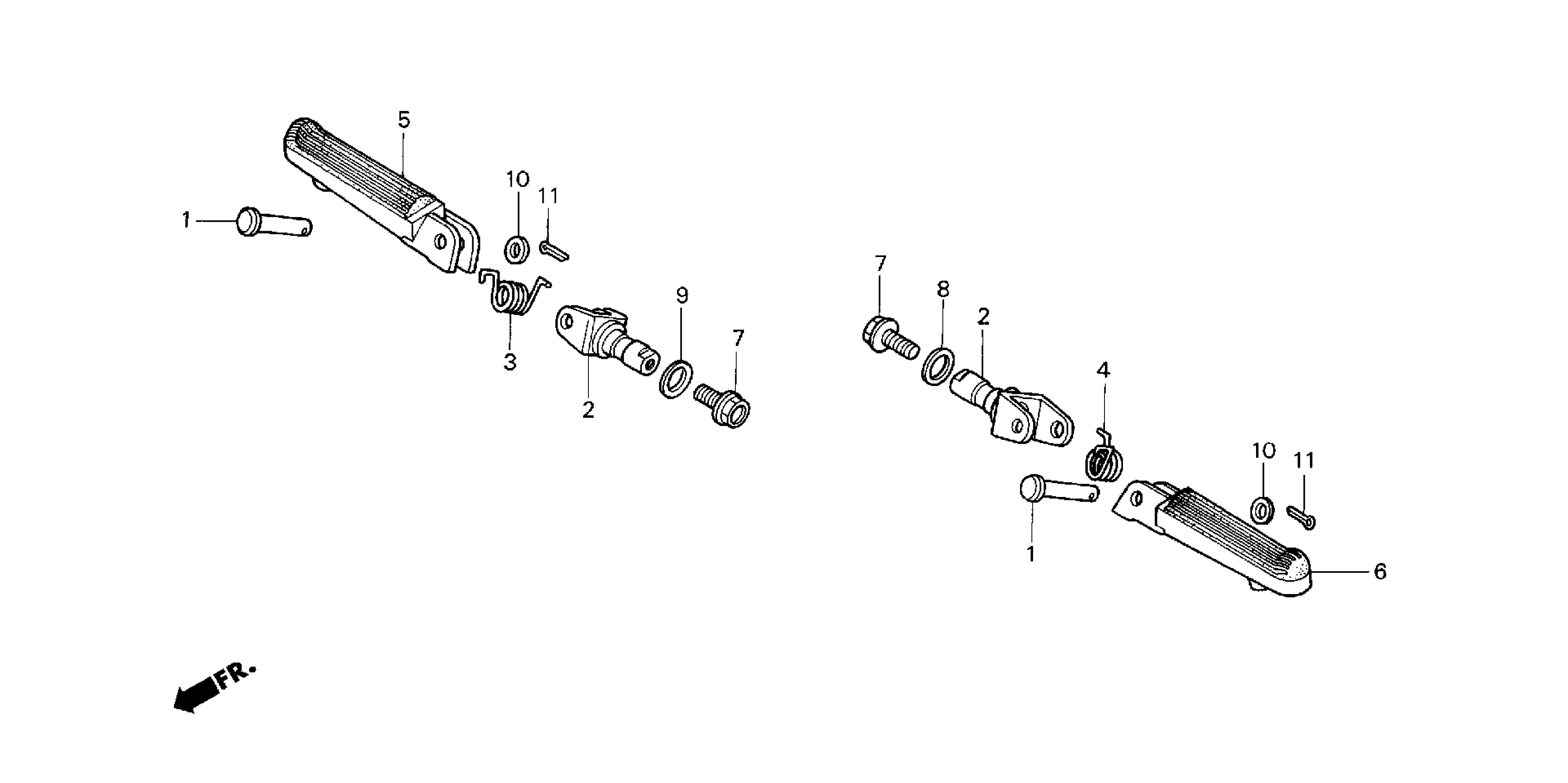

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 STEP Diagram

#

Description
Price

1

PIN, MAIN STEP BAR JOINT

50603-GS9-010

$5.07

2

BRACKET, MAIN STEP

50612-MAS-000

Unavailable

3

SPRING, R. STEP RETURN

50617-445-840

$5.07

4

SPRING, L. STEP RETURN

50644-445-840

$5.07

5

ARM, R. STEP

50660-KV3-700

Unavailable

6

ARM, L. STEP

50670-KV3-700

Unavailable

7

BOLT, FLANGE (10X20)

90102-MW0-000

Unavailable

8

WASHER, THRUST (17.2MM)

90403-KV3-830

Unavailable

9

WASHER, WAVE (17.5MM)

90505-MR7-000

$5.39

10

WASHER, PLAIN (8MM)

94102-08000

$0.86

11

PIN, SPLIT (2.0X15)

94201-20150

$0.94
