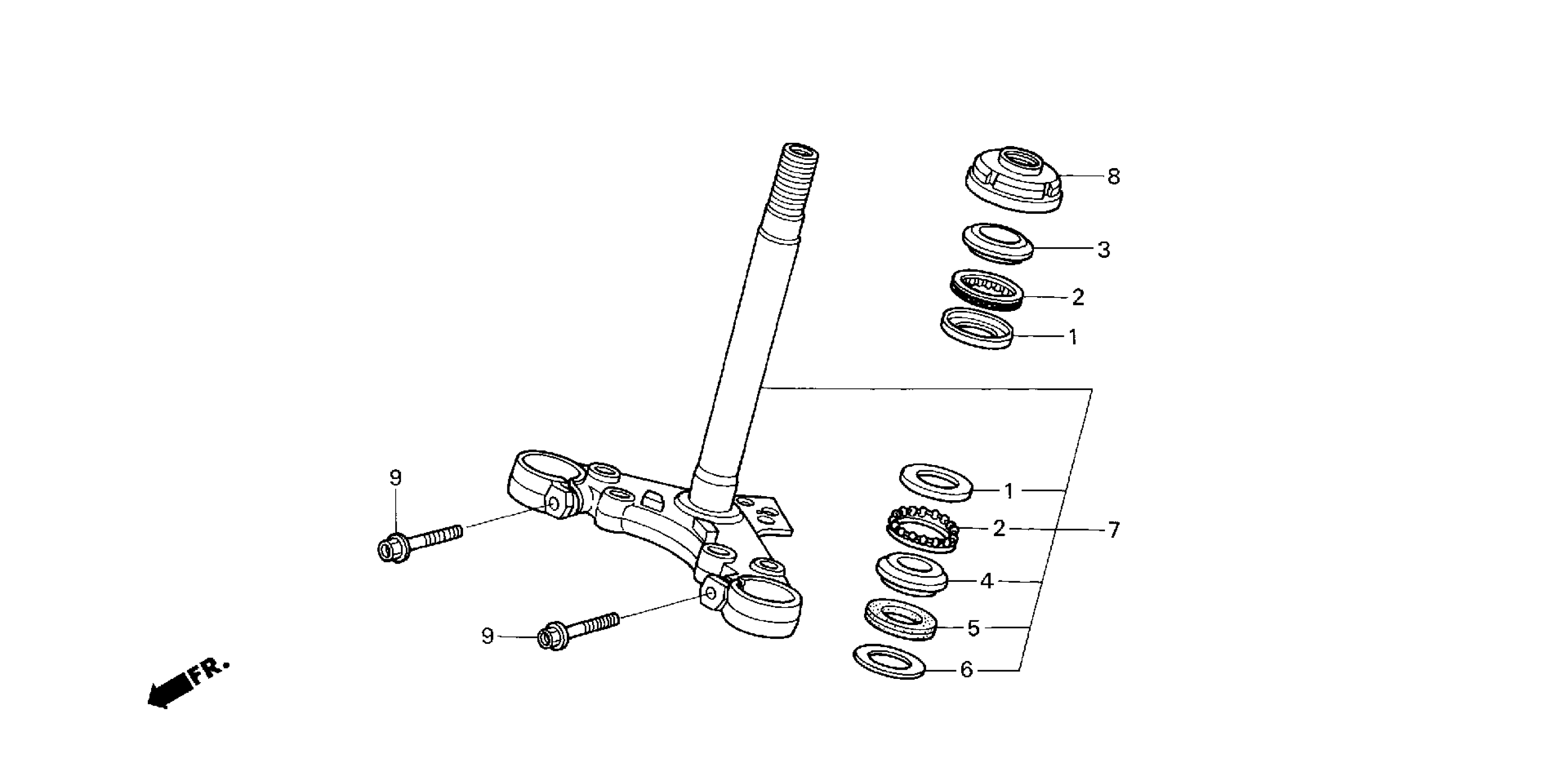

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 STEERING STEM Diagram

#

Description

Price

1

RACE, STEERING BALL

50301-041-010

$11.38

2

BALL ASSY., STEERING STEEL (KATO HATSUJO)

53210-GS9-003

$17.39

3

RACE, STEERING TOP CONE

53211-028-010

$10.18

4

RACE, STEERING CONE (LOWER)

53212-030-010

$9.85

5

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.40

6

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$2.74

7

STEM SUB-ASSY., STEERING NH1 (BLACK)

53219-GCR-000ZB

Unavailable

8

THREAD, STEERING HEAD TOP

53220-074-000

$14.54

9

BOLT, FLANGE (8X35)

96300-08035-07

$1.34
