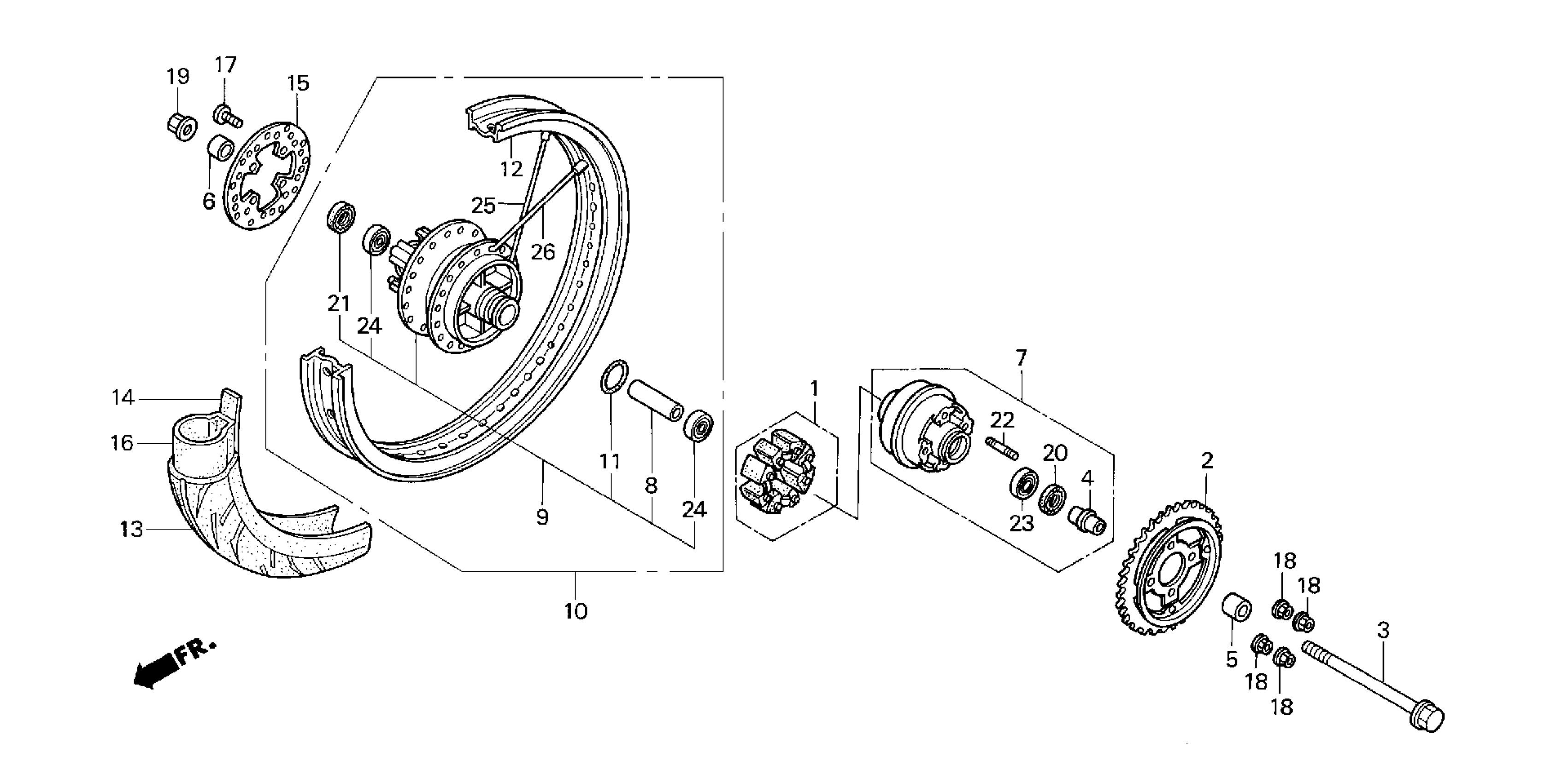

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-GCR-000

$29.05

2

SPROCKET, FINAL DRIVEN ( 43T)

41200-GCR-000

$61.38

3

AXLE, RR. WHEEL

42301-GCR-000

$13.46

4

SLEEVE, RR. WHEEL

42303-GF6-003

$12.20

5

COLLAR, L. RR. WHEEL SIDE

42304-GCR-000

$8.95

6

COLLAR, R. RR. WHEEL SIDE

42311-GCR-000

$7.36

7

FLANGE SUB-ASSY., RR. DRIVEN

42615-GCR-000

Unavailable

8

COLLAR, RR. AXLE DISTANCE

42620-KW7-880

$14.03

9

HUB SUB-ASSY., RR. WHEEL

42635-GCR-000

$331.70

10

WHEEL SUB-ASSY., RR.

42650-GCR-000

Unavailable

11

O-RING (40.5X3) (NIPPON DUST KEEPER)

42653-001-004

$2.39

12

RIM, WHEEL (RK EXCEL)

42701-GCR-003

Unavailable

13

TIRE (2.50-18 45L) (BS)

42711-NX1-003

Unavailable

14

FLAP, TIRE (PIRELLI)

42713-GCR-008

Unavailable

14

FLAP, TIRE (BS)

42713-NX1-003

Unavailable

15

DISK, RR. BRAKE

43351-GCR-000

$176.74

16

TUBE, TIRE (2.50-18) (BS)

44712-304-003

Unavailable

17

BOLT, FR. DISK (8X24) (SAGA)

90105-KR3-000

$6.07

18

NUT, U (10MM)

90304-GE8-003

$3.67

19

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

20

OIL SEAL (27X40X6)

90753-GK4-003

$8.66

21

OIL SEAL (26X37X6) (ARAI)

90753-051-003

$7.66

21

OIL SEAL (26X37X6) This part replaces 90753-051-005.

90753-051-003

$7.66

22

BOLT, STUD (10X25)

92915-10025-0E

$1.51

23

BEARING, RADIAL BALL (6203U)

96140-62030-10

$11.91

24

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

25

SPOKE SET (B9X172) (INSIDE)

97281-52184-R0

$3.75

26

SPOKE SET (B9X172) (OUTSIDE)

97547-52184-R0

$3.75
