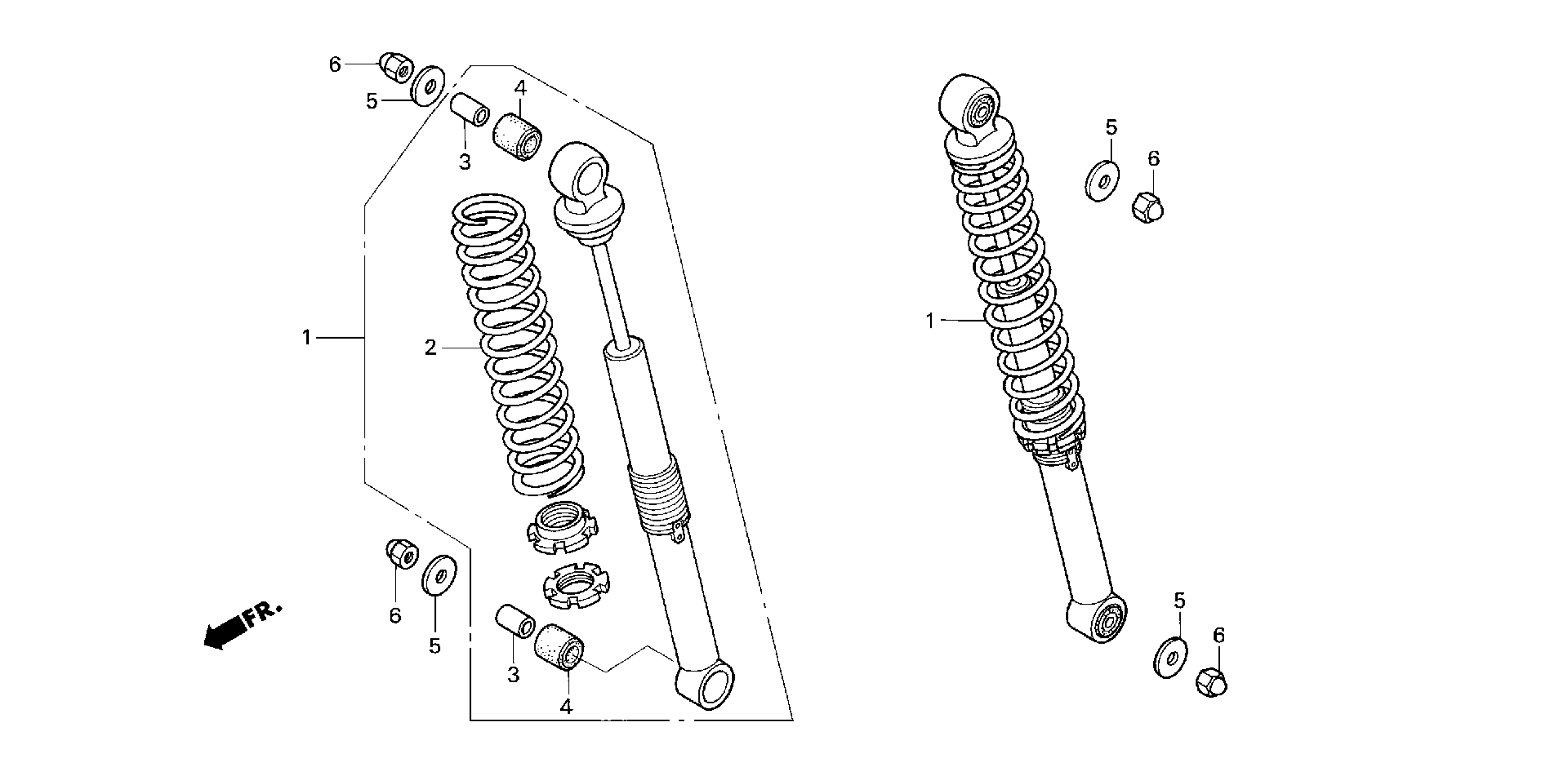

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 REAR SHOCK ABSORBER Diagram

#

Description

Price

1

CUSHION ASSY., RR.

52400-NX1-003

Unavailable

2

SPRING, RR. SHOCK ABSORBER (K=1.6)

52401-NX1-003

Unavailable

2

SPRING, RR. SHOCK ABSORBER (K=1.5-1.7) | (Optional).

52402-NX1-003

Unavailable

3

COLLAR, RR. SHOCK ABSORBER RUBBER BUSH

52486-056-000

Unavailable

4

BUSH, RUBBER (UPPER) (SHOWA)

52489-399-601

$4.92

5

WASHER, PLAIN (10.3MM)

90527-230-000

$1.87

6

NUT, CAP (10MM)

94021-10020-0S

$1.99
