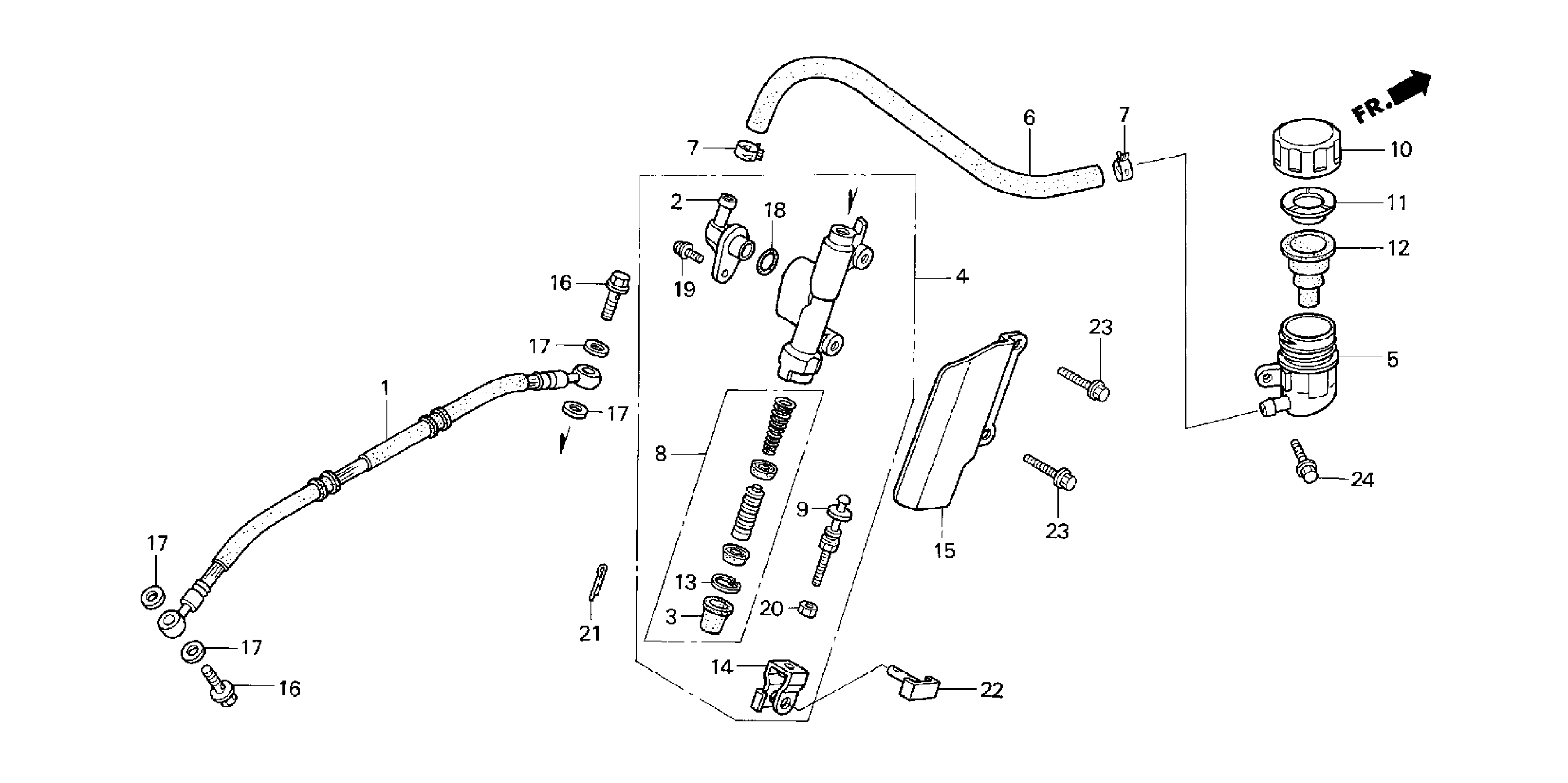

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 REAR BRAKE MASTER CYLINDER Diagram

HOSE, RR. BRAKE

43310-GCR-003

Unavailable

CONNECTOR

43503-MR7-006

$12.51

BOOT

43504-MB2-006

$9.01

M/CYL SUB-ASSY, RR. This part replaces 43510-GCR-006.

43510-GCR-016

Unavailable

CUP, MASTER CYLINDER OIL

43511-KS6-702

$23.26

HOSE, MASTER CYLINDER

43512-GCR-006

$5.78

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$40.74

ROD, PUSH

43530-MN4-006

Unavailable

CAP, MASTER CYLINDER

43513-KS6-701

$13.08

PLATE, DIAPHRAGM

45518-GM9-711

$4.16

DIAPHRAGM

45520-GM9-711

$8.22

CIRCLIP

46182-500-013

$4.46

JOINT, BRAKE ROD

46504-KV6-702

$7.30

GUARD, R. STEP

50607-GCR-000

Unavailable

BOLT, OIL (10X22)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

O-RING (14.8X2.4)

91212-422-006

Unavailable

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

NUT, HEX. (8MM)

94002-08000-0S

$1.19

PIN, SPLIT (2.0X15)

94201-20150

$0.94

PIN D, JOINT

95015-54000

$3.95

BOLT, FLANGE (6X20)

96001-06020-02

$1.19

BOLT, FLANGE (6X14)

96300-06014-00

$0.86
