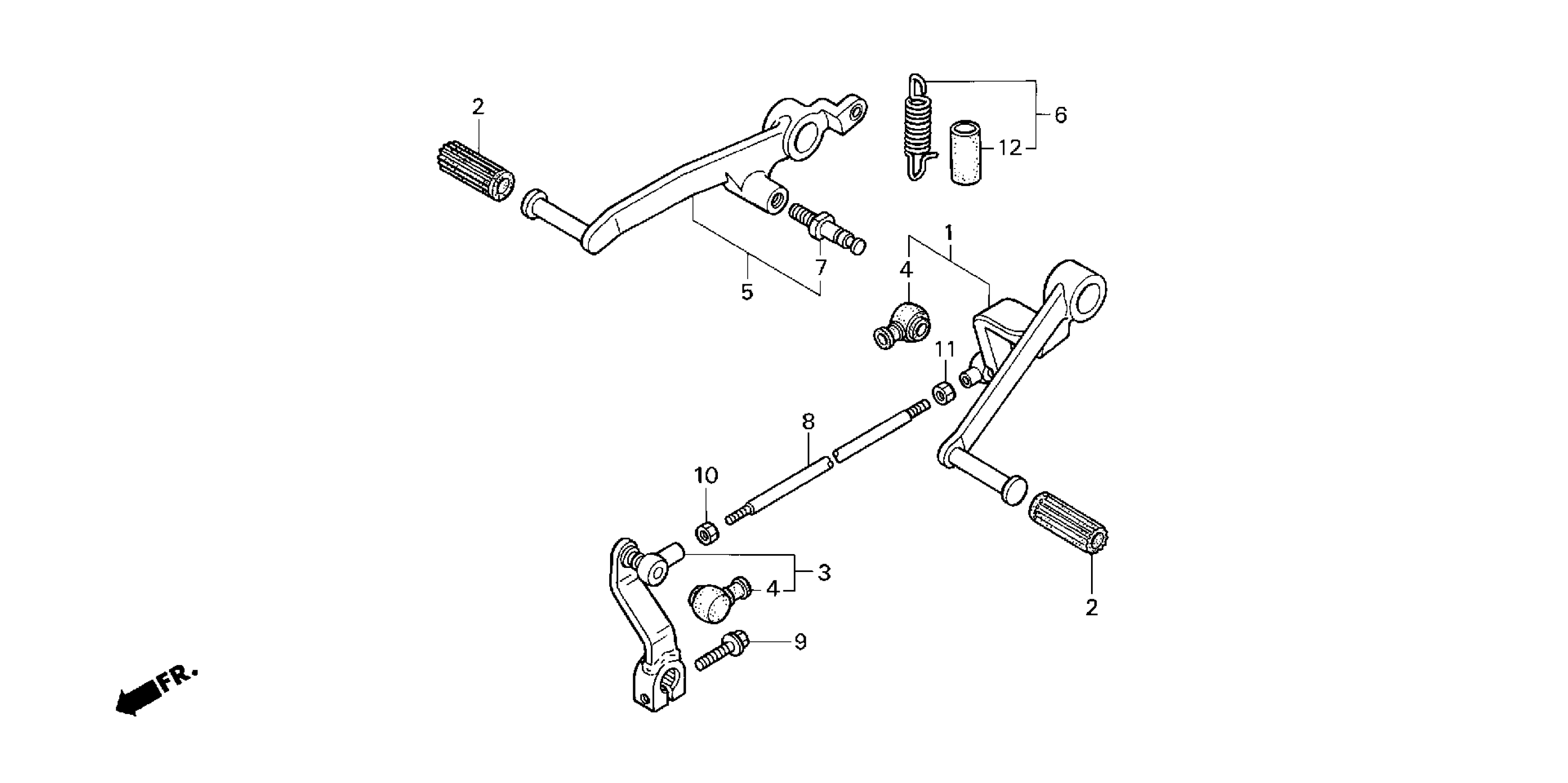

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24705-GCR-000

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24705-MR7-000

$3.51

3

ARM, GEARSHIFT

24721-GCR-000

Unavailable

4

COVER, DUST

24724-422-000

$6.21

5

PEDAL, BRAKE

46500-GCR-000

Unavailable

6

SPRING ASSY., BRAKE PEDAL RETURN

46515-KY2-700

Unavailable

7

HOOK, STOP SWITCH SPRING

46520-KY2-700

$5.83

8

BOLT, TIE ROD

90065-GCR-000

$3.51

9

BOLT, FLANGE (6X20)

90118-KY1-000

$2.88

10

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$0.70

11

NUT, HEX. (6MM)

94002-06000-0S

$1.19

12

BULK HOSE, VINYL (13X15X8000) (13X15X40)

95003-43008-10M

Unavailable
