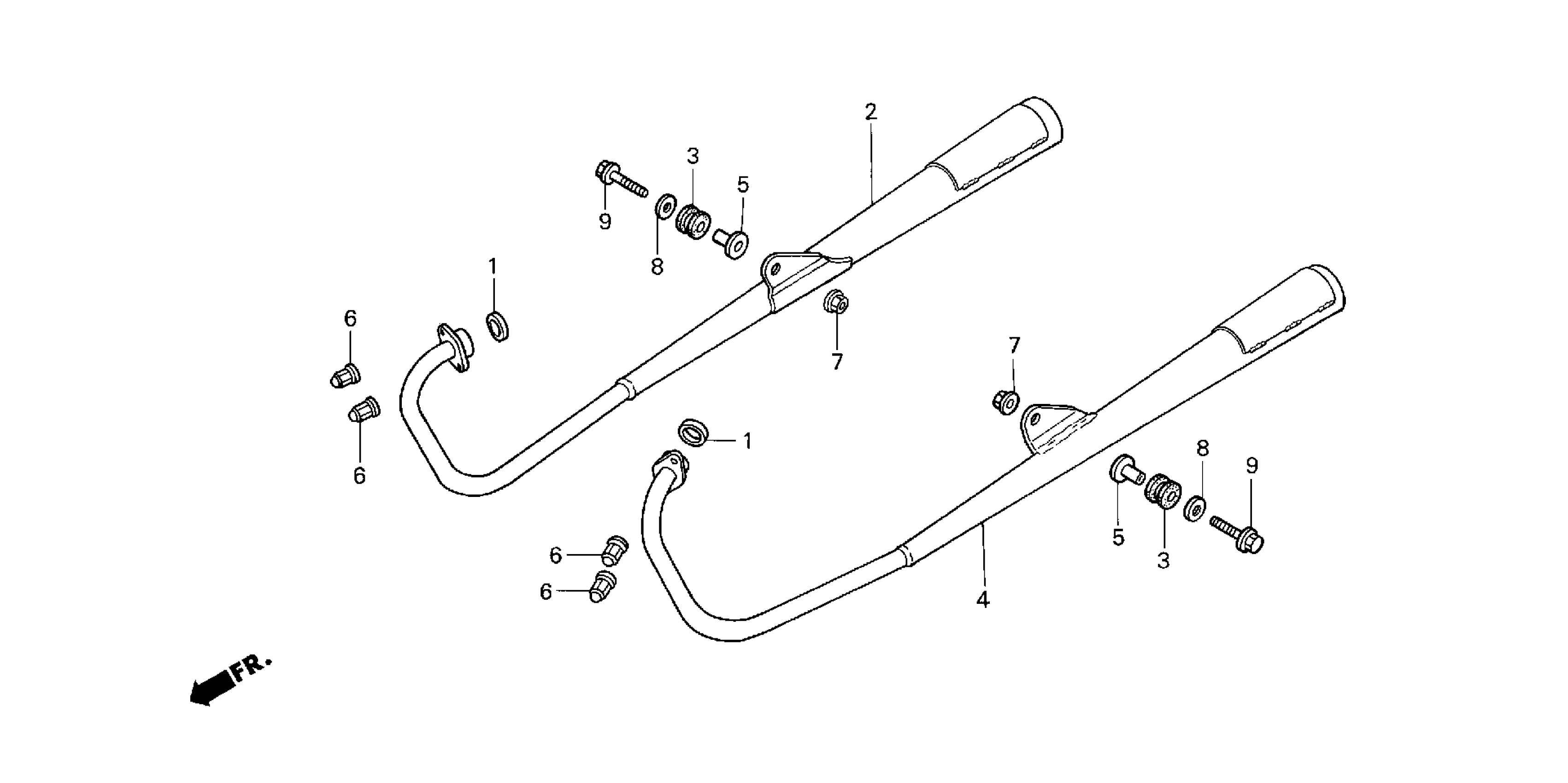

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-HB2-900

$3.48

2

MUFFLER, R. EX.

18300-NX1-670

Unavailable

3

RUBBER, RR. CHAMBER MOUNTING

18328-KAE-000

$2.06

4

MUFFLER, L. EX.

18400-NX1-670

Unavailable

5

COLLAR (8X15)

80101-KB7-000

$5.61

6

NUT, CAP (6MM)

90304-438-000

$6.64

7

NUT, FLANGE (8MM)

94050-08000

$0.86

8

WASHER, PLAIN (8MM)

94103-08000

$0.59

9

BOLT, FLANGE (8X30)

96300-08030-00

$0.99
