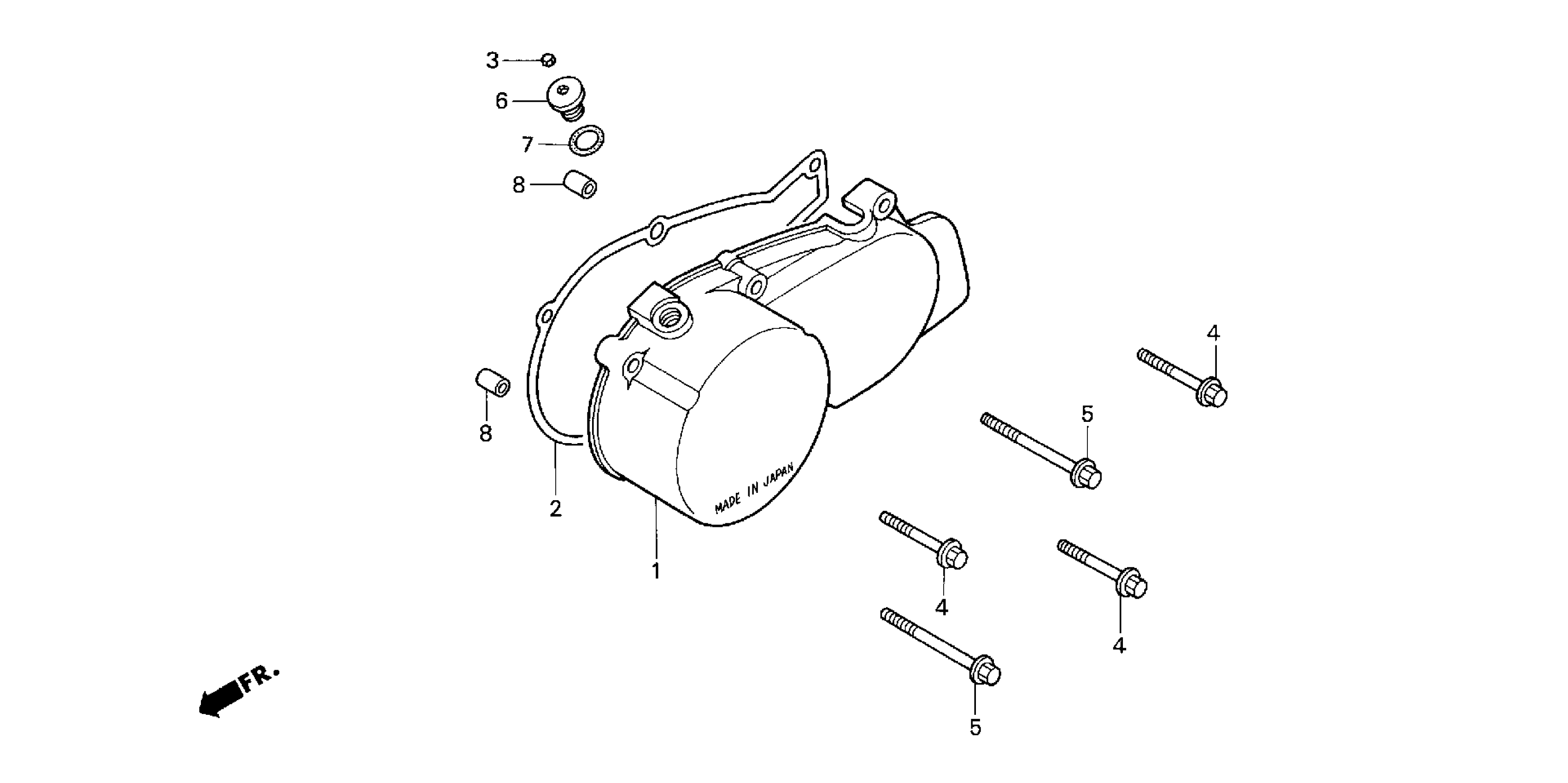

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 LEFT CRANKCASE COVER Diagram

#

Description

Price

1

COVER, L. CRANKCASE

11341-NX1-670

Unavailable

2

GASKET, L. CRANKCASE COVER

11394-GCR-000

Unavailable

3

PLUG, HEX. (6MM)

12392-MJ0-000

$4.31

4

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$3.89

5

BOLT, FLANGE (6X45) (NSHF)

90004-GHB-720

$4.02

6

CAP (14MM)

90084-KY2-000

$14.66

7

O-RING (13.8X2.5)

91303-377-000

$3.26

8

PIN, DOWEL (8X14)

94301-08140

$2.76
