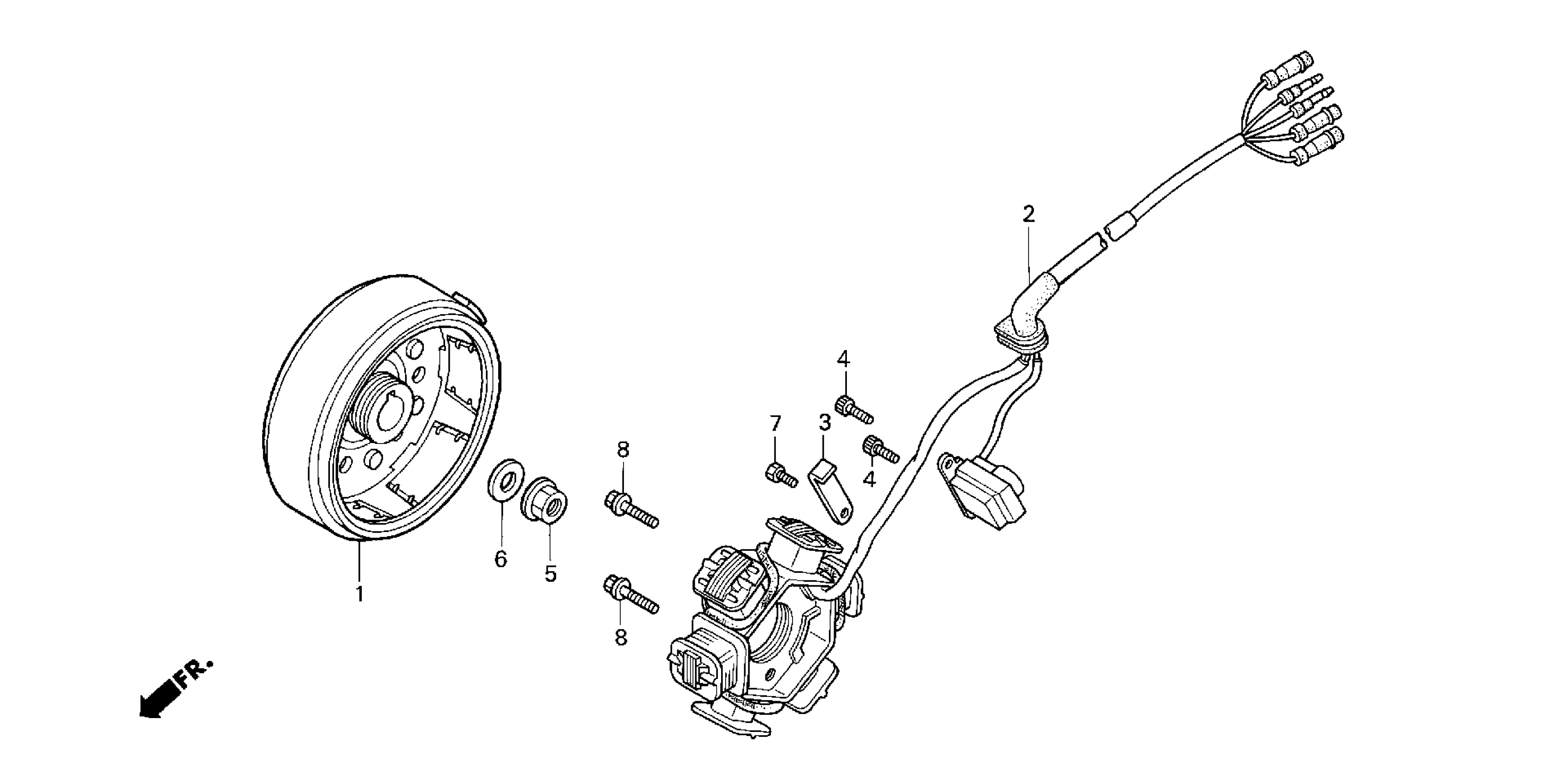

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 GENERATOR Diagram

#

Description

Price

1

FLYWHEEL

31110-NX1-003

Unavailable

2

STATOR

31120-NX1-003

Unavailable

3

CLAMP, ALTERNATOR WIRE

31141-141-860

$1.68

4

SET (SOCKET5X10) This part replaces 90089-GT9-000.

90089-GT9-305

$2.93

5

NUT, FLANGE (12MM)

90309-375-003

$7.93

6

WASHER, SPECIAL (24X12X2.3)

90439-SB2-010

$13.41

7

BOLT, HEX. (5X12)

93301-05012-0A

$0.87

8

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
