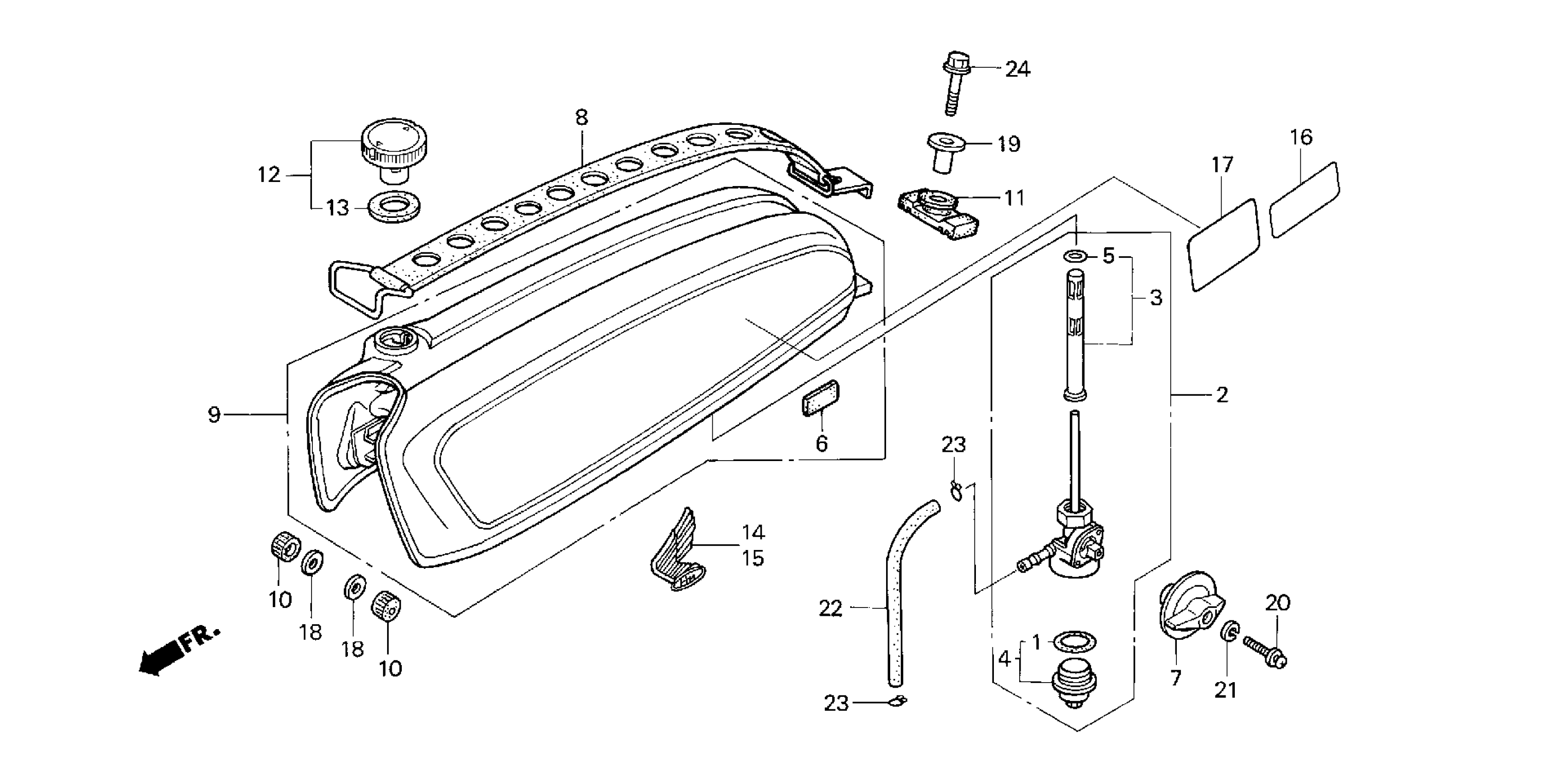

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 FUEL TANK Diagram

#

Description
Price

1

GASKET, FUEL STRAINER CUP

16173-001-004

$4.81

2

PETCOCK ASSY.

16950-GCR-000

Unavailable

3

SCREEN SET, FUEL STRAINER

16952-GT4-305

Unavailable

4

CUP SET, FUEL STRAINER

16953-GT4-305

$22.01

5

O-RING

16958-397-771

$4.93

6

GUARD, FUEL TANK

17506-GCK-300

Unavailable

7

LEVER, FUEL PETCOCK

17512-GT4-710

Unavailable

8

RUBBER, FUEL TANK

17519-GCR-000

Unavailable

9

TANK SUB-ASSY., FUEL *NH132M* (MAX SILVER METALLIC)

17520-NX1-000

Unavailable

10

RUBBER, FR. FUEL TANK

17611-KE8-000

$3.92

11

CUSHION, RR. FUEL TANK

17613-KE1-000

Unavailable

12

CAP,FUEL FILLER This part replaces 17620-GA7-023.

17620-KEV-901

$17.16

13

GASKET This part replaces 17631-096-701.

17631-096-702

$2.36

14

MARK, R. FUEL TANK

87121-GCR-300ZA

Unavailable

15

MARK, L. FUEL TANK

87122-GCR-300ZA

Unavailable

16

MARK, CAUTION (NOT AVAILABLE)

87208-NC2-000

Unavailable

17

LABEL, CAUTION

87560-357-671

$8.39

18

WASHER (10.2X32X1.6)

90451-GK4-760

$2.35

19

COLLAR, FUEL TANK MOUNT

90502-460-680

$4.86

20

SCREW, PAN (4X8)

93500-04008-0G

$0.83

21

WASHER, SPRING (4MM)

94111-04700

Unavailable

22

BULK HOSE, FUEL (4.5X3000) (4.5X100)

95001-45003-50M

$58.45

23

CLIP, TUBE (B8)

95002-02080

$1.59

24

BOLT, FLANGE (8X30)

96300-08030-00

$0.99
