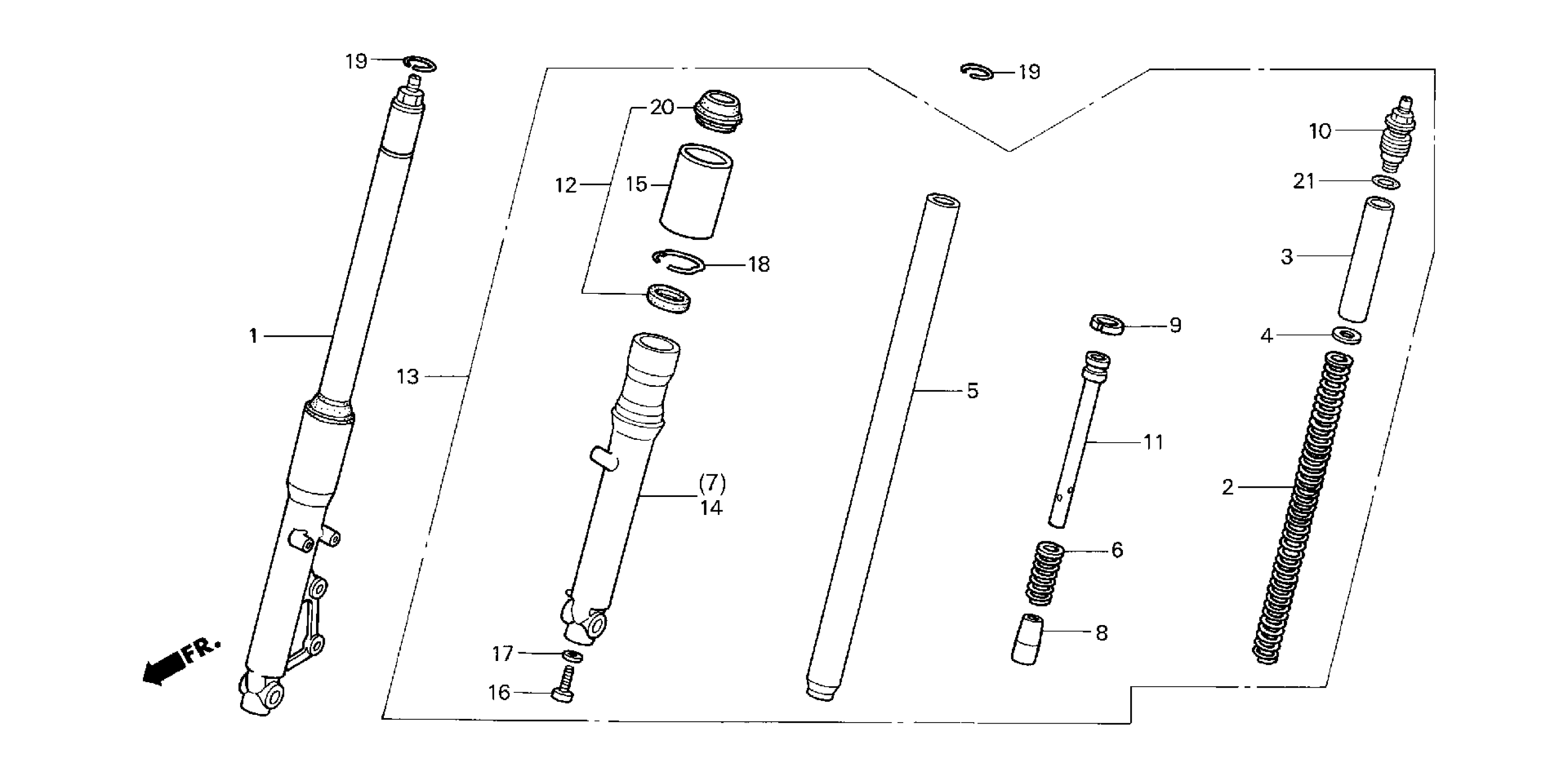

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR.

51400-NX1-003

Unavailable

2

SPRING, FR. FORK (K=0.6) | (Optional).

51401-NX1-003

Unavailable

2

SPRING, FR. FORK (K=0.55)

51403-NX1-003

Unavailable

3

COLLAR, SPRING

51402-NX1-003

Unavailable

4

JOINT, FR. FORK SPRING

51403-GF4-003

Unavailable

5

PIPE, FR. FORK

51410-NX1-003

Unavailable

6

SPRING, REBOUND

51412-383-721

$6.57

7

CASE, R. FR. (LOWER) *NH1* (BLACK)

51420-GCR-003ZB

Unavailable

8

PIECE, OIL LOCK

51432-GCR-003

Unavailable

9

RING, PISTON

51437-GM0-003

$5.07

10

BOLT, FR. FORK

51450-NX1-003

Unavailable

11

PIPE, SEAT

51470-NX1-003

Unavailable

12

SEAL SET, FR. FORK (SHOWA)

51490-GZ0-305

$23.38

13

FORK ASSY., L. FR.

51500-NX1-003

Unavailable

14

CASE, L. FR. (LOWER) *NH1* (BLACK)

51520-GCR-003ZB

Unavailable

15

COVER, BOOT CASE

51611-GCR-003

$21.02

16

BOLT, SOCKET (8X27)

90116-383-721

$5.13

17

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

18

RING, OIL SEAL STOPPER (SHOWA)

90601-383-721

$5.13

19

RING, STOPPER

90602-GCR-000

$2.00

20

DUST SEAL (SHOWA)

91254-GN1-013

$13.86

21

O-RING (17.8X2.4) (SHOWA)

91256-383-721

$2.30
