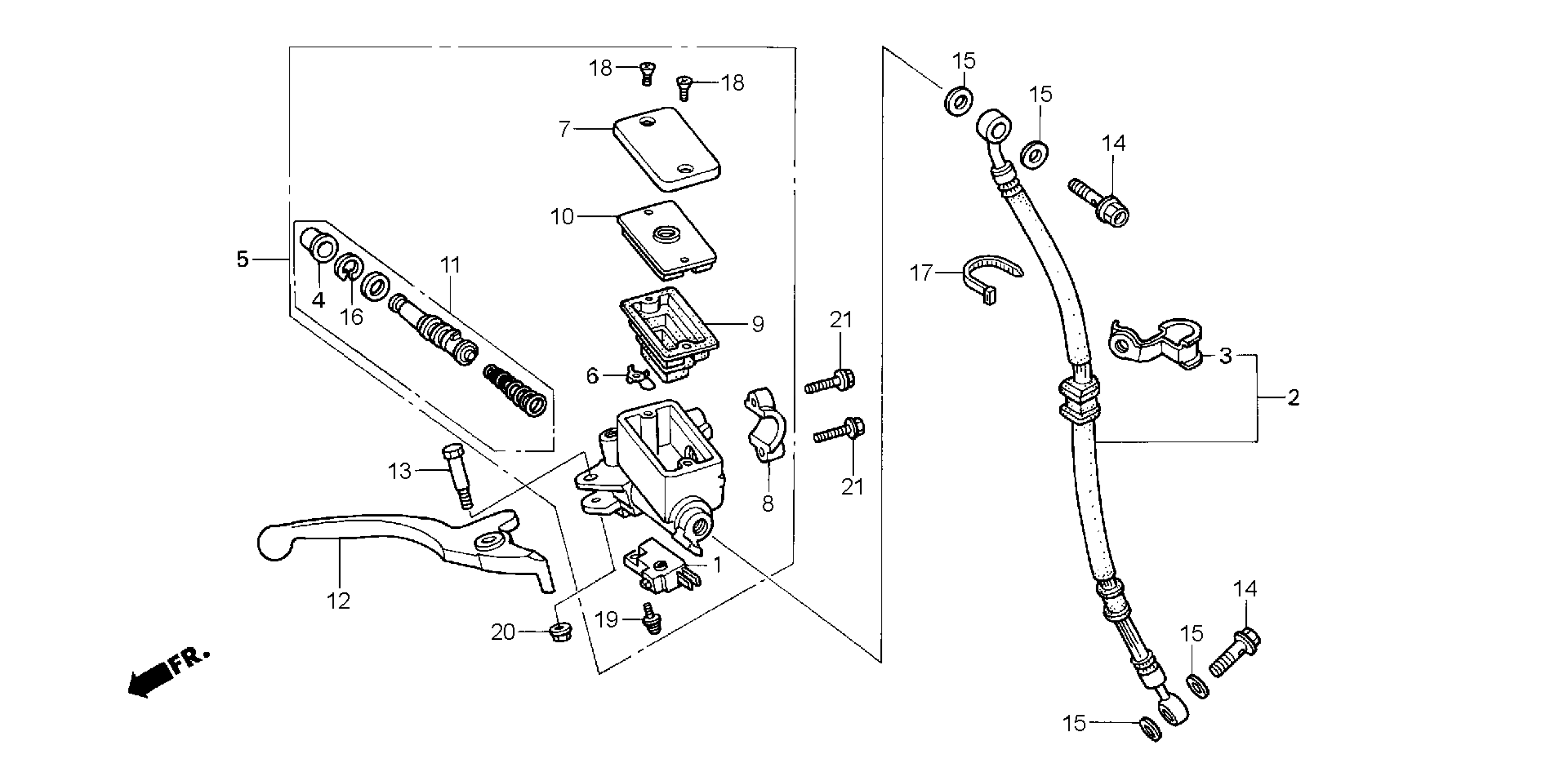

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

HOSE, FR. BRAKE

45126-GCR-003

Unavailable

CLAMP, BRAKE HOSE

45156-GCR-000

$4.49

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE

45510-NX1-650

Unavailable

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

MASTER CYLINDER SET

45530-MN9-305

$50.74

LEVER, R. HANDLEBAR

53175-GW2-013

$22.38

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.51

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
