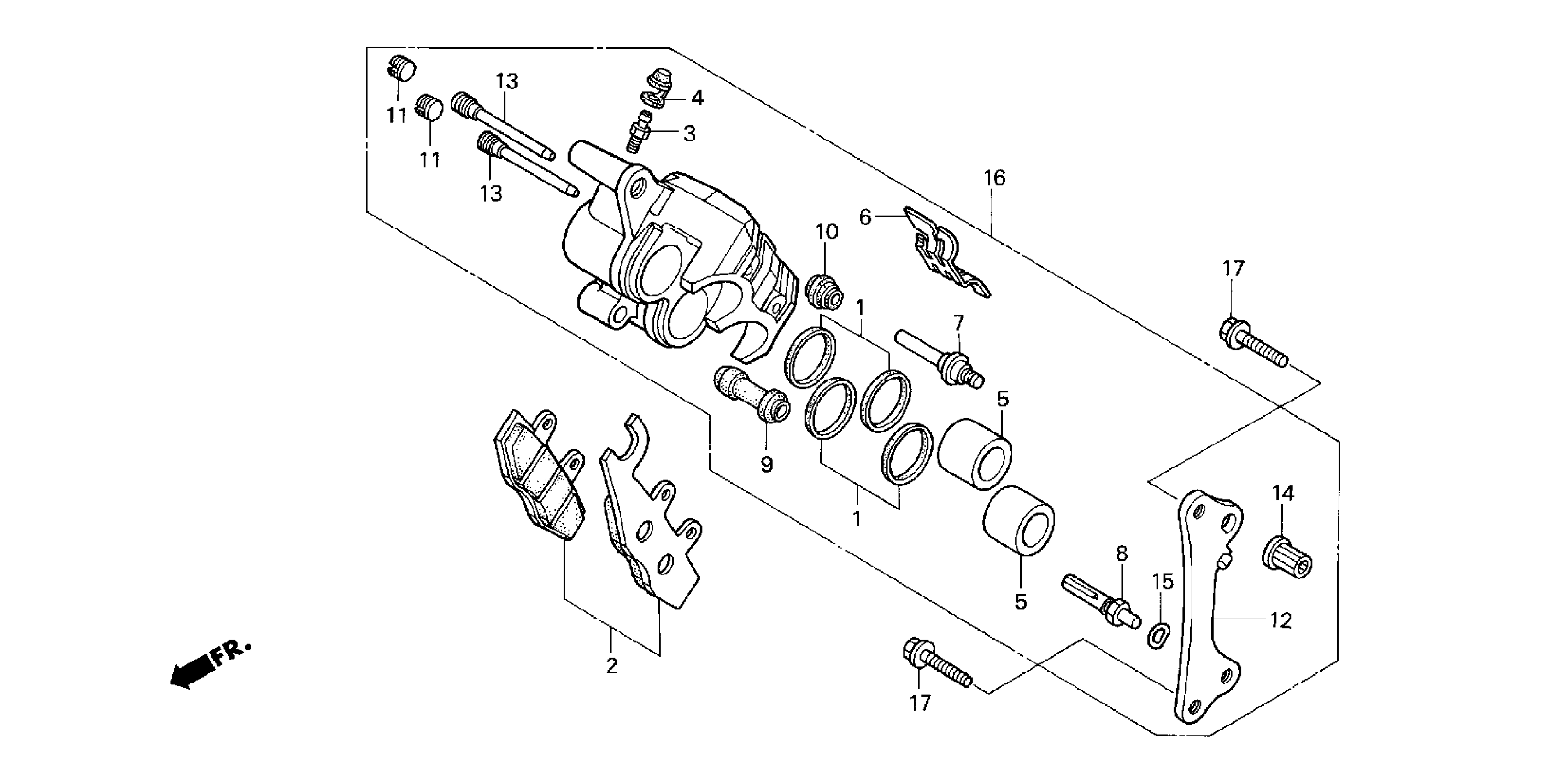

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 FRONT BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06451-GE2-405

$10.47

PAD SET, FR.

06455-GCR-016

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON

45107-MN5-006

$34.77

SPRING, PAD

45108-ML4-006

$10.01

PIN A, BOLT

45131-GE2-006

$5.90

BOLT, PIN

45131-GZ0-006

$8.21

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

PLUG, PIN

45203-MG3-016

$4.88

BRACKET, R. FR.

45210-GCR-006

$14.51

PIN, HANGER

45215-KA3-732

$10.56

NUT, TORQUE

45216-KW6-901

$10.54

WASHER, WAVE

45216-166-006

$2.16

CALIPER SUB-ASSY., R. FR. BRAKE

45250-GCR-006

Unavailable

BOLT, FLANGE (8X25)

90131-GAA-000

$5.90
