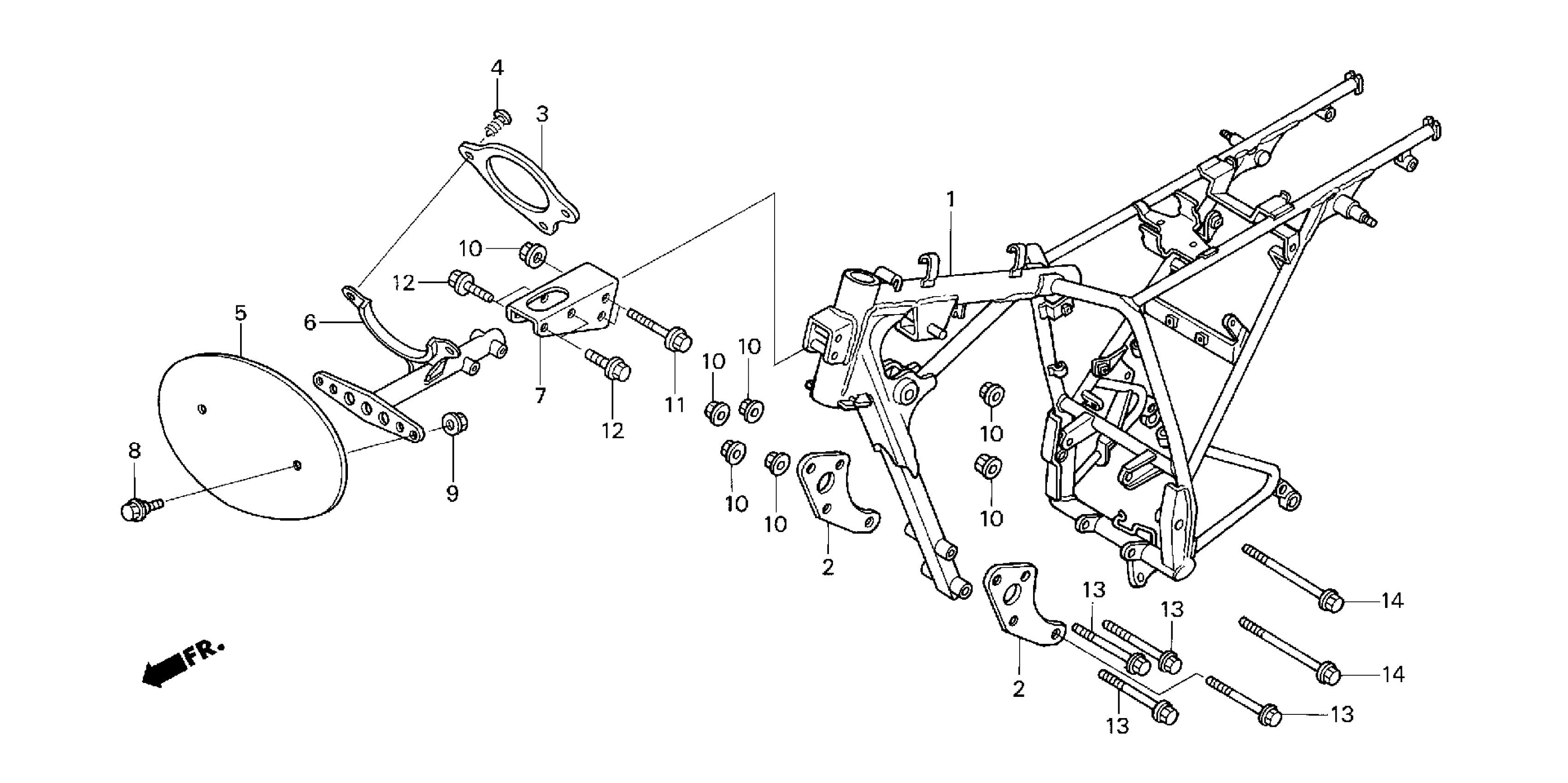

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 FRAME Diagram

#

Description
Price

1

FRAME *NH1* (BLACK)

50100-NX1-010

Unavailable

2

HANGER, FR. ENGINE *NH1* (BLACK)

50127-GCR-000ZB

Unavailable

3

PANEL, METER

50815-NX1-000

Unavailable

4

CLIP, XMAS TREE

50816-NX4-000

Unavailable

5

PLATE, FR. NUMBER

61136-NX1-000

Unavailable

6

STAY, FR. NO. PLATE

64150-NX1-000

Unavailable

7

BRACKET, FR. NO. PLATE

64221-NX1-000

Unavailable

8

BOLT, FLANGE (6MM)

90111-GJ5-000

$4.05

9

NUT, FLANGE (6MM)

94050-06000

$0.60

10

NUT, FLANGE (8MM)

94050-08000

$0.87

11

BOLT, FLANGE (8X45)

95701-08045-00

$1.35

12

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable

13

BOLT, FLANGE (8X60)

96300-08060-00

$2.85

14

BOLT, FLANGE (8X95)

96300-08095-00

Unavailable
