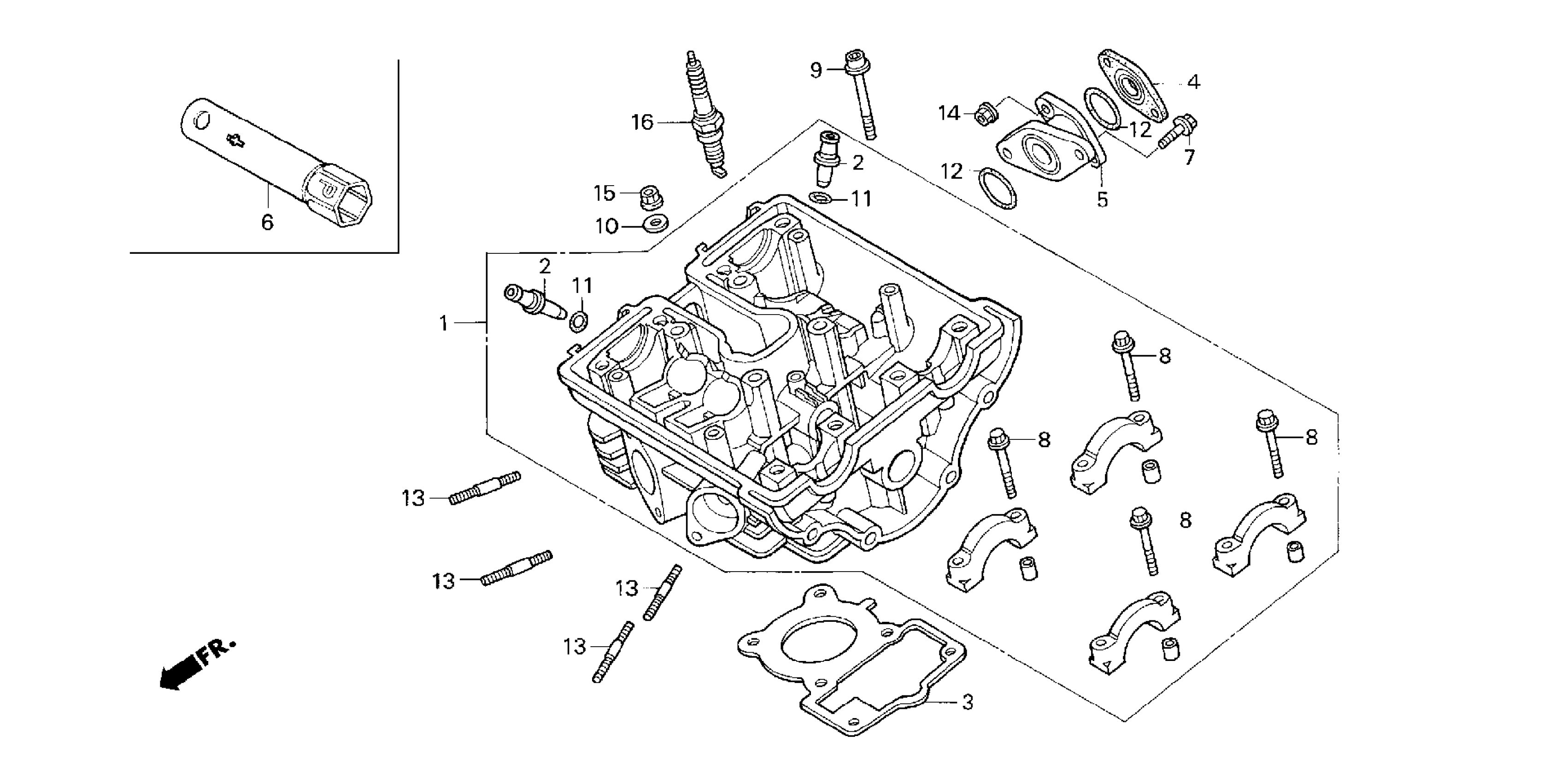

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY.

12010-GCR-000

Unavailable

2

GUIDE, VALVE (O.S)

12237-GCR-305

Unavailable

3

GASKET, CYLINDER HEAD

12251-GCR-003

Unavailable

4

INSULATOR, CARBURETOR

16211-NX1-000

Unavailable

5

PIPE, INLET

17111-NX1-000

Unavailable

6

WRENCH, SPARK PLUG

89216-130-690

$6.65

7

BOLT, FLANGE (6X18) (NSHF)

90004-GHB-640

$2.67

8

BOLT, FLANGE (6X35)

90004-KN7-671

$4.03

9

BOLT, SOCKET (6X40)

90007-KN8-730

$4.28

9

BOLT, SOCKET (6X40) This part replaces 90093-KL8-000.

90007-KN8-730

$4.28

10

WASHER, PLAIN (8MM)

90501-MK4-600

$3.55

11

O-RING (7.5X1.4)

91301-GCR-003

Unavailable

12

O-RING (25X2.4) This part replaces 91304-GB1-900.

91307-PE0-010

$3.18

12

O-RING (25X2.4)

91307-PE0-010

$3.18

13

BOLT 2, STUD (6X18)

92900-06018-0E

$2.30

14

NUT, FLANGE (6MM)

94050-06000

$0.59

15

NUT, FLANGE (8MM)

94050-08000

$0.86

16

SPARK PLUG (IMR9A-9H) (NGK) | (Optional).

98059-5991U

$15.46

16

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$6.79

16

SPARK PLUG (CR9EH9) (NGK) | (Optional).

98059-59916

$6.79

16

SPARK PLUG (CR9EH9) (NGK)

98059-59916

$6.79

16

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$6.79
