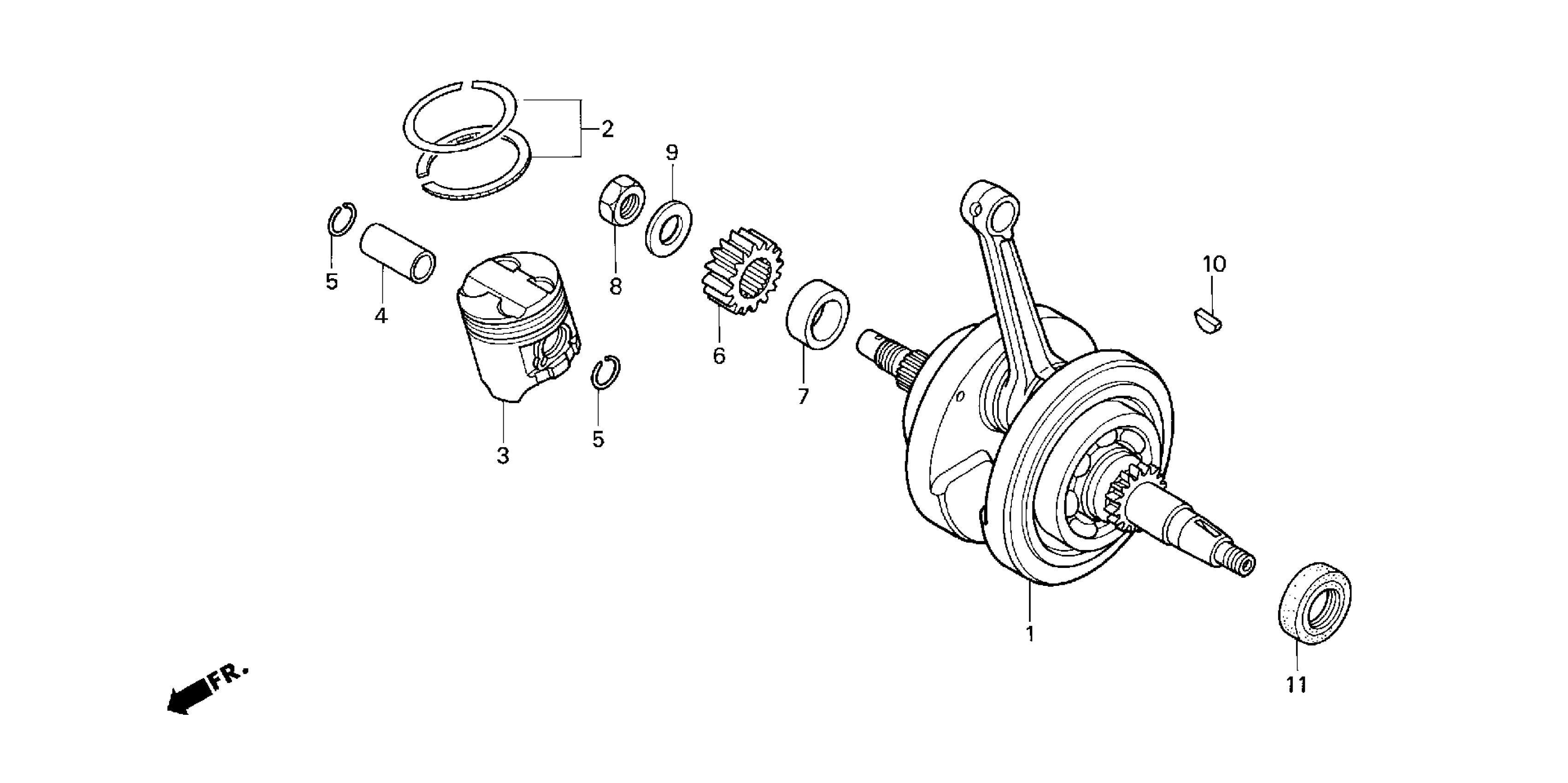

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT

13000-NX1-000

Unavailable

2

RING SET, PISTON (STD)

13011-GCR-305

Unavailable

3

PISTON

13101-NX1-000

Unavailable

4

PIN, PISTON

13111-GB2-000

$8.47

5

CLIP, PISTON PIN (13MM)

94601-13000

$0.50

6

GEAR, PRIMARY DRIVE (16T)

23121-149-000

Unavailable

7

COLLAR, PRIMARY DRIVE GEAR

23122-149-000

$8.49

8

NUT, SPECIAL (14MM)

90201-836-000

Unavailable

9

WASHER (14.2X23X2.6)

90408-MN5-000

$5.21

10

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.62

11

OIL SEAL (19.8X30X7) This part replaces 91201-GCR-003.

91201-KCW-851

$3.68
