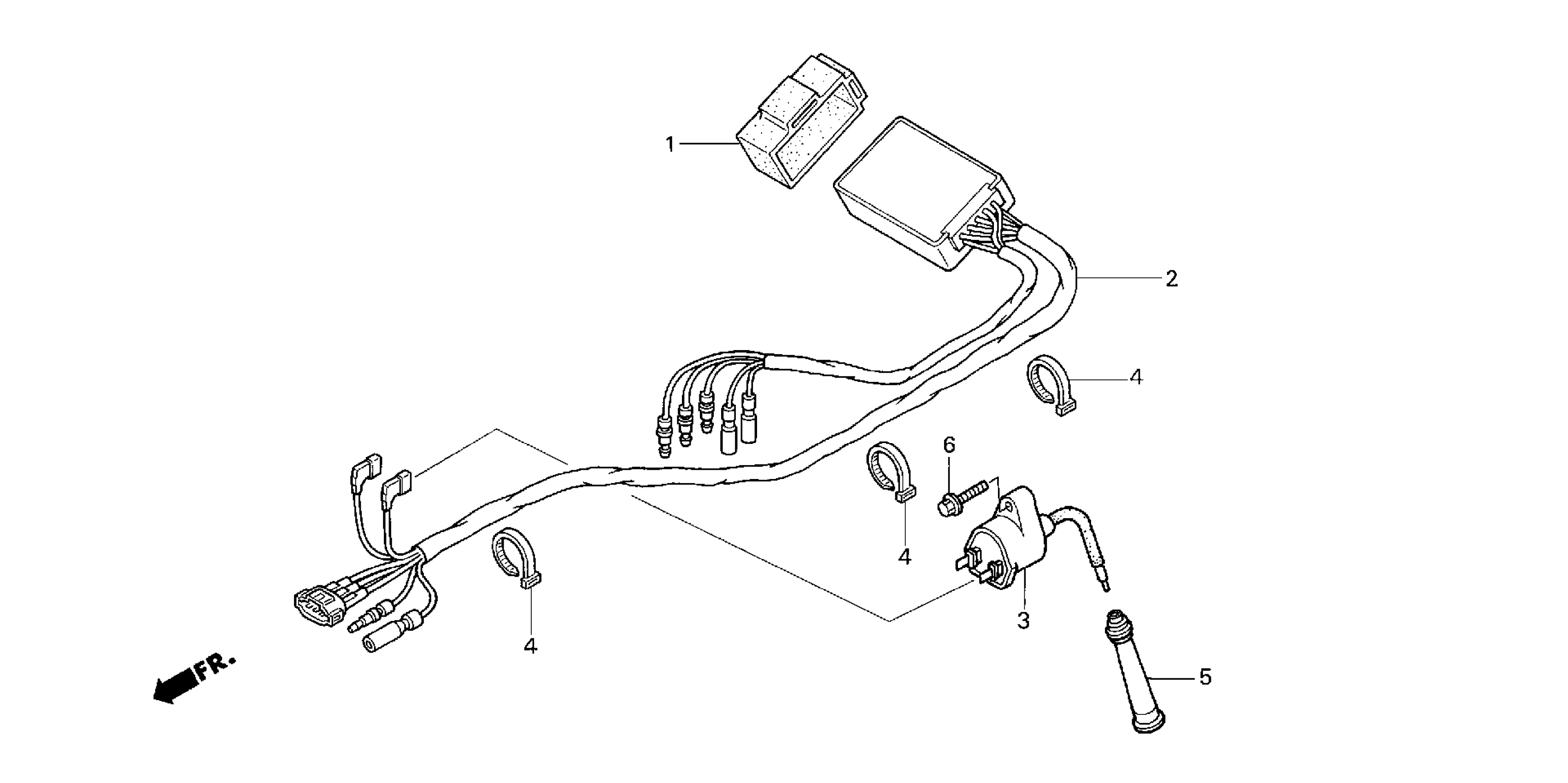

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 CDI UNIT + IGNITION COIL Diagram

#

Description

Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KK6-740

$3.82

2

MODULE, IGNITION CONTROL (CDI)

30400-NX1-008

Unavailable

3

COIL ASSY., IGNITION This part replaces 30510-KL8-740.

30510-GF9-405

$77.42

4

BAND

35701-MG9-950

$1.84

5

CAP ASSY. This part replaces 30700-KCZ-000.

30700-KCZ-003

$20.72

6

BOLT, FLANGE (5X20)

90197-MN5-000

$2.44
