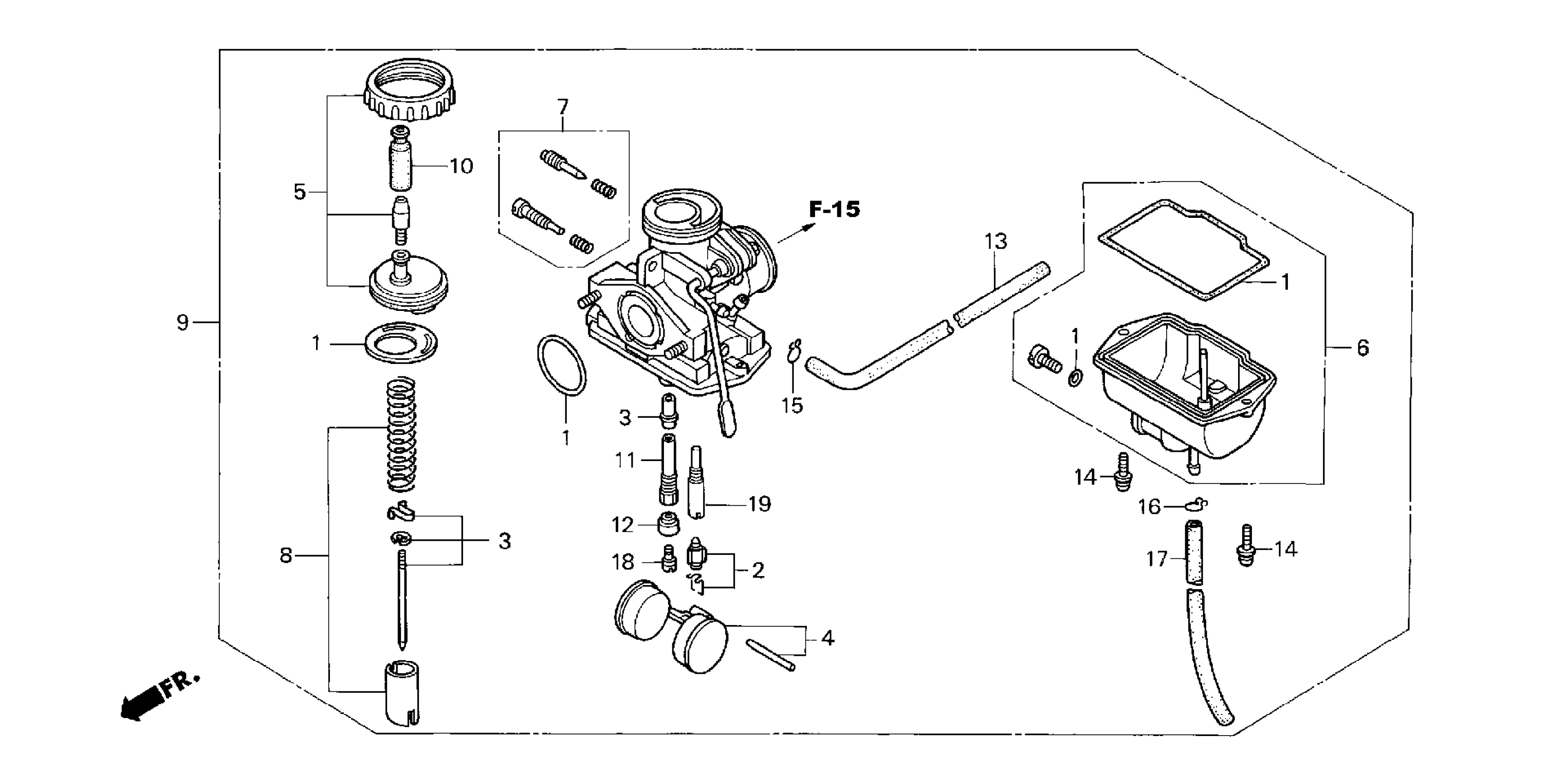

Honda CB50RA (04) DREAM 50R, JPN, VIN# AR02-1000206 TO AR02-1000655 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-GCR-000

$13.86

2

VALVE SET, FLOAT

16011-881-741

$24.85

3

NEEDLE SET, JET

16012-NX1-003

Unavailable

4

FLOAT SET

16013-107-810

$35.88

5

TOP SET

16014-065-004

$33.72

6

CHAMBER SET, FLOAT

16015-GN1-671

Unavailable

7

SCREW SET

16016-143-620

$24.01

8

VALVE SET, THROTTLE

16022-153-004

$51.10

9

CARBURETOR ASSY.

16100-NX1-013

Unavailable

10

CAP, CABLE SEALING This part replaces 16118-GHB-600.

16118-166-004

$8.08

11

HOLDER, NEEDLE JET

16165-NX1-003

Unavailable

12

HOLDER, JET

16168-355-700

$9.15

13

TUBE, AIR VENT

16199-GCR-010

Unavailable

14

SCREW-WASHER (4X12)

93892-04012-08

$1.49

15

CLIP, TUBE (B7)

95002-02079

$1.49

16

CLIP, TUBE (B6.5)

95002-02659

$1.49

17

BULK HOSE, VACUUM (3.5X1000) (3.5X350)

95005-35001-50M

$13.72

18

JET, MAIN (#102) | (Optional). This part replaces 99101-116-1020.

99102-GHB-1020

$8.11

18

JET,#105 This part replaces 99101-116-1050.

99102-GHB-1050

$7.43

18

JET,#108 | (Optional). This part replaces 99101-116-1080.

99102-GHB-1080

Unavailable

18

JET, MAIN (#102) | (Optional).

99102-GHB-1020

$8.11

19

JET, SLOW (#35)

99103-GN1-0350

$14.25
