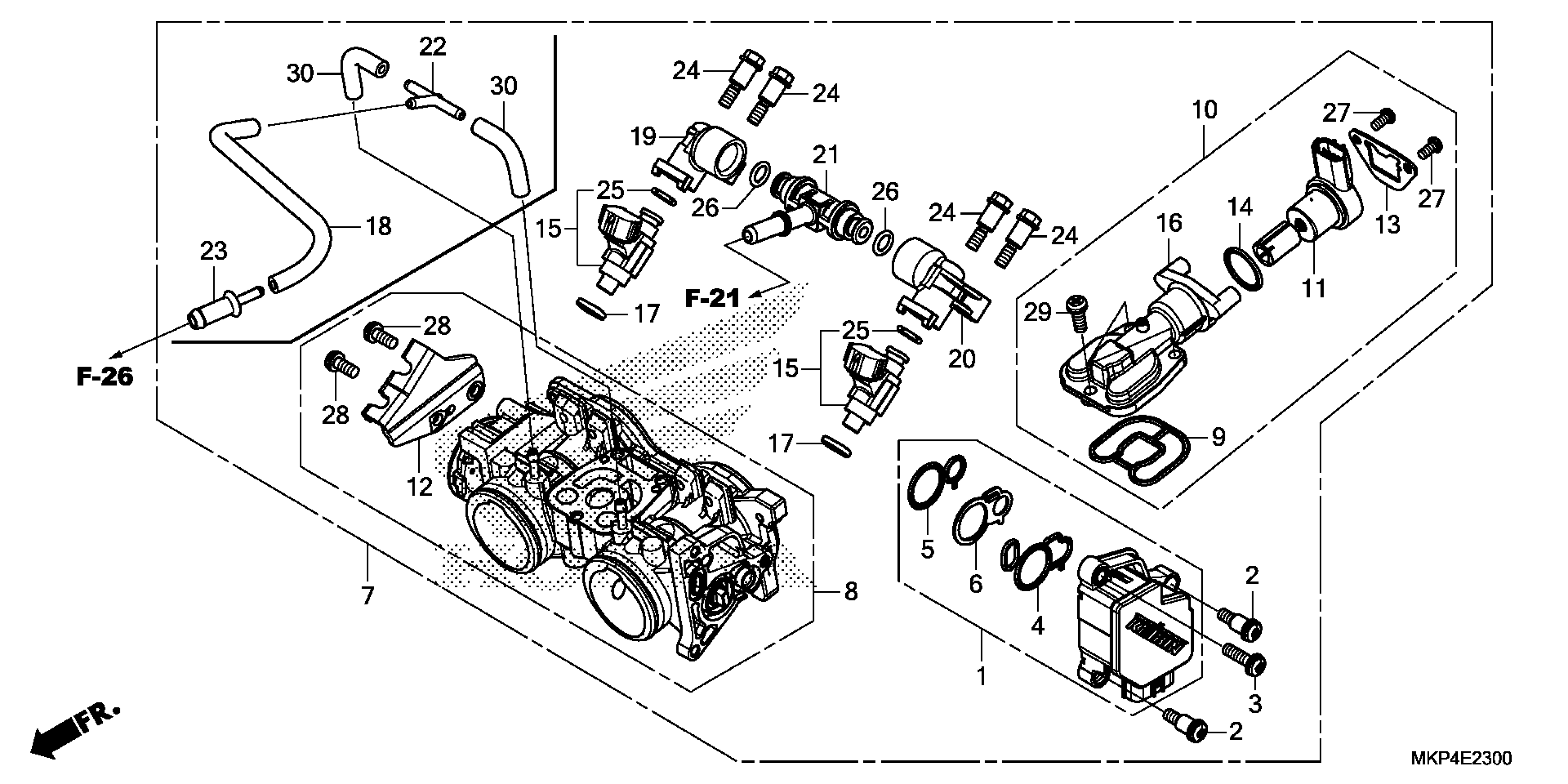

Honda CB500XAC (20) MOTORCYCLE, THA, VIN# MLHPC641-L5100001 TO MLHPC641-L5199999 THROTTLE BODY Diagram

#

Description
Price

1

SENSOR SET

16060-MKG-L01

$76.22

2

SCREW, TORX (5X8.7)

16081-KPH-701

$2.89

3

SCREW, TORX (5X17)

16082-KPH-701

$4.87

4

O-RING, SENSOR

16083-MGZ-D01

$2.41

5

O-RING, SENSOR

16084-MGZ-D01

$2.41

6

PLATE

16085-MGZ-D01

$2.24

7

BODY ASSY., THROTTLE (GQB7A A)

16400-MKP-T02

$686.46

8

BODY SET

16410-MKP-T01

$392.22

9

O-RING, AIR INJECTION CONTROL VALVE

16428-MGZ-D01

$22.57

10

VALVE SET, IDLE AIR CONTROL

16430-MJW-J01

$211.65

11

MOTOR ASSY.

16431-MJP-G51

$67.12

12

STAY, WIRE

16432-MGZ-D01

$35.96

13

PLATE, IDLE AIR CONTROL VALVE

16433-MEW-921

$9.56

14

O-RING (17.8X1.9)

16435-MFJ-D01

$2.81

15

INJECTOR ASSY., FUEL

16450-MKP-T02

$64.71

16

BODY, IDLE AIR CONTROL VALVE

16451-MGZ-D01

$160.78

17

SEAL RING, INJECTOR

16472-MKP-T00

$29.26

18

TUBE, PURGE

16482-MGZ-A01

$211.79

19

PIPE, FUEL (A)

16610-MKP-T01

$22.56

20

PIPE, FUEL (B)

16620-MKP-T01

$22.56

21

T-JOINT, FUEL

16630-MFJ-D00

$20.32

22

JOINT, VACUUM TUBE (A)

17201-MG9-000

$14.63

23

JOINT, TUBE

19126-KM1-010

$3.50

24

BOLT, SHOULDER

90021-MGZ-D02

$2.68

25

O-RING

91301-MKP-T01

$11.15

26

O-RING (7.47X3.6)

91301-PLC-000

$2.96

27

SCREW, PAN (4X8)

93500-04008-0H

$0.84

27

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$0.84

28

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.06

28

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.06

29

SCREW-WASHER (5X14)

93892-05014-08

$1.01

29

SCREW-WASHER (5X14) This part replaces 93892-05014-18.

93892-05014-08

$1.01

30

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$11.17
