Description

Price

1

CASE, DRIVE CHAIN

40510-MJW-J00

$21.96

2

CHAIN, DRIVE (DID520VF-120ZB) (DAIDO) (STANDARD LINK 108L)

40540-KYJ-902

$126.27

2

CHAIN, DRIVE (RK520KLO2-120LJFZ) (RK) (STANDARD LINK 110L)

40540-K87-A02

$83.11

3

MASTER LINK (RK)

40531-K87-A01

$17.72

3

MASTER LINK (DAIDO)

40545-KYJ-902

$12.98

4

COLLAR, RR. AXLE

42305-MKP-J00

$21.16

5

BOLT, SWINGARM PIVOT

52101-MGZ-J00

$15.16

6

COLLAR B, RR. SWINGARM PIVOT

52105-MJ0-000

$5.12

7

COLLAR, CENTER PIVOT DISTANCE

52141-MGZ-J00

$16.97

8

COLLAR, L. PIVOT DISTANCE

52143-MGZ-J00

$14.61

9

SLIDER, CHAIN

52170-MKP-J00

$11.39

10

WASHER, CHAIN SLIDER

52171-KR6-000

$2.35

11

SWINGARM SUB-ASSY., RR.

52200-MKP-J00

$288.36

12

COLLAR, CUSHION CONNECTING ROD

52463-MGZ-J00

$4.71

13

BOLT, HEX. (8X50)

90106-MCF-D00

$2.20

14

SCREW, SPECIAL (6X14)

90115-MGZ-J00

Unavailable

15

NUT, U (14MM) (FUJI SEIMITSU)

90305-KCJ-951

$5.35

16

NUT, HEX. (10MM)

90309-357-000

$3.16

17

BEARING, NEEDLE (KOYO)

91071-KV3-005

$22.18

18

BEARING, NEEDLE (NTN)

91071-MT7-003

$22.06

19

DUST SEAL (25X33X4)

91202-MAL-601

$6.48

20

DUST SEAL (22X35X7) (ARAI)

91213-MB2-003

$6.94

20

DUST SEAL (22X35X7) (ARAI) This part replaces 91213-MB2-006.

91213-MB2-003

$6.94

21

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.77

22

SCREW, TAPPING (5X12)

93901-25280

$0.83

23

CIRCLIP (INNER) (35MM)

94520-35000

$1.77

24

BEARING, RADIAL BALL (6202)

96100-62020-10

$13.02

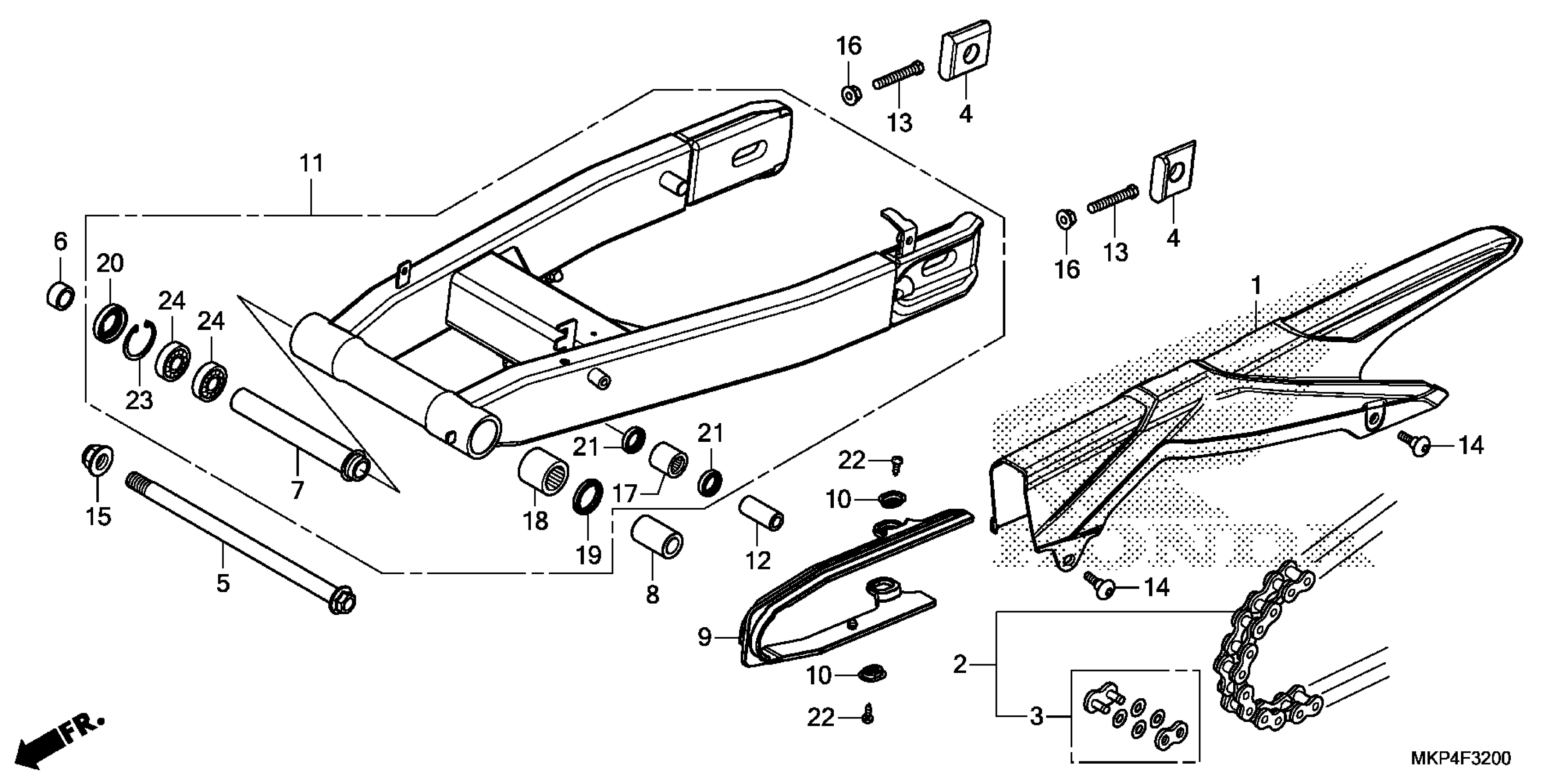

Honda CB500XAC (20) MOTORCYCLE, THA, VIN# MLHPC641-L5100001 TO MLHPC641-L5199999 SWINGARM (1) Diagram
