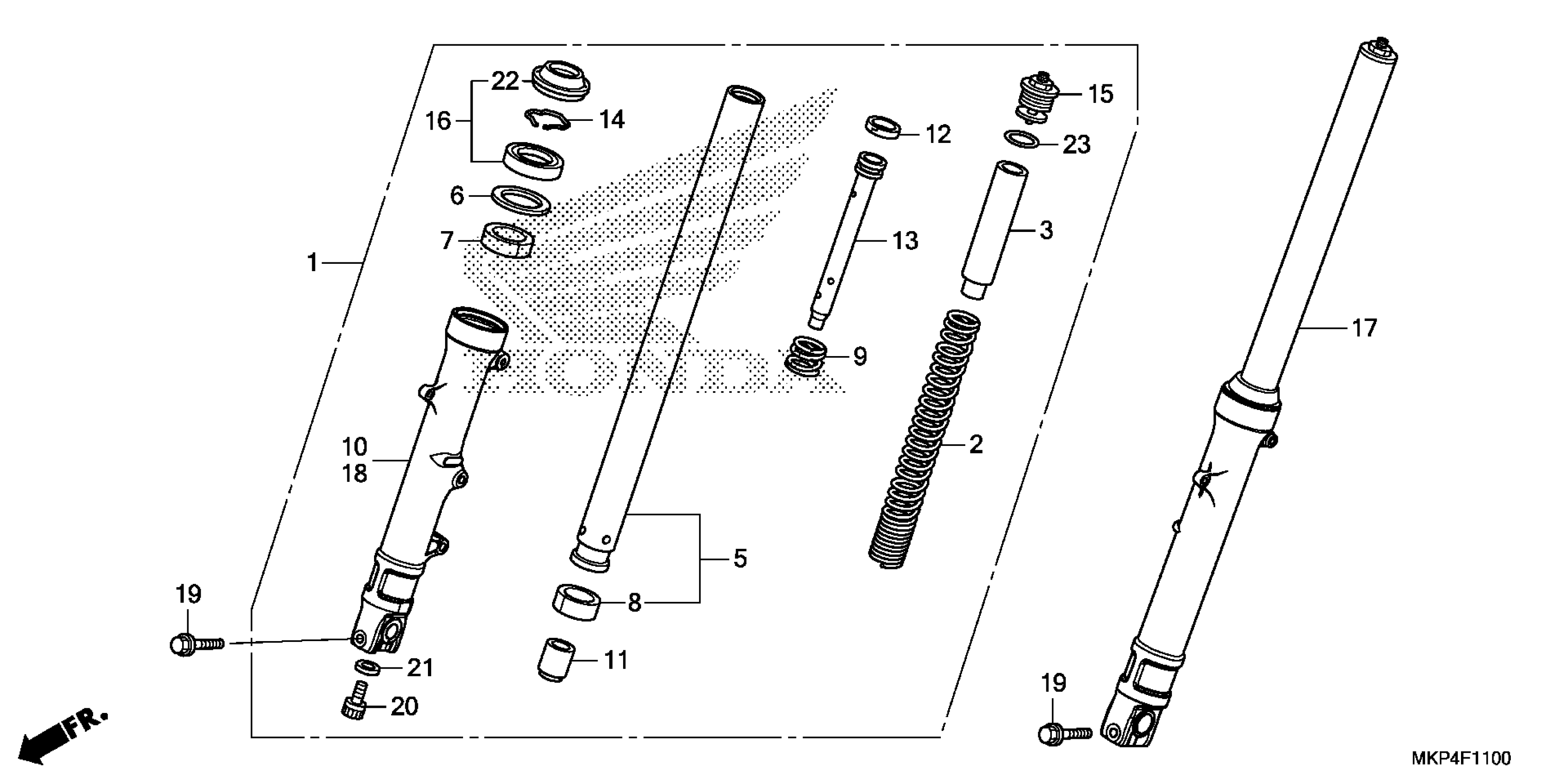

Honda CB500XAC (20) MOTORCYCLE, THA, VIN# MLHPC641-L5100001 TO MLHPC641-L5199999 FRONT FORK (1) Diagram

FORK ASSY., R. FR. (SHOWA)

51400-MKP-J81

$413.72

SPRING, FR. FORK

51401-MKP-J81

$36.34

COLLAR, SPRING

51402-MGZ-J01

$18.27

PIPE, FR. FORK

51410-MKP-J81

$72.15

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

BUSH, GUIDE

51414-MFJ-A51

$7.25

BUSH, SLIDER

51415-MFJ-A51

$7.25

SPRING, FR. REBOUND (SHOWA)

51416-KF0-003

$7.28

CASE, R. (LOWER)

51420-MKP-J81

$148.18

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$24.82

RING, PISTON

51437-KV3-701

$7.19

PIPE, SEAT

51440-MKP-J81

$11.44

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

BOLT ASSY., FR. FORK (SHOWA)

51450-MR8-003

$113.66

SEAL SET, FR. FORK

51490-MKL-D81

$25.13

FORK ASSY., L. FR. (SHOWA)

51500-MKP-J81

$407.56

CASE, L. (LOWER)

51520-MKP-J81

$148.56

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

DUST SEAL

91251-MKL-D81

$10.67

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.76
