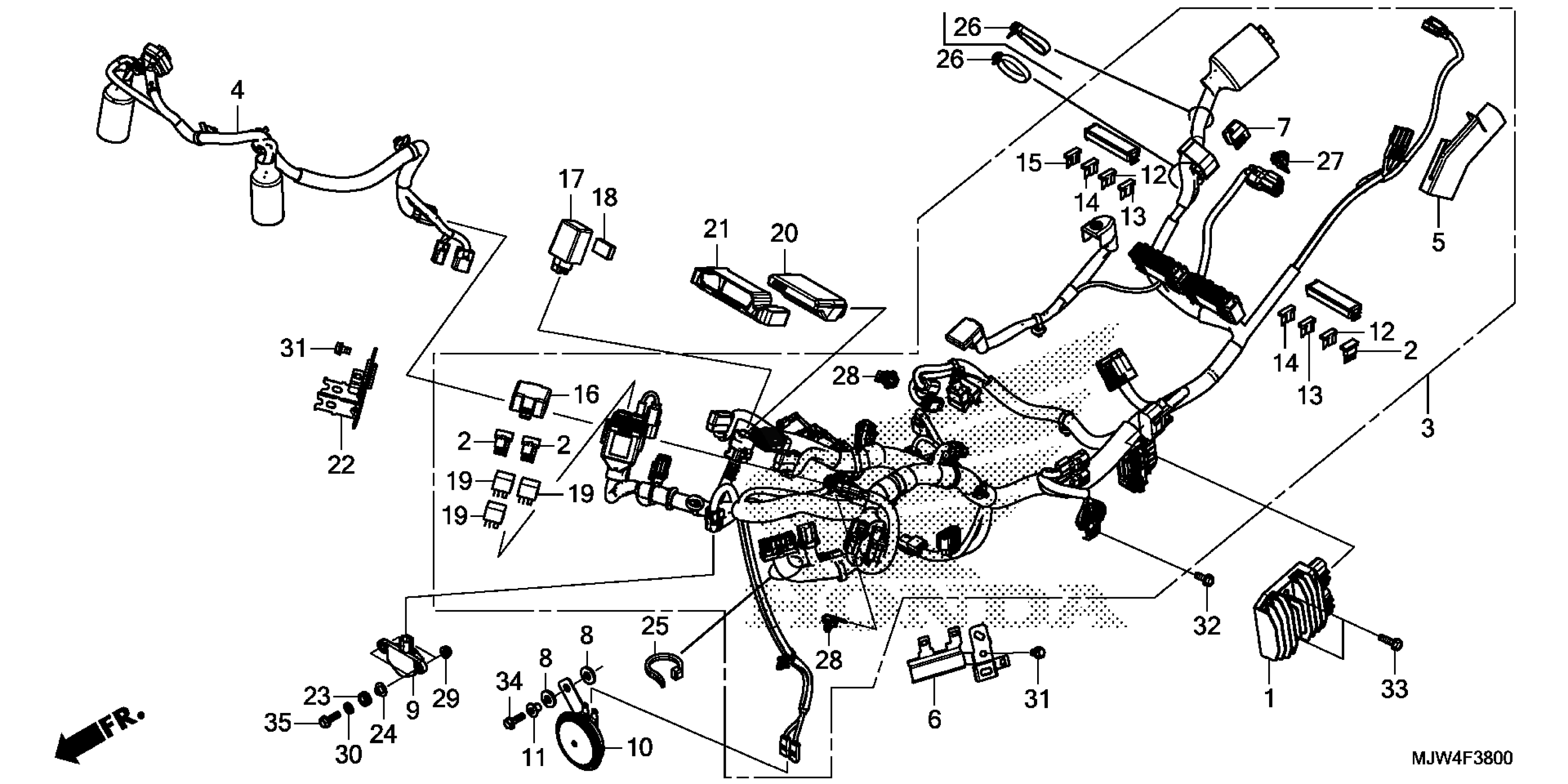

Honda CB500XAC (16) CB500X, THA, VIN# MLHPC461-G5300001 TO MLHPC461-G5399999 WIRE HARNESS Diagram

RECTIFIER ASSY., REGULATOR

31600-MGZ-J01

$193.01

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-MJW-A80

$850.75

SUB-HARNESS, FR.

32103-MJW-J80

$73.98

SUSPENSION, CONNECTOR

32109-MGZ-J41

$24.87

STAY, CONNECTOR

32206-MGZ-J00

$8.05

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.51

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$150.05

HORN (HIGH)

38110-KPP-T01

$36.07

COLLAR, HORN SETTING

38117-KFE-701

$1.49

FUSE, BLADE (7.5A)

38221-SNA-A31

$3.11

FUSE, BLADE (10A)

38221-SNA-A41

$3.11

FUSE, BLADE (15A)

38221-SNA-A51

$3.72

COVER, RELAY BOX

38281-MGZ-J01

$15.07

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MJE-D01.

38301-MJE-D02

$49.85

RELAY, TURN SIGNAL (MITSUBA)

38301-MJE-D02

$49.85

SUSPENSION, TURN SIGNAL RELAY

38306-MGZ-K00

$5.36

RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003.

38501-MKP-DN1

$4.80

PGM-FI UNIT

38770-MJW-A81

$313.95

CUSHION, PGM-FI UNIT

38774-MGZ-J00

$4.30

STAY, RELAY BOX

50194-MGZ-J00

$9.72

RUBBER, SIDE COVER

64535-MFJ-D00

$1.93

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.36

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67

NUT, FLANGE (6MM)

94050-06080

$1.49

WASHER, PLAIN (6MM)

94103-06800

$1.49

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

BOLT, FLANGE (6X22)

95701-06022-08

$1.72
