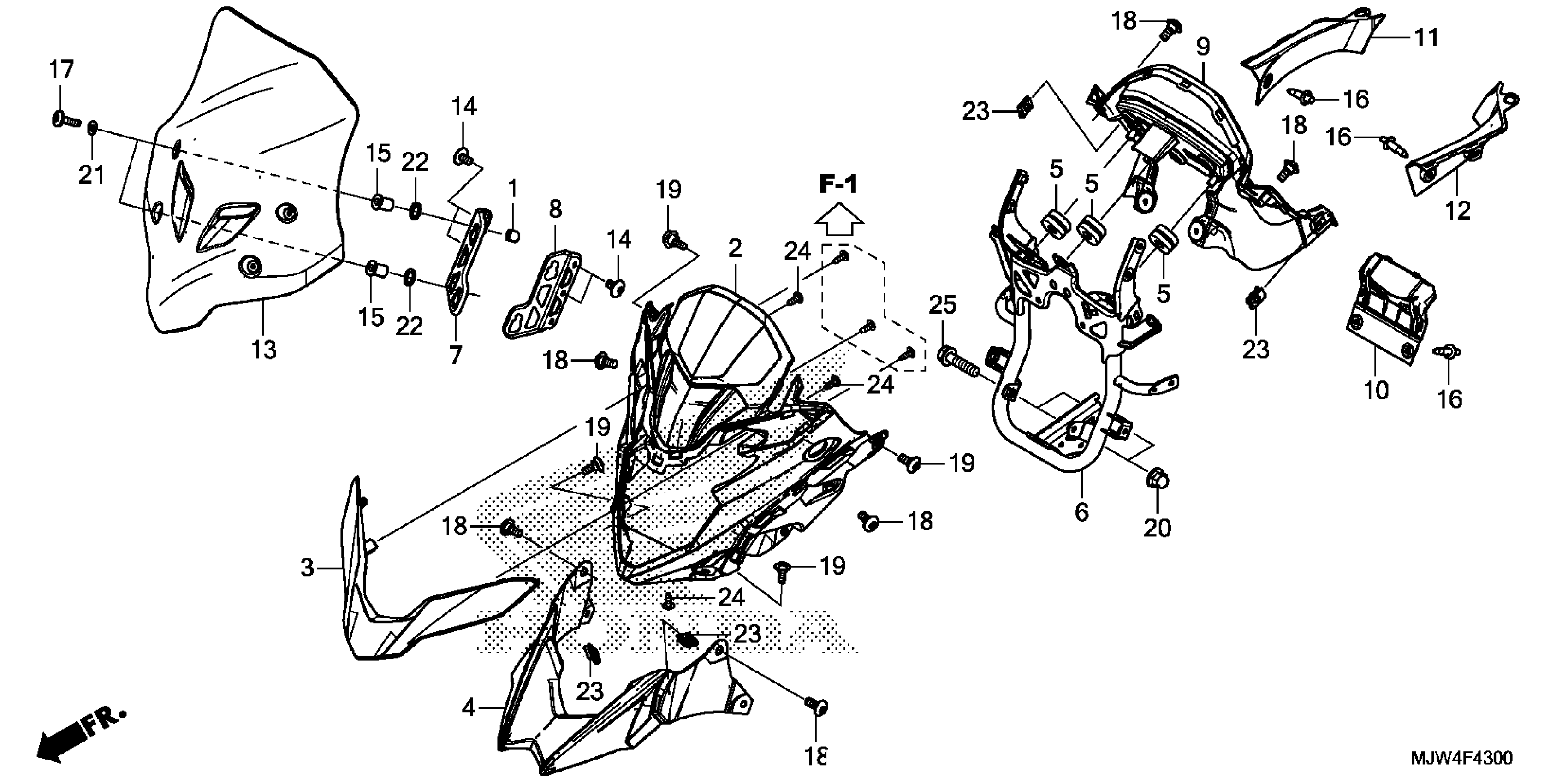

Honda CB500XAC (16) CB500X, THA, VIN# MLHPC461-G5300001 TO MLHPC461-G5399999 UPPER COVER@WINDSCREEN Diagram

RUBBER B, HEAD SIDE COVER

12372-KGB-610

$1.96

COVER A, FR. (UPPER)

64131-MJW-J80

$32.97

COVER B, FR. (UPPER) *NHA40M* (MAT KRYPTON SILVER METALLIC)

64141-MJW-J80ZA

$60.84

COVER, FR. (LOWER)

64151-MJW-J80

Unavailable

RUBBER, SCREEN SETTING

64216-GJ2-730

$4.28

STAY, FR. COWL (UPPER)

64221-MJW-J80

$77.28

STAY, R. SCREEN

64224-MJW-J80

$5.57

STAY, L. SCREEN

64234-MJW-J80

$5.57

PANEL, METER

64260-MGZ-J80

$8.63

LID, POSITION BULB

64261-MGZ-J80

$2.09

PANEL, R. (INNER)

64270-MGZ-J81

$2.62

PANEL, L. (INNER)

64280-MGZ-J81

$2.62

WINDSCREEN

67101-MJW-J80

$76.53

SCREW, PAN (6X10)

90106-GBB-710

$1.16

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.31

RIVET, PUSH

90116-MCS-G00

$1.28

SCREW, PAN (5X20)

90117-MGZ-J80

$0.84

SCREW, PAN (6X14)

90133-KPP-T00

Unavailable

SCREW, PAN (5X14)

90134-KPP-T00

Unavailable

NUT, CAP (8MM)

90443-KTM-970

$0.71

WASHER, THRUST (5MM)

90504-964-000

$1.75

WASHER, NYLON (9MM)

90507-ZV1-000

$1.85

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

SCREW, TAPPING (4X12)

93903-24380

Unavailable

BOLT, FLANGE (8X32)

95801-08032-00

$1.91
