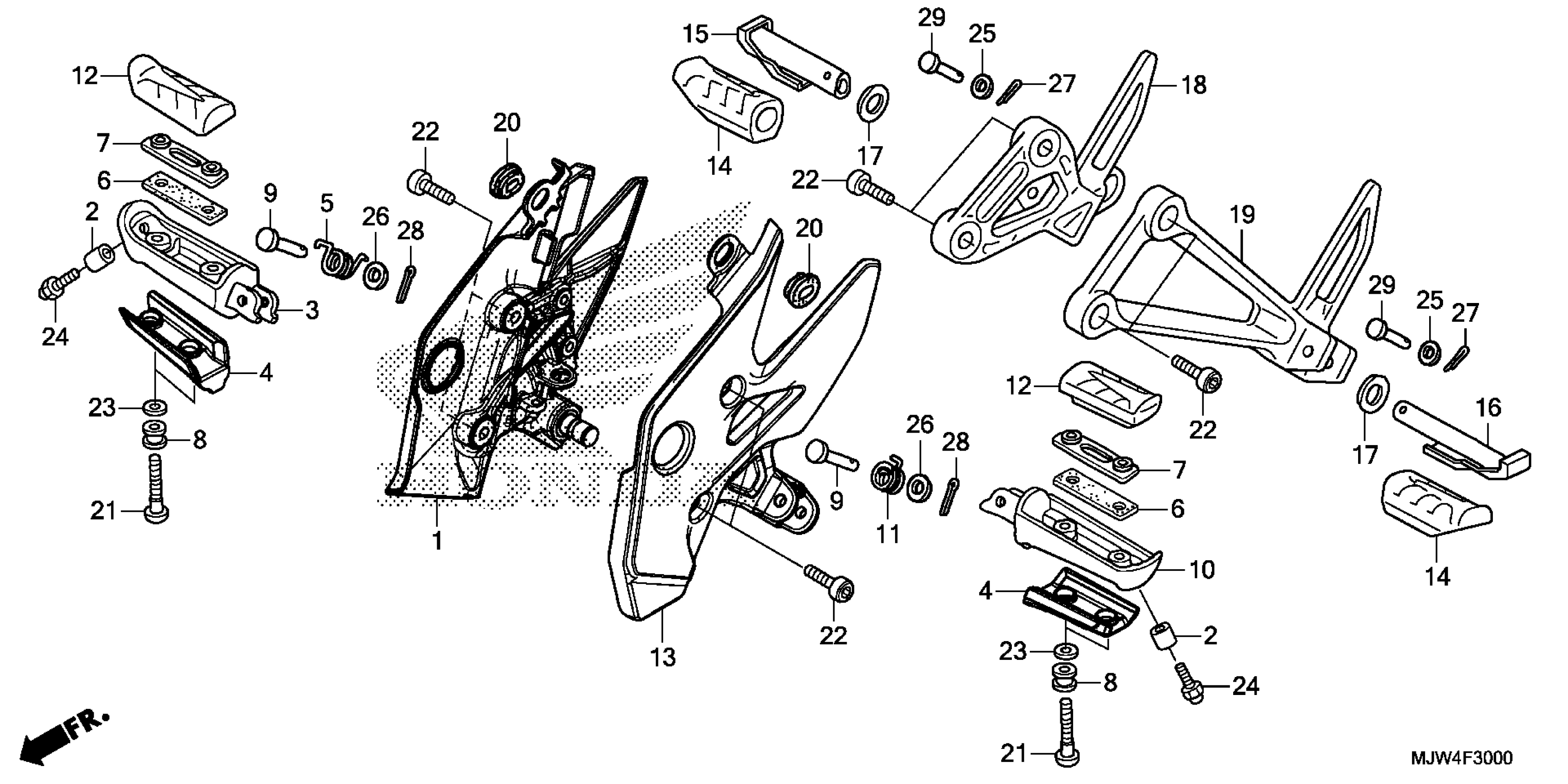

Honda CB500XAC (16) CB500X, THA, VIN# MLHPC461-G5300001 TO MLHPC461-G5399999 STEP (1) Diagram

#

Description
Price

1

HOLDER, R. MAIN STEP

50600-MGZ-J00

$60.08

2

COLLAR (12.7X8)

50611-MGZ-J00

$1.49

3

ARM, R. STEP (COO)

50612-MGZ-305

$14.56

4

PLATE, STEP (LOWER)

50615-MGZ-J00

$14.08

5

SPRING, R. STEP RETURN (L. SIDE)

50617-445-840

$5.44

6

RUBBER, STEP (LOWER)

50618-MBG-D00

$2.92

7

PLATE, STEP

50619-MER-D00

$3.61

8

RUBBER, STEP PLATE (LOWER)

50622-MBG-D00

$2.05

9

PIN, STEP BAR

50639-ML0-010

$5.22

10

ARM, L. STEP (COO)

50642-MGZ-305

$14.56

11

SPRING, L. STEP RETURN (R. SIDE)

50644-445-840

$5.44

12

RUBBER, MAIN STEP (COO)

50661-KYJ-305

$14.22

12

RUBBER, MAIN STEP (COO) This part replaces 50661-KYJ-900.

50661-KYJ-305

$14.22

13

HOLDER, L. MAIN STEP

50700-MGZ-J00

$56.46

14

RUBBER, PILLION STEP (COO)

50710-KYJ-305

$12.26

14

RUBBER, PILLION STEP (COO) This part replaces 50710-KYJ-900.

50710-KYJ-305

$12.26

15

BAR, R. PILLION STEP (COO) This part replaces 50711-KET-600.

50711-KYJ-305

$16.36

15

BAR, R. PILLION STEP (COO)

50711-KYJ-305

$16.36

16

BAR, L. PILLION STEP (COO) This part replaces 50712-KET-600.

50712-KYJ-305

$15.15

16

BAR, L. PILLION STEP (COO)

50712-KYJ-305

$15.15

17

PLATE, PILLION STEP SIDE

50714-KBA-930

$1.52

18

HOLDER, R. PILLION STEP

50715-MGZ-J00

$32.44

19

HOLDER, L. PILLION STEP

50725-MGZ-J00

$31.51

20

GROMMET, SPEAKER PANEL

64266-MG9-770

$2.99

21

BOLT, STEP PLATE (LOWER)

90115-MBG-D00

$5.05

22

BOLT, SOCKET (8X22)

90116-MGZ-J00

$1.49

23

WASHER, PLAIN (5MM)

90483-MER-D00

$1.49

24

BOLT, CAP (8X16)

92501-08016-0A

$2.61

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

26

WASHER, PLAIN (8MM)

94102-08000

$1.49

27

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

27

PIN, COTTER (1.6X25)

94201-16250

$1.49

28

PIN, COTTER (2.0X15)

94201-20150

$1.49

29

PIN B, PILLION FOOTPEG

95015-82000

$2.41
