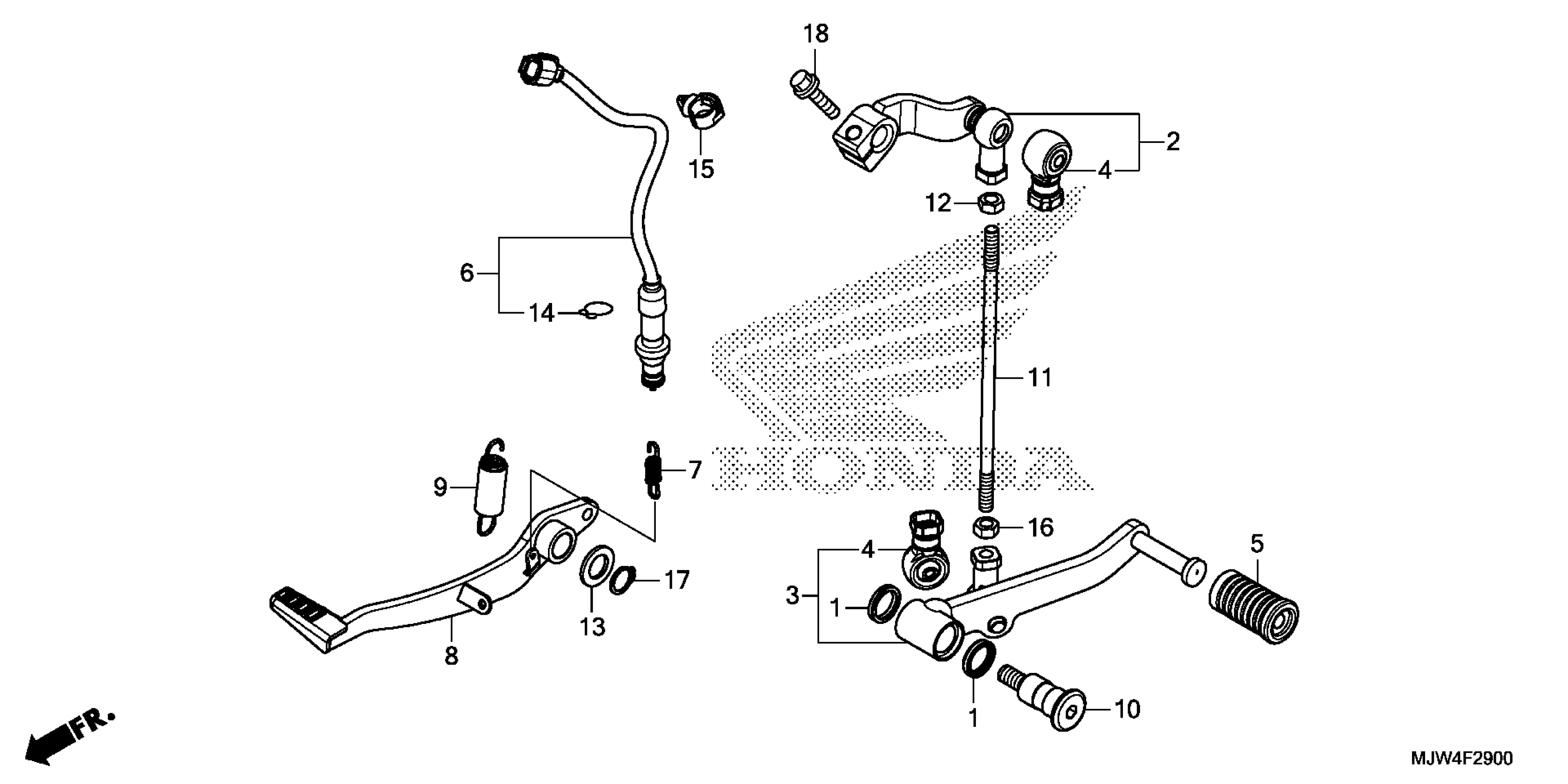

Honda CB500XAC (16) CB500X, THA, VIN# MLHPC461-G5300001 TO MLHPC461-G5399999 PEDAL Diagram

RUBBER, DUST SEAL

24706-MK3-770

$4.48

ARM, GEARSHIFT (COO)

24710-MGZ-305

$17.43

PEDAL, GEARSHIFT (COO)

24720-MGZ-305

$18.27

COVER, DUST

24724-MBW-D21

$6.98

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

SWITCH ASSY., RR. STOP

35350-MGZ-J02

$20.54

SPRING, STOP SWITCH

35357-HP0-A00

$2.56

PEDAL, RR. BRAKE (COO)

46500-KYJ-305

$19.59

SPRING ASSY., BRAKE PEDAL

46513-KYJ-900

$3.03

BOLT, CHANGE PIVOT

90113-MGZ-J00

$9.50

BOLT, TIE ROD

90165-MGZ-J00

$3.98

NUT, SPECIAL (6MM) (LEFT HAND THREAD)

90301-MGZ-J00

$2.34

WASHER (15.2X25)

90557-230-000

$2.39

CLIP, SWITCH COVER

90601-KAF-003

$2.67

CLIP, WIRE HARNESS (25MM)

90683-SA0-003

$9.47

NUT, HEX. (6MM)

94001-06070-0S

$1.49

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

BOLT, FLANGE (6X20)

95701-06020-07

$1.62
