Description

Price

1

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.56

2

ELEMENT, AIR CLEANER

17211-MJW-J00

$18.21

3

SEAL, AIR CLEANER

17213-MGZ-D00

$2.79

4

SEAL, AIR CLEANER LID

17214-MGZ-D00

$1.66

5

SEAL, THROTTLE BODY

17215-MGZ-D00

Unavailable

6

SEAL, AIR CLEANER DUCT

17216-MGZ-D00

$1.63

7

COVER, AIR CLEANER

17220-MGZ-D00

$14.84

8

CASE SUB-ASSY., AIR CLEANER

17225-MGZ-D00

$28.99

9

COLLAR, AIR CLEANER MOUNTING

17232-KYJ-900

$0.81

10

DUCT, AIR CLEANER

17240-MJW-J00

$5.25

11

LID SUB-ASSY., AIR CLEANER

17245-MGZ-D01

$9.25

12

FUNNEL, L. AIR

17251-MGZ-A00

$11.36

13

FUNNEL, R. AIR

17252-MGZ-A00

$12.13

14

FUNNEL, AIR

17253-MGZ-D00

$7.87

15

TUBE, BREATHER

17265-MGZ-D00

$4.90

16

TUBE A, DRAIN

17366-428-670

$7.75

17

PLUG, BREATHER TUBE

17370-382-870

$3.58

18

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

19

STAY, ENGINE SUB-HARNESS

32150-MGZ-J00

$1.71

20

STAY, HARNESS

32207-MGZ-J00

$0.78

21

RUBBER, SIDE COVER

83545-KCJ-690

$1.29

22

WASHER, SPECIAL (6MM)

90538-KSH-900

$0.49

23

CLIP, AIR HOSE (16MM)

90646-657-000

$6.99

24

CLAMP, TUBE (D14.5)

91406-MS8-000

$3.71

25

SCREW, PAN (5MM)

91508-MGP-D00

$3.47

26

SCREW-WASHER (5X12)

93893-05012-08

$1.24

27

SCREW, TAPPING (5X16)

93901-25320

$0.52

28

SCREW, TAPPING (5X20)

93903-25480

$0.84

29

BOLT, FLANGE (6X20)

96001-06020-04

$1.04

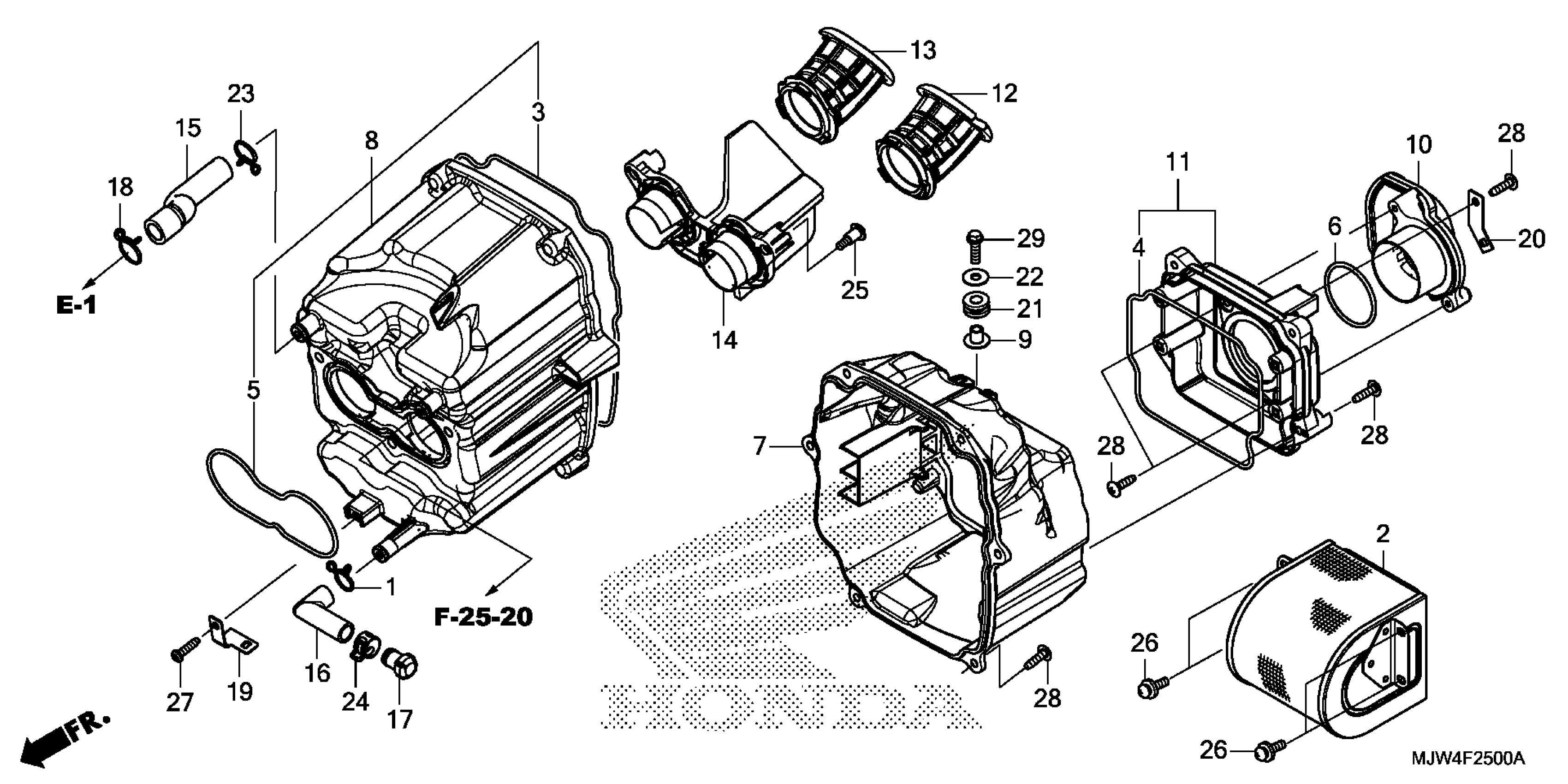

Honda CB500XAC (16) CB500X, THA, VIN# MLHPC461-G5300001 TO MLHPC461-G5399999 AIR CLEANER Diagram
