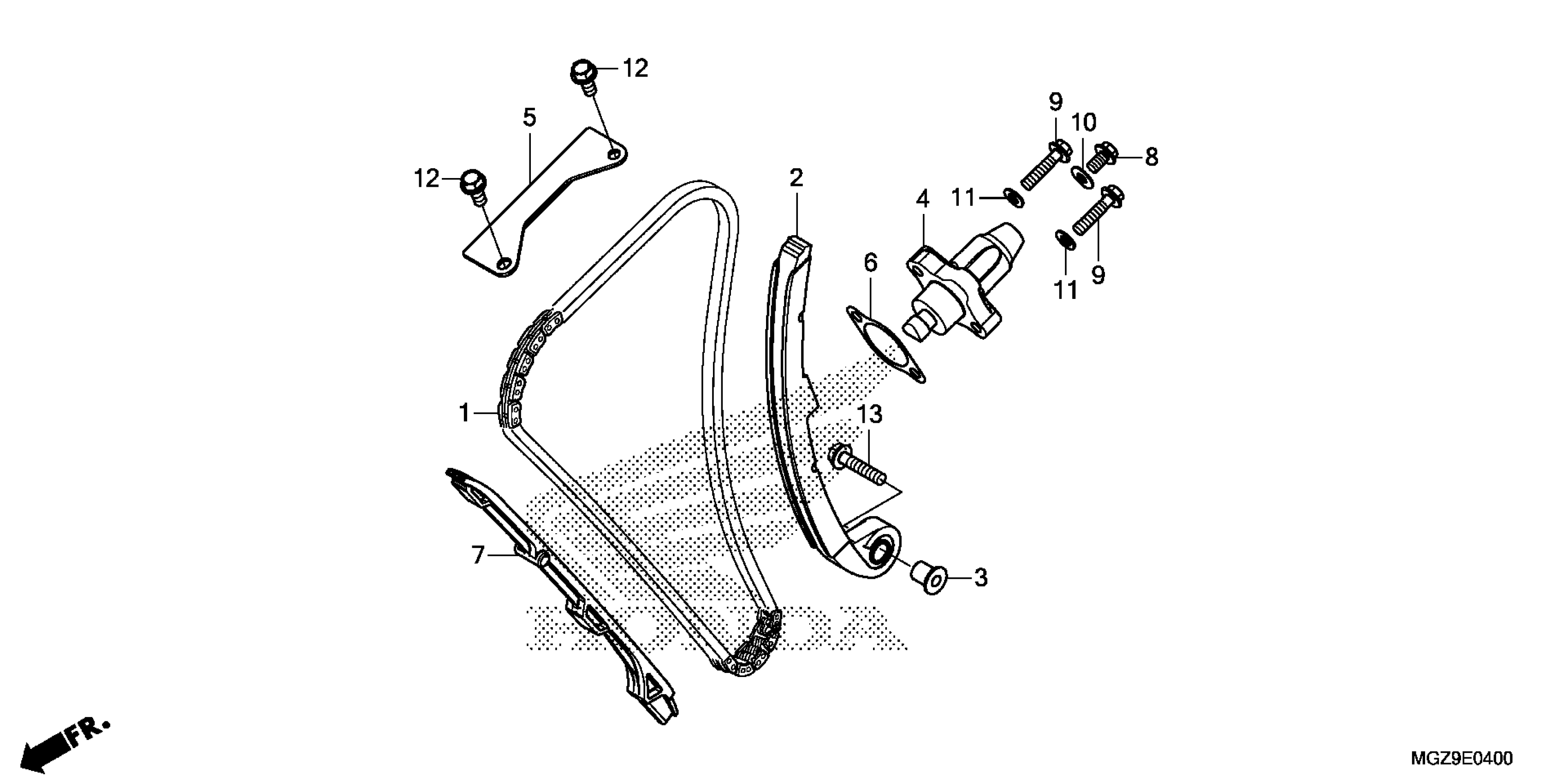

Honda CB500XAC (15) MOTORCYCLE, THA, VIN# MLHPC461-F5200001 CAM CHAIN@TENSIONER Diagram

CHAIN, CAM (130L) (SCH-0409 SV) (DAIDO)

14401-MGZ-J01

$80.20

TENSIONER, CAM CHAIN (NOK)

14510-MGZ-J01

$64.49

COLLAR, TENSIONER

14517-MGZ-J00

$1.24

LIFTER ASSY., TENSIONER

14520-MGZ-J81

$101.69

GUIDE B, CAM CHAIN

14546-KYJ-900

$6.91

GASKET, TENSIONER HOLE

14560-MGZ-J01

$4.25

GUIDE A, CAM CHAIN

14611-MGZ-J00

$9.82

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$2.95

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.80

WASHER, SEALING (6MM)

90442-397-000

$2.60

WASHER, SEALING (6MM)

90463-MEE-000

$1.63

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

BOLT, FLANGE (6X28)

95801-06028-00

$1.68
