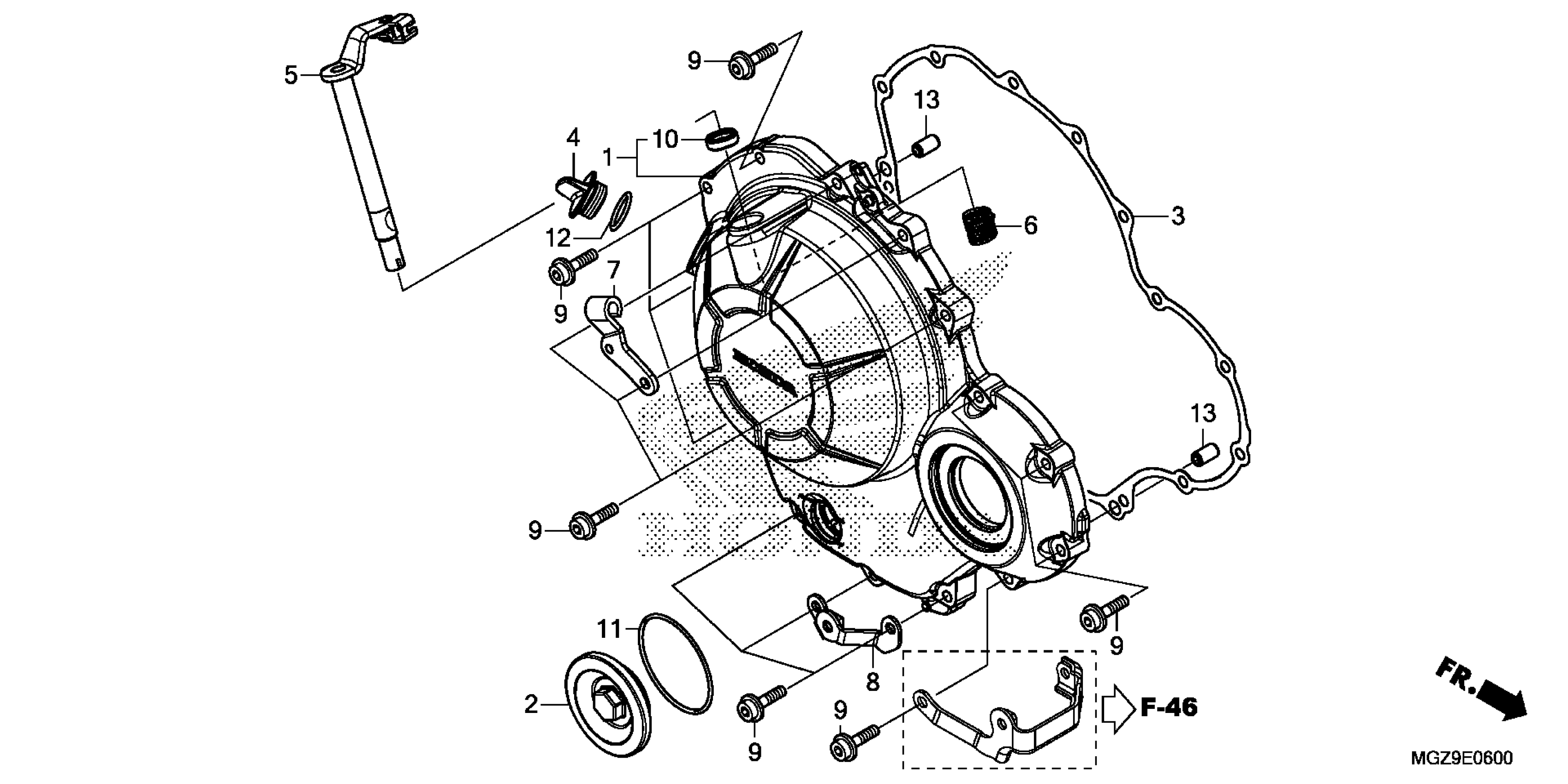

Honda CB500XAC (14) MOTORCYCLE, THA, VIN# MLHPC461-E5100001 TO MLHPC461-E5199999 RIGHT CRANKCASE COVER Diagram

#

Description

Price

1

COVER, R. CRANKCASE

11330-MGZ-J00

$143.85

2

CAP (45MM)

11332-MGZ-J00

$22.78

3

GASKET, R. COVER This part replaces 11394-MGZ-J00.

11394-MGZ-J01

$5.41

4

CAP, OIL FILLER

15611-KA4-710

$14.40

5

LEVER, CLUTCH

22810-MGZ-J00

$33.20

6

SPRING, CLUTCH LEVER

22815-413-000

$3.08

7

RECEIVER, CLUTCH CABLE

22821-MGZ-J00

$11.23

8

STAY, R. RR. COWL (LOWER)

64316-MGZ-J00

$1.49

9

BOLT, FLANGE SOCKET (6X28)

90003-MGZ-J00

$1.49

10

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

11

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.92

12

O-RING (18X3)

91307-035-000

$2.92

13

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25
