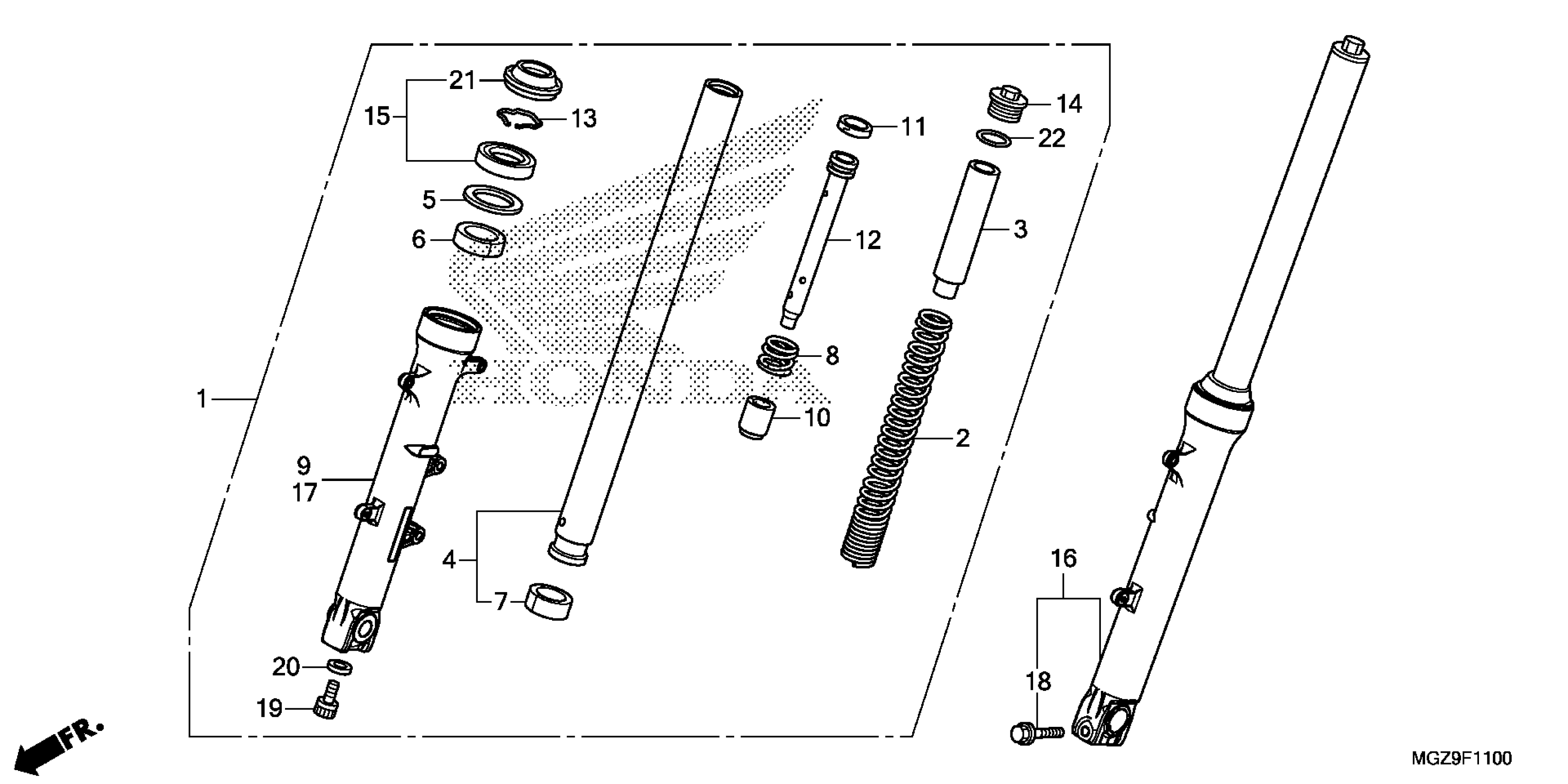

Description

Price

1

FORK ASSY., R. FR. This part replaces 51400-MGZ-307.

51400-MGZ-317

$504.25

1

FORK ASSY., R. FR.

51400-MGZ-317

$504.25

2

SPRING, FR. FORK

51401-MGZ-J81

$963.28

3

COLLAR, SPRING

51402-MGZ-J01

$18.27

4

PIPE, FR. FORK

51410-MGZ-J81

$174.92

5

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

6

BUSH, GUIDE

51414-MFJ-A51

$7.25

7

BUSH, SLIDER

51415-MFJ-A51

$7.25

8

SPRING, FR. REBOUND (SHOWA)

51416-KF0-003

$7.28

9

CASE, R. (LOWER)

51420-MGZ-J01

$82.75

10

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$24.82

11

RING, PISTON

51437-KV3-701

$7.19

12

PIPE, SEAT

51440-MGZ-J81

$33.18

13

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

14

BOLT, FR. FORK

51454-MM9-671

$38.35

15

SEAL SET, FR. FORK This part replaces 51490-MER-R61.

51490-MKA-D81

$22.76

15

SEAL SET, FR. FORK

51490-MKA-D81

$22.76

16

FORK ASSY., L. FR. This part replaces 51500-MGZ-307.

51500-MGZ-317

$483.28

16

FORK ASSY., L. FR.

51500-MGZ-317

$483.28

17

CASE, L. (LOWER)

51520-MGZ-J01

$71.70

18

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

19

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

20

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

21

DUST SEAL (SHOWA)

91251-MKA-D81

$8.55

21

DUST SEAL (SHOWA) This part replaces 91254-MEE-D01.
