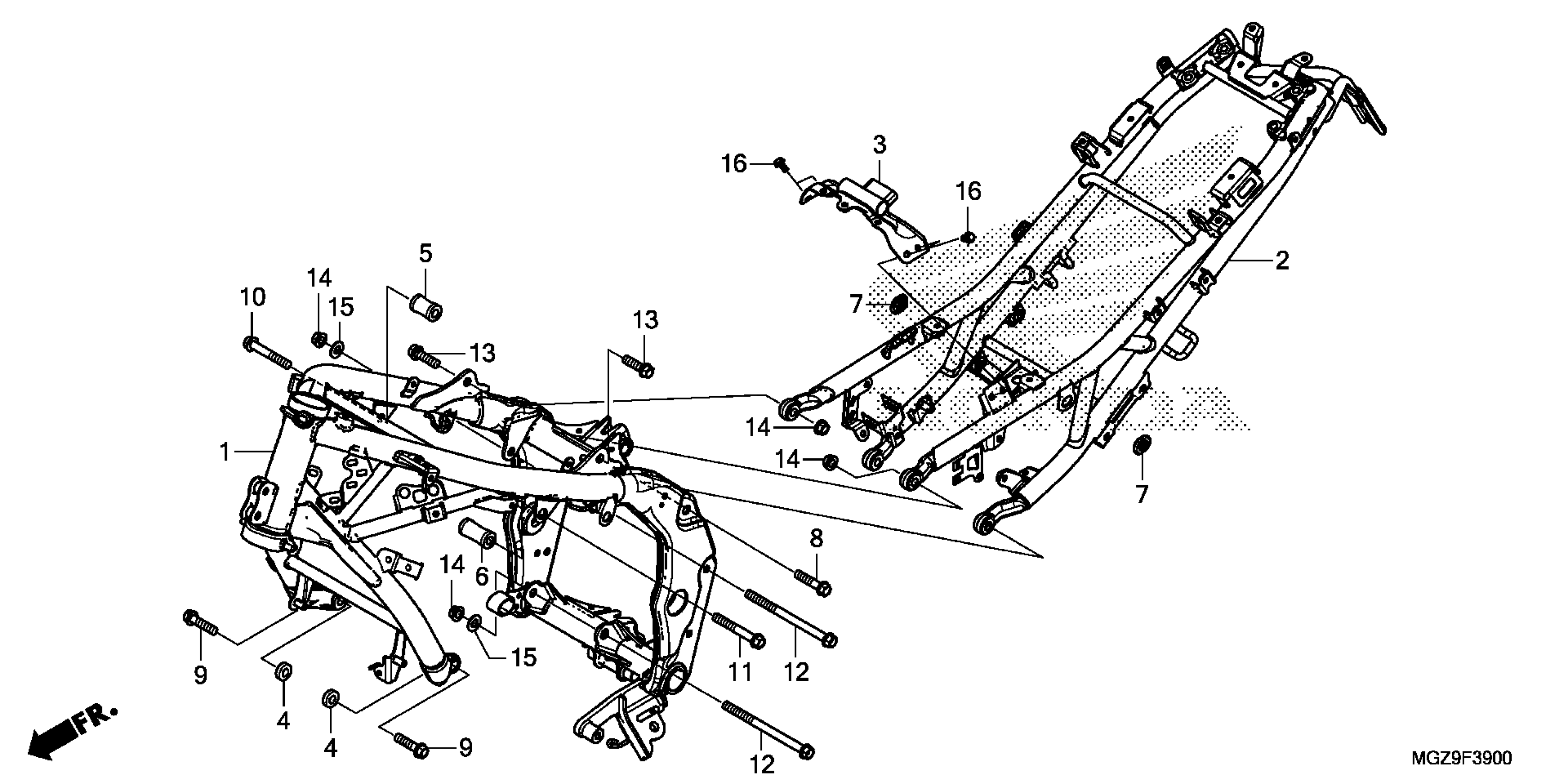

Honda CB500XAC (14) MOTORCYCLE, THA, VIN# MLHPC461-E5100001 TO MLHPC461-E5199999 FRAME Diagram

FRAME *NH303M* (MAT AXIS GRAY METALLIC) | Use up to Frame SN E5100040.

50100-MGZ-A80ZA

Unavailable

FRAME *NH303M* (MAT AXIS GRAY METALLIC) | Use from Frame SN E5100041.

50100-MGZ-A81ZA

$473.30

RAIL, SEAT *NH303M* (MAT AXIS GRAY METALLIC) | Use up to Frame SN E5100040. This part replaces 50240-MGZ-J80ZA.

50240-MGZ-J82ZA

$261.89

RAIL, SEAT *NH303M* (MAT AXIS GRAY METALLIC) This part replaces 50240-MGZ-J81ZA.

50240-MGZ-J82ZA

$261.89

RAIL, SEAT *NH303M* (MAT AXIS GRAY METALLIC)

50240-MGZ-J82ZA

$261.89

BRACKET, FUEL TANK

50295-MGZ-J00

$12.62

COLLAR A, ENGINE HANGER

50351-MGZ-J01

$4.34

COLLAR B, R. ENGINE HANGER

50353-MGZ-J00

$7.61

COLLAR B, L. ENGINE HANGER

50354-MGZ-J00

$8.72

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

BOLT, FLANGE (10X45)

90101-KTB-000

$4.48

BOLT, FLANGE (10X40)

90101-MGZ-J00

$2.05

BOLT, FLANGE (10X65)

90102-MGZ-J00

$1.98

BOLT, FLANGE (10X75)

90103-MGZ-J00

$2.31

BOLT, FLANGE (10X146)

90104-KYJ-900

$3.01

BOLT, FLANGE (10X35)

90168-S2A-010

$5.02

NUT, FLANGE (10MM)

94050-10000

$1.59

WASHER, PLAIN (10.5X22X1.6)

94101-10800

$1.89

BOLT, FLANGE (6X14)

95701-06014-08

$1.55
