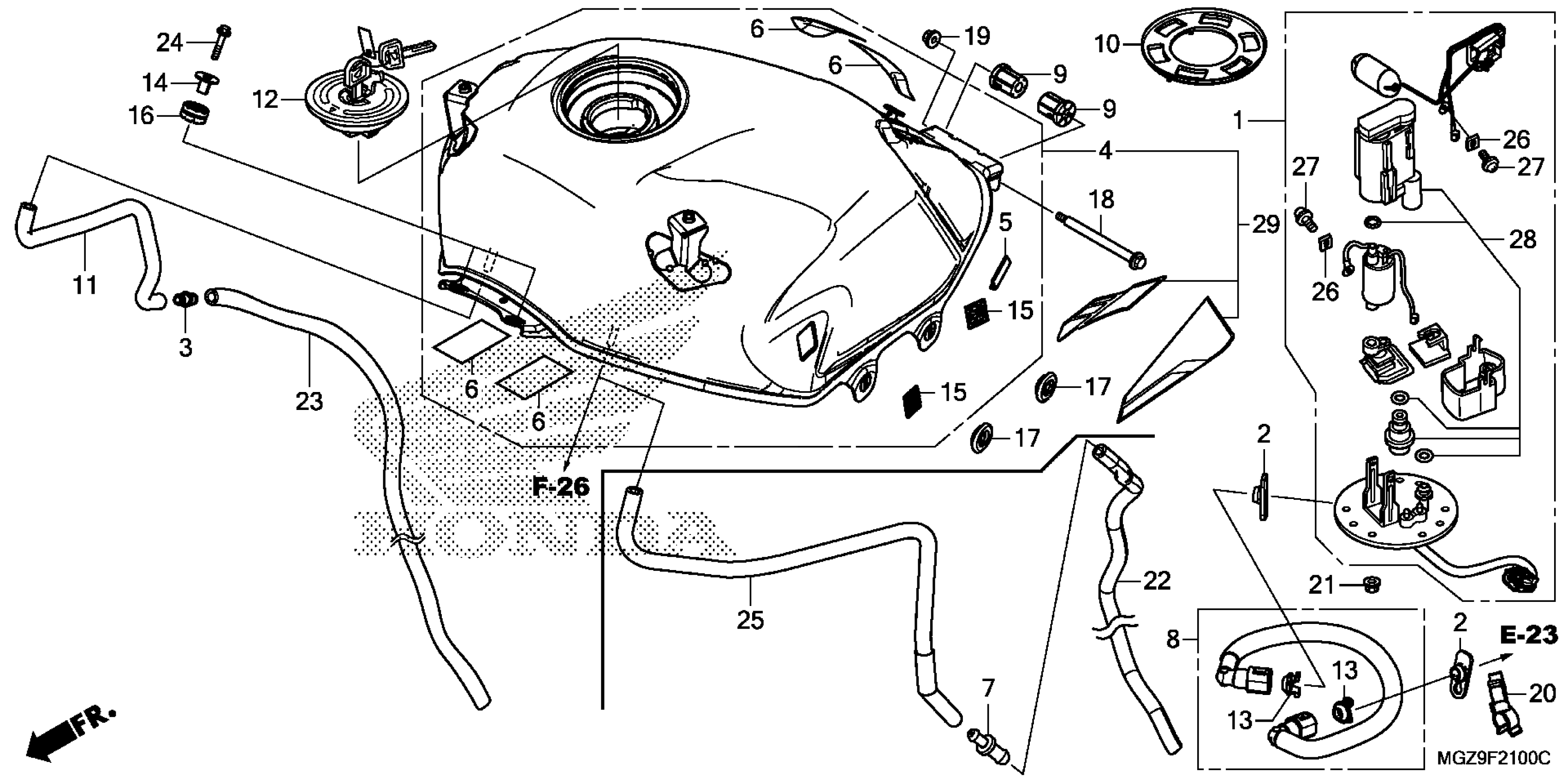

Honda CB500XAC (13) MOTORCYCLE, THA, VIN# MLHPC461-D5000001 TO MLHPC461-D5099999 FUEL TANK@FUEL PUMP Diagram

PUMP ASSY., FUEL This part replaces 16700-MGZ-J81.

16700-MGZ-J83

$727.56

PUMP ASSY., FUEL This part replaces 16700-MGZ-J82.

16700-MGZ-J83

$727.56

PUMP ASSY., FUEL

16700-MGZ-J83

$727.56

DAMPER, CONNECTOR

16719-MEW-920

$2.92

JOINT, BREATHER TUBE

17359-419-670

$1.95

TANK ASSY., FUEL *NH436M* (MAT GUNPOWDER BLACK METALLIC)

17500-MGZ-J80ZB

$787.18

RUBBER, FUEL TANK

17501-MGZ-J00

$7.00

TAPE B, TANK GUARD

17528-KCZ-930

$3.39

HOSE, FUEL FEED

17570-MGZ-J01

$63.16

CUSHION, RR. FUEL TANK PIVOT

17572-KPP-T00

$2.38

GASKET, BASE

17574-MGS-D30

$24.44

TUBE, FUEL TANK DRAIN

17590-MGZ-J00

$8.90

CAP, FUEL FILLER This part replaces 17620-MCB-611.

17620-MCB-612

$128.23

CAP, FUEL FILLER

17620-MCB-612

$128.23

RETAINER

17711-MGE-003

$6.34

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$4.13

FASTENER B, DUAL LOCK (20X20)

64243-MEW-920

$2.97

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.37

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

BOLT, TANK HINGE

90135-MS2-000

$6.22

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

CLAMP, FUEL HOSE (BLACK)

91593-MGZ-J01

$2.33

NUT, FLANGE (6MM)

94050-06000

$1.49

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$23.91

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

$1.49

STOPPER

16711-MGS-D31

$4.84

SCREW (4X6.6)

16712-MGS-D31

$1.89

FILTER ASSY., FUEL This part replaces 16730-MGS-D31.

16730-MKT-D01

$42.30

FILTER ASSY., FUEL This part replaces 16730-MKA-D82.

16730-MKT-D01

$42.30

FILTER ASSY., FUEL This part replaces 16730-MKA-D83.

16730-MKT-D01

$42.30

FILTER ASSY., FUEL

16730-MKT-D01

$42.30
