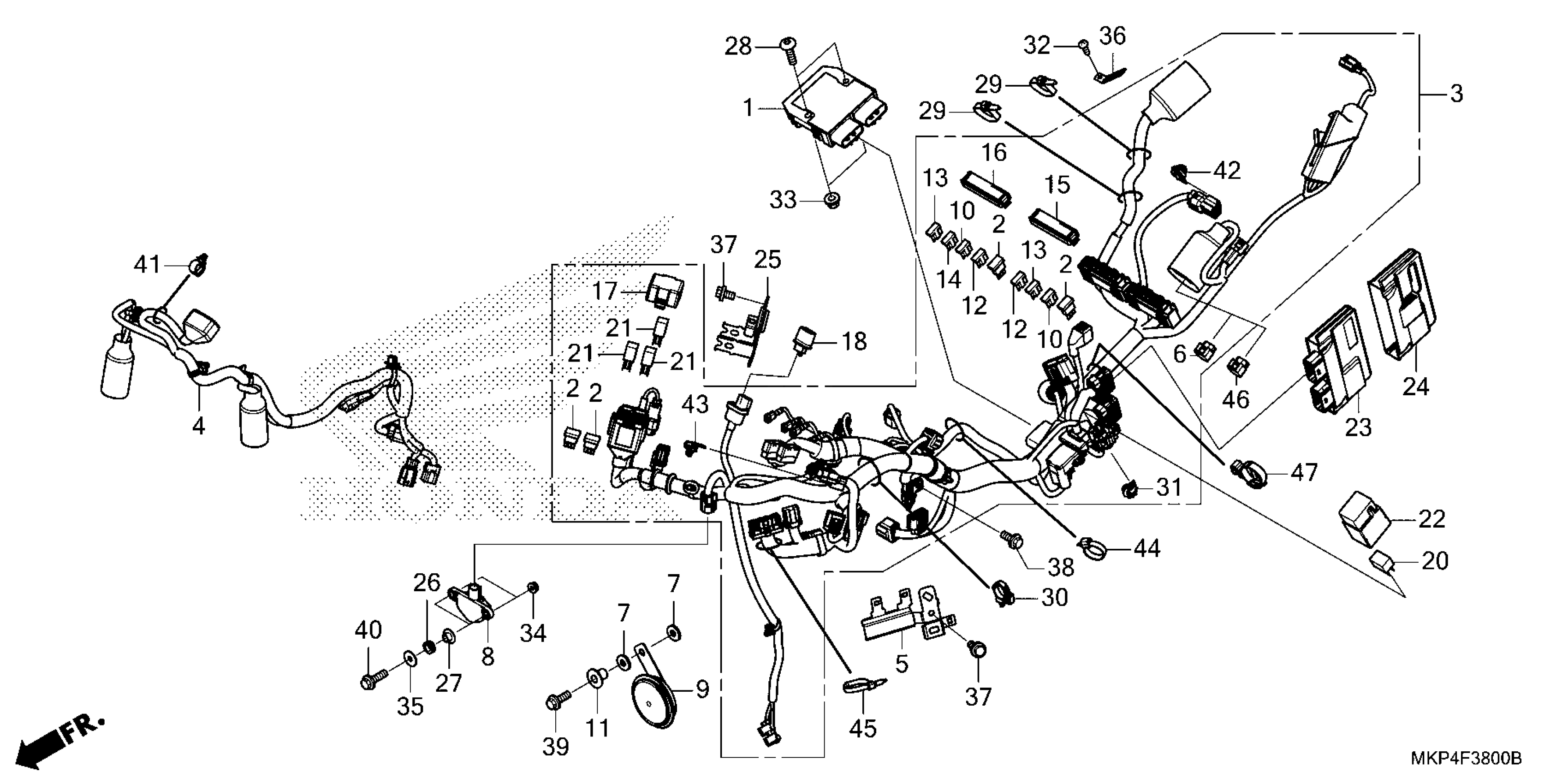

Honda CB500XAAC (23) MOTORCYCLE, THA, VIN# MLHPC645-P5400001 WIRE HARNESS Diagram

#

Description
Price

1

RECTIFIER ASSY., REGULATOR

31600-MKN-D51

$169.36

2

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.70

3

WIRE HARNESS

32100-MKP-AQ0

$1,052.33

4

SUB-HARNESS, FR.

32103-MKP-DQ0

$104.06

5

STAY, CONNECTOR

32206-MGZ-J00

$7.12

7

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.29

8

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$136.62

9

HORN (HIGH)

38110-MGZ-J01

$25.30

10

FUSE, BLADE (7.5A)

38221-SNA-A31

$2.89

11

COLLAR, HORN SETTING

38117-KFE-701

$0.70

12

FUSE, BLADE (10A)

38221-SNA-A41

$2.89

13

FUSE, BLADE (15A)

38221-SNA-A51

$3.39

14

FUSE, BLADE (30A)

38221-SNA-A81

$2.20

15

COVER (UPPER)

38255-MKP-T80

$16.70

16

COVER (UPPER)

38256-MKP-T80

$16.70

17

COVER, RELAY BOX

38281-MGZ-J01

$13.32

18

RELAY, TURN SIGNAL

38301-KZZ-J01

$51.80

20

RELAY (MICRO ISO 4P)

38501-MKP-DN1

$4.33

21

RELAY (MICRO ISO 4P)

38501-MKP-DN1

$4.33

22

COVER, RELAY (2P)

38506-KZZ-900

$3.29

23

PGM-FI UNIT

38770-MKP-AQ2

$446.64

24

CUSHION, PGM-FI UNIT

38774-MKP-D00

$3.57

25

STAY, RELAY BOX

50194-MGZ-J00

$8.59

26

RUBBER, SIDE COVER

64535-MFJ-D00

$1.77

27

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.09

28

SCREW, PAN (6X25)

90135-K87-A00

$0.65

29

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

30

CLAMP, HARNESS

90652-HC4-003

$5.54

31

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$5.71

32

SCREW, TAPPING (4X12)

93903-24380

Unavailable

33

NUT, FLANGE (6MM)

94050-06070

$1.32

34

NUT, FLANGE (6MM)

94050-06080

$0.59

35

WASHER, PLAIN (6MM)

94103-06800

$0.71

36

CLIP (4X90)

94591-49000

Unavailable

37

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.14

38

BOLT, FLANGE (6X14)

95701-06014-08

$1.48

39

BOLT, FLANGE (6X20)

95701-06020-07

$1.48

40

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

41

CLIP, WIRE HARNESS (25MM)

90683-SA0-003

$9.04

42

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.86

43

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.42

46

CAP, DUMMY (6P) (RED)

91771-MKK-H11

$20.46

47

CLIP, HARNESS

90651-MKP-DN1

$1.64
