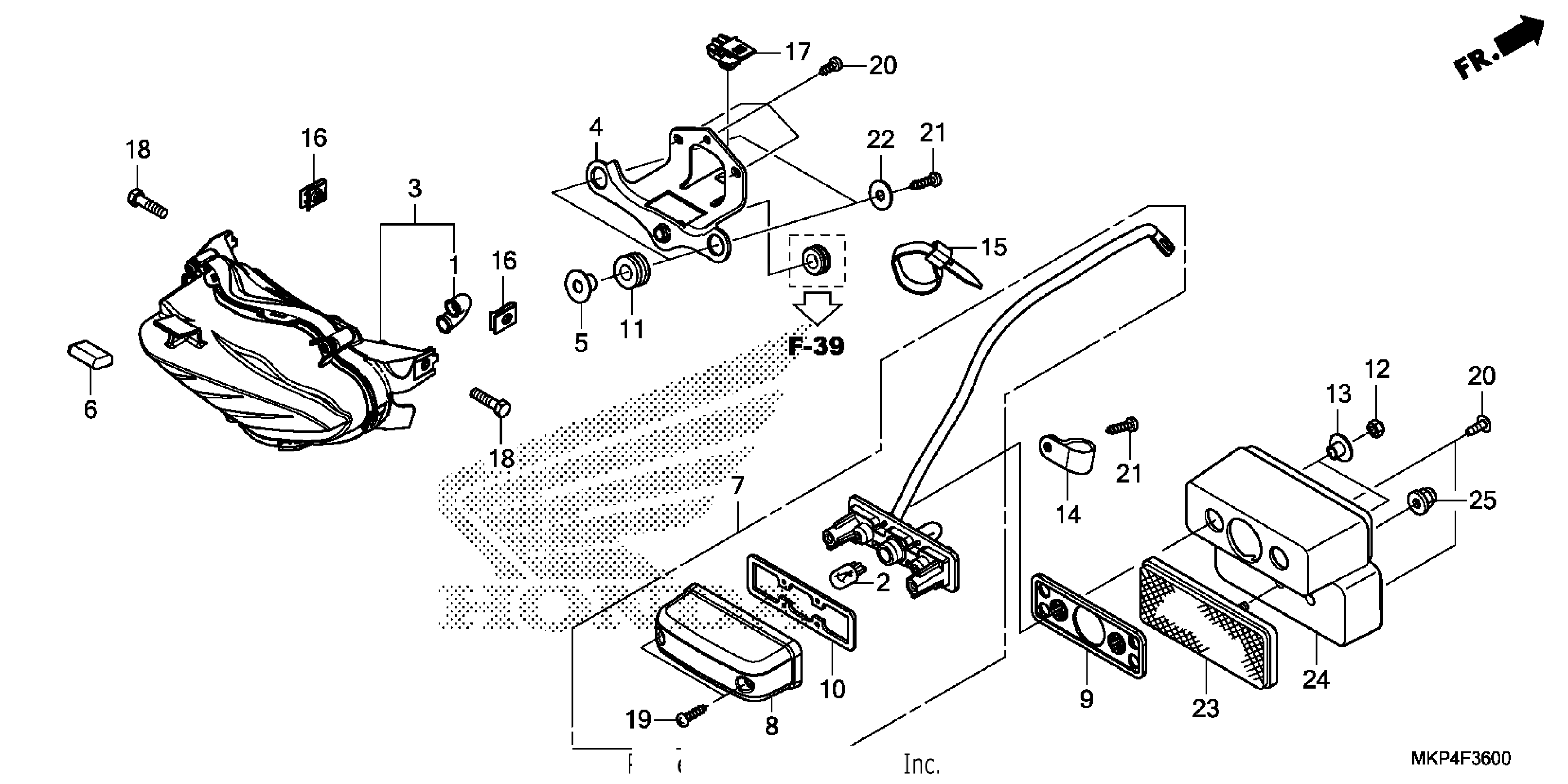

Honda CB500XAAC (23) MOTORCYCLE, THA, VIN# MLHPC645-P5400001 TAILLIGHT Diagram

TUBE, VENT

33113-MJW-J80

$1.49

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.80

TAILLIGHT UNIT

33701-MJW-A81

$255.64

STAY, TAILLIGHT

33702-MJW-J80

$6.62

COLLAR, TAILLIGHT

33705-MGZ-J00

$1.56

SUSPENSION, TAILLIGHT

33706-MFN-D00

$1.49

LIGHT ASSY., LICENSE (12V 5W) (COO) This part replaces 33720-MGZ-A01.

33720-MGZ-305

$53.54

LIGHT ASSY., LICENSE (12V 5W) (COO)

33720-MGZ-305

$53.54

COVER, LICENSE (COO) This part replaces 33722-KWN-901.

33722-K26-305

$10.56

COVER, LICENSE (COO)

33722-K26-305

$10.56

RUBBER, LICENSE LIGHT

33728-KPP-T00

$4.41

GASKET, LENS

33729-MCZ-003

$9.48

RUBBER, SIDE COVER

83545-KCJ-690

$1.49

NUT, U (5MM)

90302-KVB-T01

$1.85

COLLAR

90505-MGZ-A00

$1.79

CLIP (14MM)

90628-750-000

$2.31

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

NUT, CLIP (5MM)

90677-KAN-T00

$1.49

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

BOLT, HEX. (5X20) (USE ONLY WITH ORIGINAL OIL PUMP ASSY. P/N 15100-437-672.)

92101-05020-0A

$1.49

SCREW, TAPPING (4X16)

93901-24480

$1.49

SCREW, TAPPING (4X12)

93903-24380

$1.49

SCREW, TAPPING (4X16)

93903-24420

$1.49

WASHER, PLAIN (4MM)

94103-04000

$1.49

REFLECTOR, REFLEX

33741-KPL-902

$7.58

BRACKET, LICENSE LIGHT

80201-KYJ-920

$8.76

NUT, U (5MM)

90301-KWN-901

$1.49
