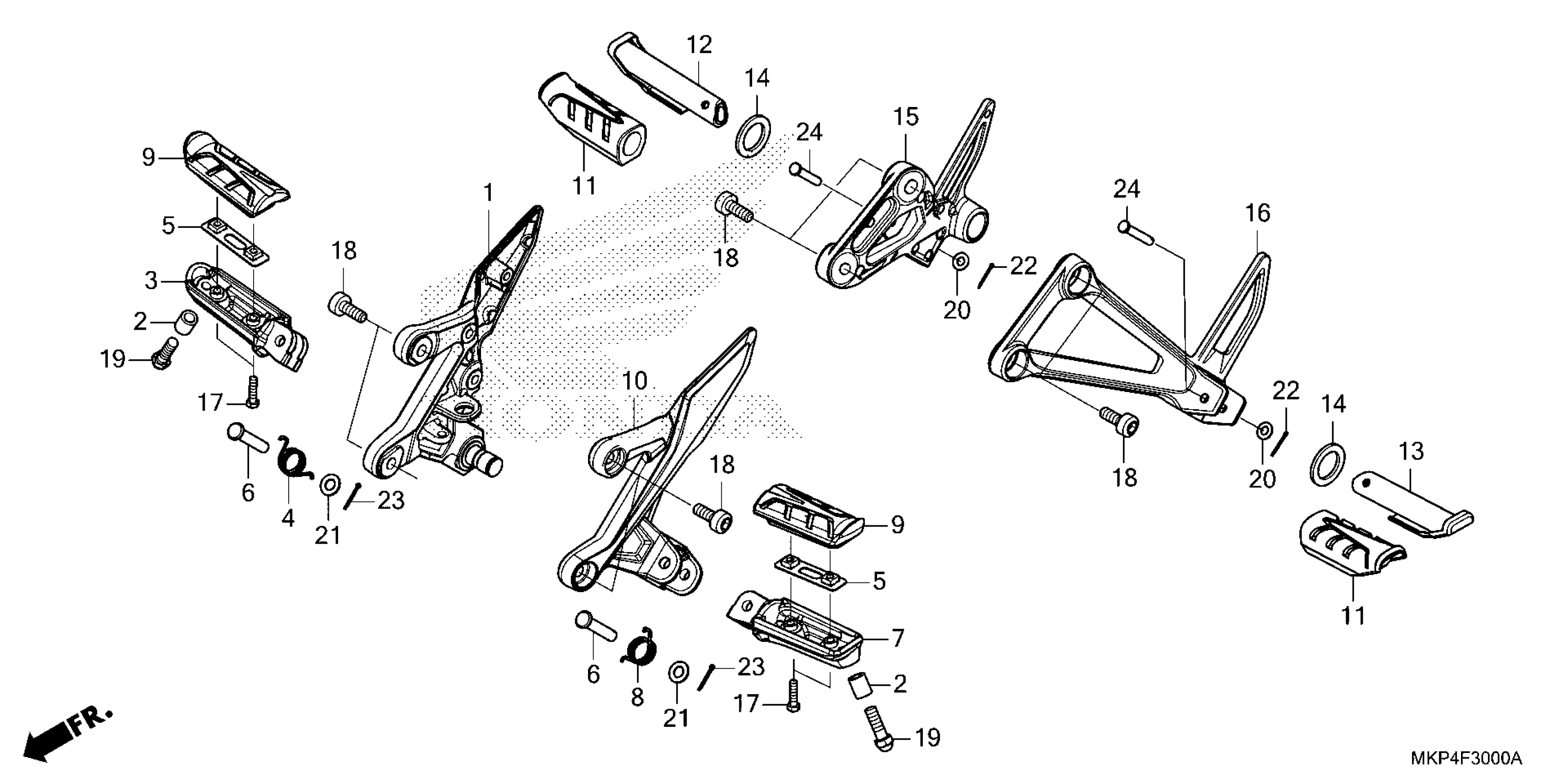

Honda CB500XAAC (23) MOTORCYCLE, THA, VIN# MLHPC645-P5400001 STEP Diagram

HOLDER, R. MAIN STEP

50600-MKP-J00

$40.95

COLLAR (12.7X15)

50611-MKP-J80

$1.49

ARM, R. STEP (COO)

50612-KYJ-305

$26.67

ARM, R. STEP (COO) This part replaces 50612-MM5-000.

50612-KYJ-305

$26.67

SPRING, R. STEP RETURN (L. SIDE)

50617-445-840

$5.44

PLATE, STEP SETTING

50619-MM5-000

$7.91

PIN, STEP BAR

50639-ML0-010

$5.22

ARM, L. STEP (COO)

50642-KYJ-305

$26.67

ARM, L. STEP (COO) This part replaces 50642-MM5-000.

50642-KYJ-305

$26.67

SPRING, L. STEP RETURN (R. SIDE)

50644-445-840

$5.44

RUBBER, MAIN STEP

50661-MJE-D00

$2.95

HOLDER, L. MAIN STEP

50700-MJW-J00

$31.56

RUBBER, PILLION STEP (COO)

50710-KYJ-305

$12.26

RUBBER, PILLION STEP (COO) This part replaces 50710-KYJ-900.

50710-KYJ-305

$12.26

BAR, R. PILLION STEP (COO) This part replaces 50711-KET-600.

50711-KYJ-305

$16.36

BAR, R. PILLION STEP (COO)

50711-KYJ-305

$16.36

BAR, L. PILLION STEP (COO) This part replaces 50712-KET-600.

50712-KYJ-305

$15.15

BAR, L. PILLION STEP (COO)

50712-KYJ-305

$15.15

PLATE, PILLION STEP SIDE

50714-KBA-930

$1.52

HOLDER, R. PILLION STEP

50715-MKP-J80

$35.48

HOLDER, L. PILLION STEP

50725-MGZ-J00

$31.51

BOLT, MAIN STEP RUBBER SETTING

90115-MV9-000

$3.67

BOLT, SOCKET (8X22)

90116-MGZ-J00

$1.49

BOLT, CAP (8X25) (NOT AVAILABLE)

92501-08025-0A

$3.80

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

WASHER, PLAIN (8MM)

94102-08000

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

PIN B, PILLION FOOTPEG

95015-82000

$2.41
