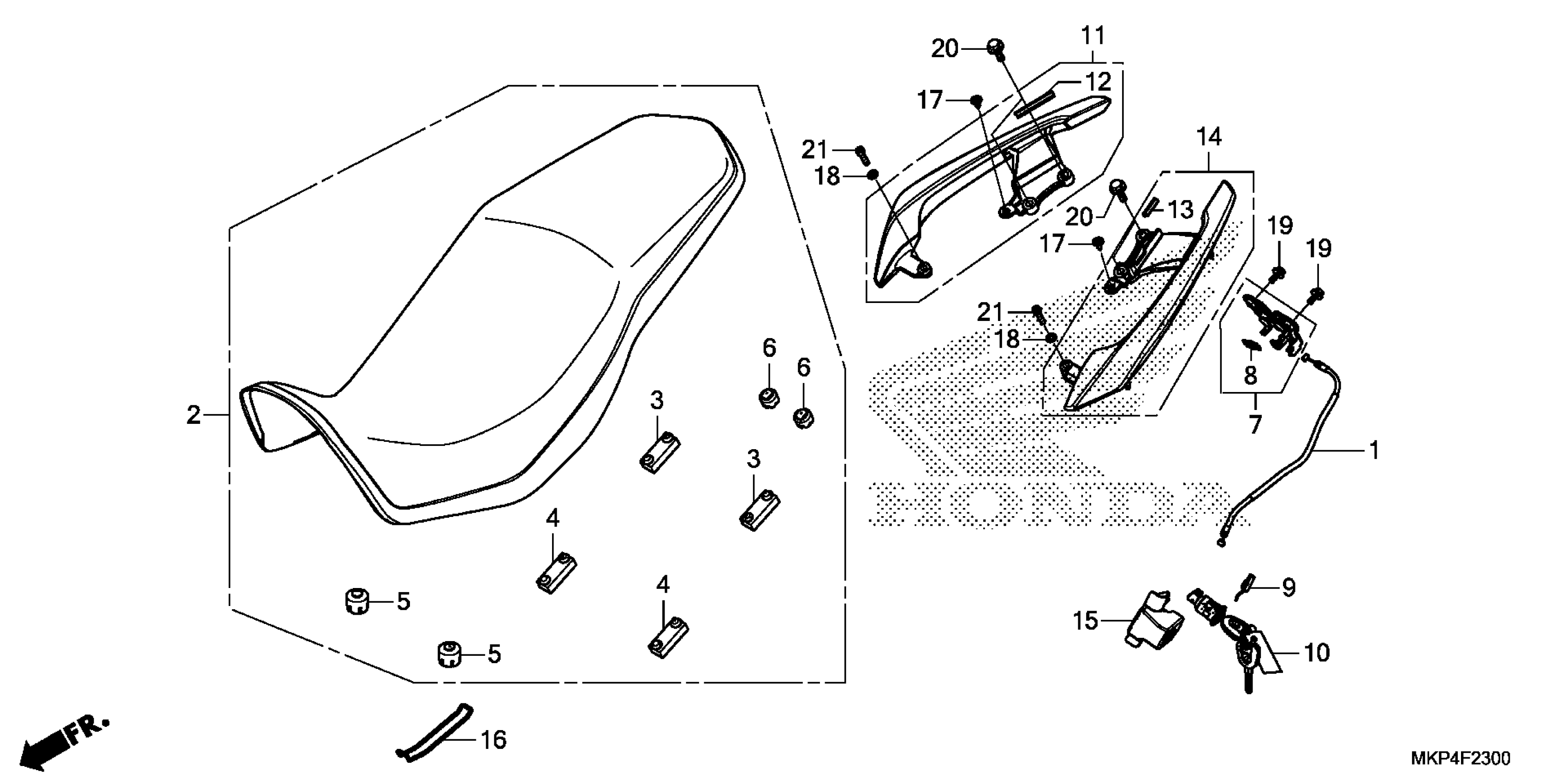

Honda CB500XAAC (23) MOTORCYCLE, THA, VIN# MLHPC645-P5400001 SEAT Diagram

#

Description
Price

1

CABLE, SEAT LOCK

77156-MKP-DQ1

$4.88

2

SEAT ASSY., DOUBLE

77200-MKP-DQ1

$232.54

3

RUBBER B, SEAT SETTING

77205-286-000

$4.92

4

RUBBER, SEAT SETTING

77205-MFE-670

$5.51

5

RUBBER, SEAT CUSHION

77206-MKP-J80

$6.38

6

RUBBER B, SEAT SETTING

77214-KPH-900

$1.16

7

LOCK, SEAT

77220-MGZ-J00

$6.26

8

SPRING, SEAT LOCK

77234-GN2-000

$3.66

9

PLATE, LOCK KEY SETTING

77235-MJE-D00

$2.42

10

KEY, SEAT LOCK

77239-MJE-D04

$130.43

11

GRIP, R. RR. *NH303M* (MAT AXIS GRAY METALLIC)

77330-MGZ-J80ZE

$57.25

12

RUBBER, RR. GRIP (R. SIDE)

77331-MGZ-J00

$35.01

13

RUBBER, RR. GRIP (L. SIDE)

77331-MGZ-J80

$0.77

14

GRIP, L. RR. *NH303M* (MAT AXIS GRAY METALLIC)

77340-MGZ-J80ZD

$57.12

15

STAY, SEAT LOCK CABLE

77582-MJW-J80

$8.61

16

BAND, TOOL

83606-KWS-901

$3.16

17

CLIP, BODY COVER

90683-GR1-003

$2.71

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

18

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

19

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

20

BOLT, FLANGE (8X25)

95701-08025-00

$1.62

21

BOLT, SOCKET (6X25)

96600-06025-00

$1.71
