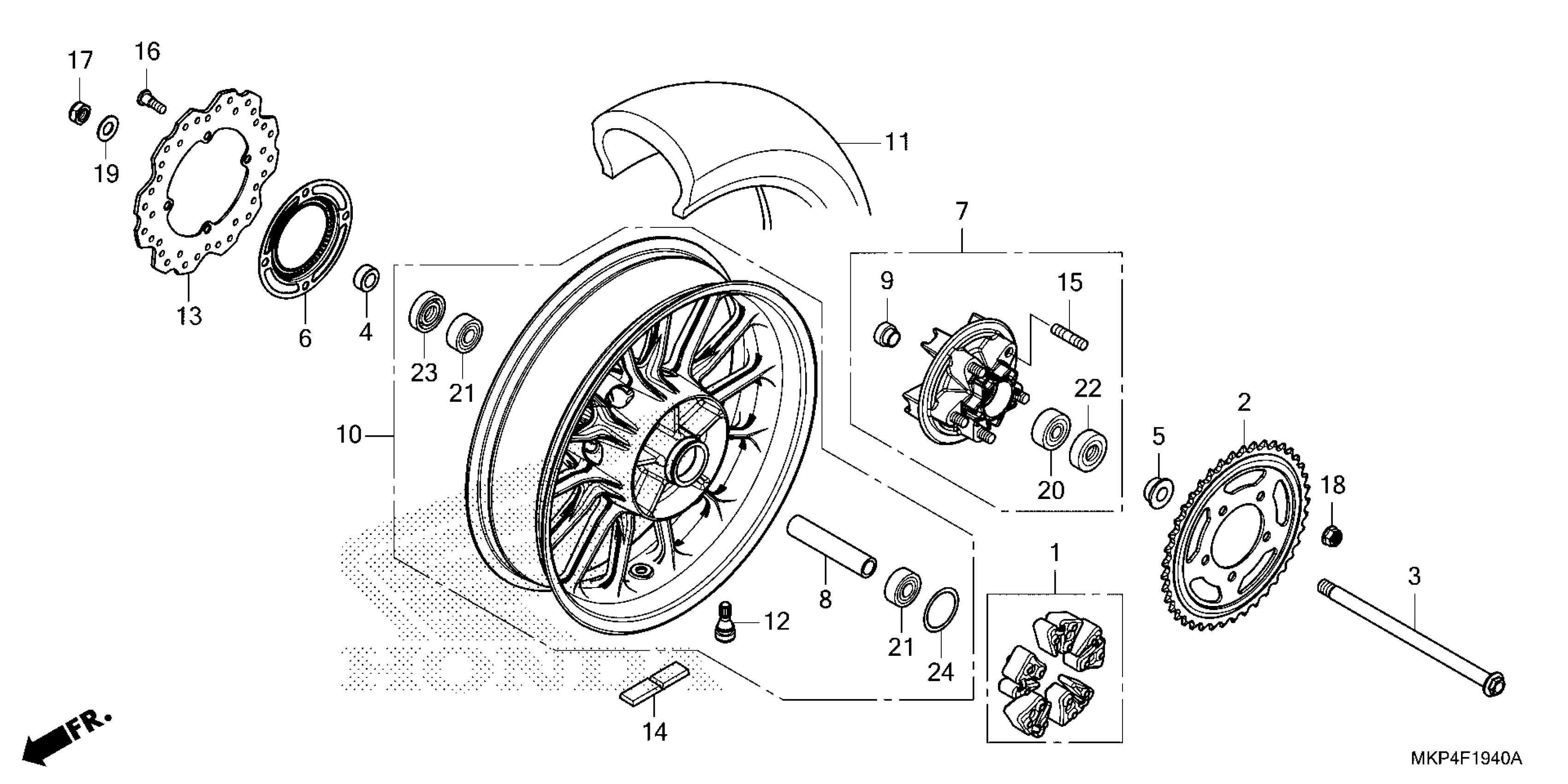

Honda CB500XAAC (23) MOTORCYCLE, THA, VIN# MLHPC645-P5400001 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MGS-D30

$52.73

2

SPROCKET (41T)

41201-MKP-DN0

$30.36

3

AXLE, RR. WHEEL

42301-MKP-J00

$10.15

4

COLLAR, RR. BRAKE SIDE

42312-MGZ-J00

$12.21

5

COLLAR, L. RR. WHEEL SIDE

42313-MKP-J80

$13.40

6

RING, RR. PULSER

42515-MKN-D50

$44.21

7

FLANGE SUB-ASSY.

42615-MKP-DN0

$234.49

8

COLLAR, RR. AXLE DISTANCE

42620-MKP-J80

$10.60

9

COLLAR B, RR. AXLE DISTANCE

42625-K87-A00

$5.13

10

WHEEL SUB-ASSY., RR.

42650-MKP-J80

$367.04

11

TIRE, RR. (160/60R17 M/C 69H) (DUNLOP)

42711-MKP-J82

$245.43

12

VALVE, RIM (IRC)

42753-GM9-743

$7.99

13

DISK, RR. BRAKE

43251-MKP-DN1

$92.69

14

WEIGHT, BALANCE (10G)

44721-MGH-H21

$3.28

14

WEIGHT, BALANCE (15G)

44722-MGH-H21

$3.93

14

WEIGHT, BALANCE (20G)

44723-MGH-H21

$3.75

15

BOLT 2, STUD (12X25)

90102-MAS-000

$3.83

16

BOLT, BRAKE DISK (8X24)

90105-KGH-900

$1.76

17

NUT, U (16MM)

90305-GW2-711

$15.03

18

NUT, U (12MM) (FUJI SEIMITSU)

90306-KGH-901

$2.37

19

WASHER, PLAIN (16.4X32X2)

90501-K87-A00

$1.38

20

BEARING (6204UU)

91053-MKP-DN1

Unavailable

21

BEARING, RADIAL BALL (6303UU) (NSK)

91054-MT6-831

$35.18

22

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$11.13

22

DUST SEAL (30X47X8) (NOK)

91253-443-762

$11.13

23

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$11.13

23

DUST SEAL (30X47X8) (NOK)

91253-443-762

$11.13

24

O-RING (55X2)

91351-MGS-D30

Unavailable
