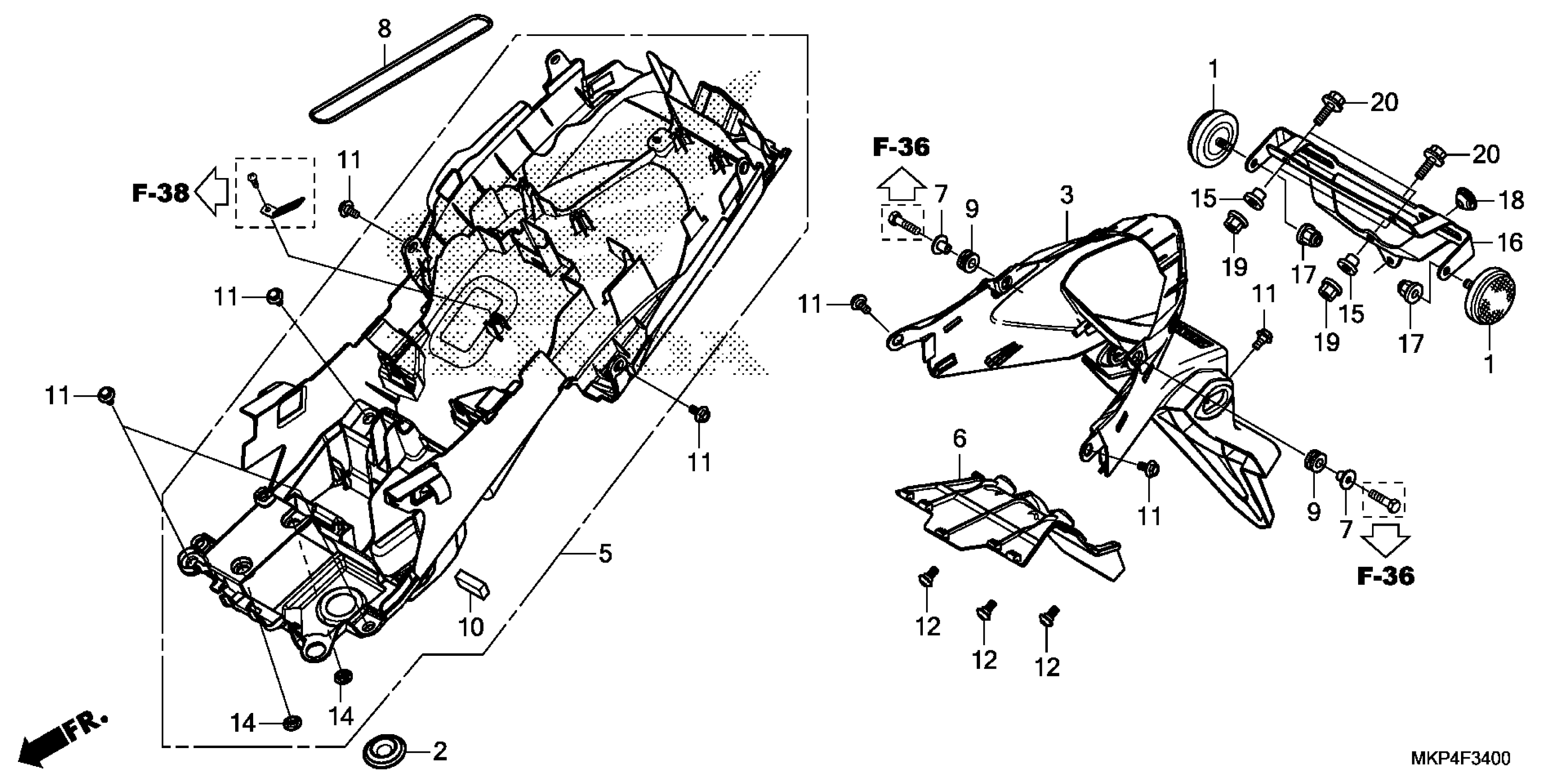

Honda CB500XAAC (23) MOTORCYCLE, THA, VIN# MLHPC645-P5400001 REAR FENDER Diagram

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$12.18

GROMMET, PANEL (INNER)

64285-MKP-J00

$1.19

FENDER SET A, RR. (TYPE1) (WL)

80100-MGZ-J01ZA

$13.18

FENDER ASSY. B, RR.

80104-MKP-J80

$35.81

COVER, RR. FENDER

80106-MGZ-J00

$6.29

COLLAR, TAILLIGHT

80113-MGZ-J00

$1.78

BAND, TOOL

80123-KPP-900

$0.82

RUBBER, SIDE COVER

83545-KCJ-690

$1.29

RUBBER, SIDE COVER SPONGE

83705-MT3-300

$3.23

BOLT, FLANGE (6MM)

90111-MKP-DN0

$0.99

SCREW, SPECIAL (6X14)

90127-MKN-D50

$1.24

COLLAR, MOUNTING

90503-MJE-D40

$2.79

COLLAR, FR. WHEEL COVER (FOR RR.)

44125-MN5-000

$4.88

BRACKET, NUMBER PLATE

84700-KYJ-920

$15.46

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.28

PLUG, HOLE

90852-446-630

$2.37

NUT, FLANGE (6MM)

94050-06000

$0.60

BOLT, FLANGE (6X14)

96001-06014-07

$1.10
