Description

Price

1

RUBBER, DUST SEAL

24706-MK3-770

$4.28

2

ARM, GEARSHIFT (COO) This part replaces 24710-MGZ-J00.

24710-MGZ-305

$15.54

2

ARM, GEARSHIFT (COO)

24710-MGZ-305

$15.54

3

PEDAL, GEARSHIFT (COO) This part replaces 24720-MGZ-J00.

24720-MGZ-305

$16.28

3

PEDAL, GEARSHIFT (COO)

24720-MGZ-305

$16.28

4

COVER, DUST

24724-MBW-D21

$6.66

5

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.23

6

SWITCH, RR. STOP

35350-MKP-DN1

$16.85

7

SPRING, STOP SWITCH

35357-HP0-A00

$2.37

8

PEDAL, RR. BRAKE (COO)

46500-KYJ-305

$17.47

8

PEDAL, RR. BRAKE (COO) This part replaces 46500-KYJ-900.

46500-KYJ-305

$17.47

9

SPRING ASSY., BRAKE PEDAL

46513-KYJ-900

$2.80

10

BOLT, CHANGE PIVOT

90113-MGZ-J00

$8.49

11

BOLT, TIE ROD

90165-MGZ-J00

$3.69

12

NUT, SPECIAL (6MM) (LEFT HAND THREAD)

90301-MGZ-J00

$2.10

13

WASHER (15.2X25)

90557-230-000

$2.21

14

CLIP, SWITCH COVER

90601-KAF-003

$2.47

15

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.56

16

NUT, HEX. (6MM)

94001-06070-0S

$1.31

17

CIRCLIP (OUTER) (15MM)

94511-15000

$0.63

18

BOLT, FLANGE (6X20)

95701-06020-07

Unavailable

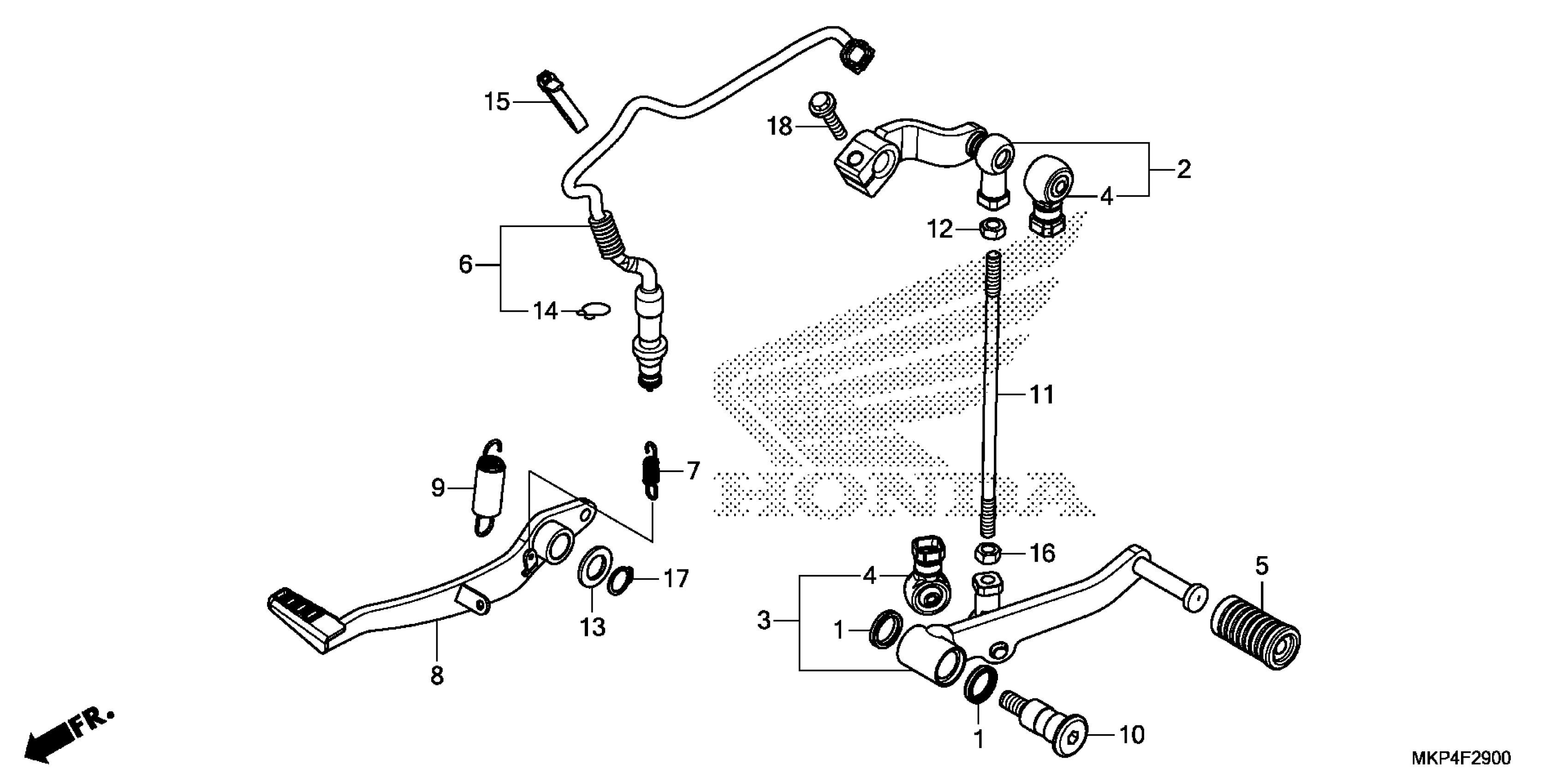

Honda CB500XAAC (23) MOTORCYCLE, THA, VIN# MLHPC645-P5400001 PEDAL Diagram
