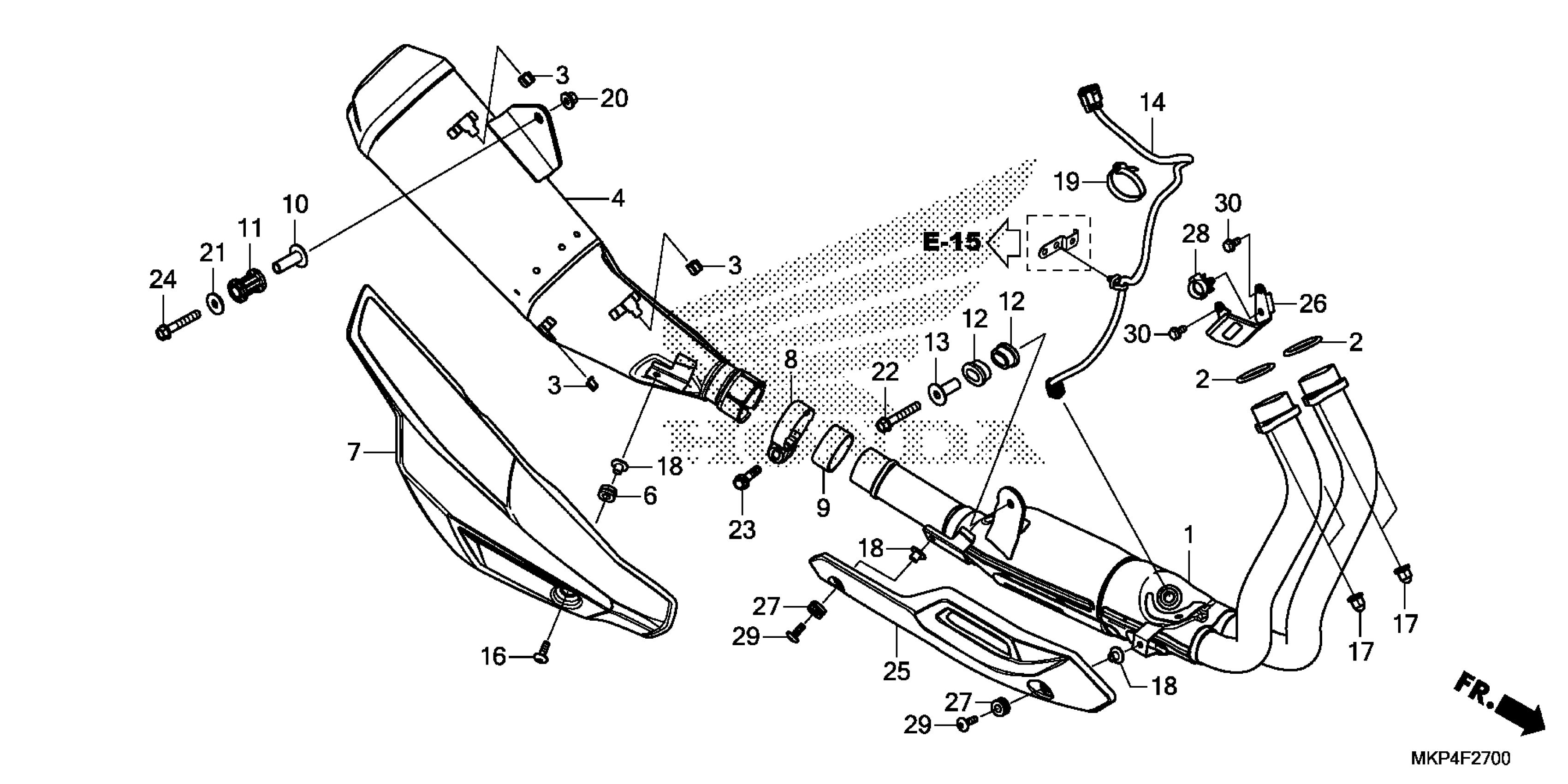

Honda CB500XAAC (23) MOTORCYCLE, THA, VIN# MLHPC645-P5400001 MUFFLER Diagram

#

Description
Price

1

PIPE, EX.

18150-MKP-AQ0

$1,333.16

2

GASKET, EX. PIPE

18291-MN4-920

$4.94

3

RUBBER, PROTECTOR

18293-MN0-000

$1.94

4

MUFFLER

18310-MKP-DQ0

$276.17

6

RUBBER A, PROTECTOR

18320-196-000

$2.43

7

COVER, MUFFLER

18350-MJW-J00

$92.74

8

BAND, L. RR. MUFFLER (R. SIDE)

18376-413-000

$32.96

9

GASKET, MUFFLER

18391-MJW-J01

$9.67

10

COLLAR, MUFFLER MOUNTING

18420-MGZ-J00

$4.66

11

RUBBER, MUFFLER MOUNTING

18421-MGZ-J00

$1.70

12

RUBBER, EX. PIPE MOUNTING

18422-MGZ-J00

$7.92

13

COLLAR, EX. PIPE MOUNTING

18423-MGZ-J00

$4.51

14

SENSOR, AIR FUEL RATIO

36533-MKP-D01

$145.72

16

SCREW, PAN (6X20)

90118-MGZ-J00

$0.97

17

NUT, HEX. CAP (8MM)

90304-KPH-700

$1.55

18

COLLAR, HEAD SIDE COVER

90502-KGB-610

$1.93

19

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

20

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.86

21

WASHER, PLAIN (8MM)

94103-08000

$0.59

22

BOLT, FLANGE (8X50)

95701-08050-00

$2.23

23

BOLT, FLANGE (8X35)

96400-08035-04

$0.58

24

BOLT, FLANGE (8X50)

95801-08050-00

$2.80

24

BOLT, FLANGE (8X50) This part replaces 96400-08050-00.

95801-08050-00

$2.80

25

COVER, EX. MANIFOLD *NH303M* (MAT AXIS GRAY METALLIC)

18180-MKP-J40ZB

$24.43

26

COVER, SENSOR

18190-MGZ-J40

$21.06

27

RUBBER, COVER MOUNT

18195-MJW-J40

Unavailable

28

CLIP, RETURN HOSE

53781-SE0-952

$6.90

29

SCREW, PAN (6X20)

90119-MJW-J40

Unavailable

30

BOLT, FLANGE (6X14)

95701-06014-07

$1.32
