Description

Price

1

COVER, COMBINATION SWITCH

35106-MAT-A00

$9.65

2

SEAL, IGNITION SWITCH

30433-MBW-602

$2.62

3

LOCK SET

35010-MJW-A84

$215.51

4

SWITCH ASSY., COMBINATION & LOCK

35100-MJW-A02

$151.24

5

BASE, CONTACT

35101-MJW-D11

$40.60

7

GUIDE, CABLE

35106-MKP-J80

$9.29

8

EMBLEM, KEY | (Optional).

35113-MJE-D00

$20.09

9

KEY, BLANK | (Optional).

35121-MJE-A02

$20.18

10

HANDLEBAR NH303M

53100-MKP-DQ0ZA

$63.05

11

WEIGHT, HANDLEBAR

53104-MJE-D40

$27.03

12

WEIGHT B, HANDLEBAR

53105-MGZ-J80

$6.48

13

RUBBER A, HANDLE WEIGHT

53106-KR3-770

$3.74

14

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$5.95

15

HOLDER, HANDLE (UPPER) NH303M (MAT AXIS GRAY METALLIC)

53131-MKP-J40ZA

$27.74

16

HOLDER, HANDLE (LOWER) NH303M (MAT AXIS GRAY METALLIC)

53132-MKP-J80ZA

$52.22

17

SCREW-WASHER (5X25)

53192-MFL-000

$1.71

20

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.46

21

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.80

22

BOLT, FLANGE (8X40)

90107-MGE-000

$2.46

23

BOLT, FLANGE (6X14) (NOT AVAILABLE)

90117-KZZ-J80

$0.53

24

SCREW, OVAL (6X40)

90122-MKN-D50

$1.24

27

NUT, U (10MM)

90304-KGH-901

Unavailable

28

SCREW, TAPPING (3X16)

91059-KY2-711

$2.83

29

HOLDER, BRACKET (RED)

91554-SM4-003

Unavailable

30

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

31

CAP, SOCKET BOLT

91456-371-770

$3.31

32

BOLT, SOCKET (8X28)

96600-08028-08

$1.18

33

STAY, CLIP

35910-MKP-J80

$4.24

34

CLAMP C, FR.

45157-MKP-DQ0

$4.32

35

BOLT, FLANGE (6X14) (NSHF) (NOT AVAILABLE)

90017-GHB-620

$1.76

36

CAP, STEERING NUT

53232-K94-T00

$2.03

37

BRIDGE, FORK TOP

53300-MKP-DQ0

$88.15

38

NUT, STEERING STEM FLANGE

90304-MCF-000

$9.97

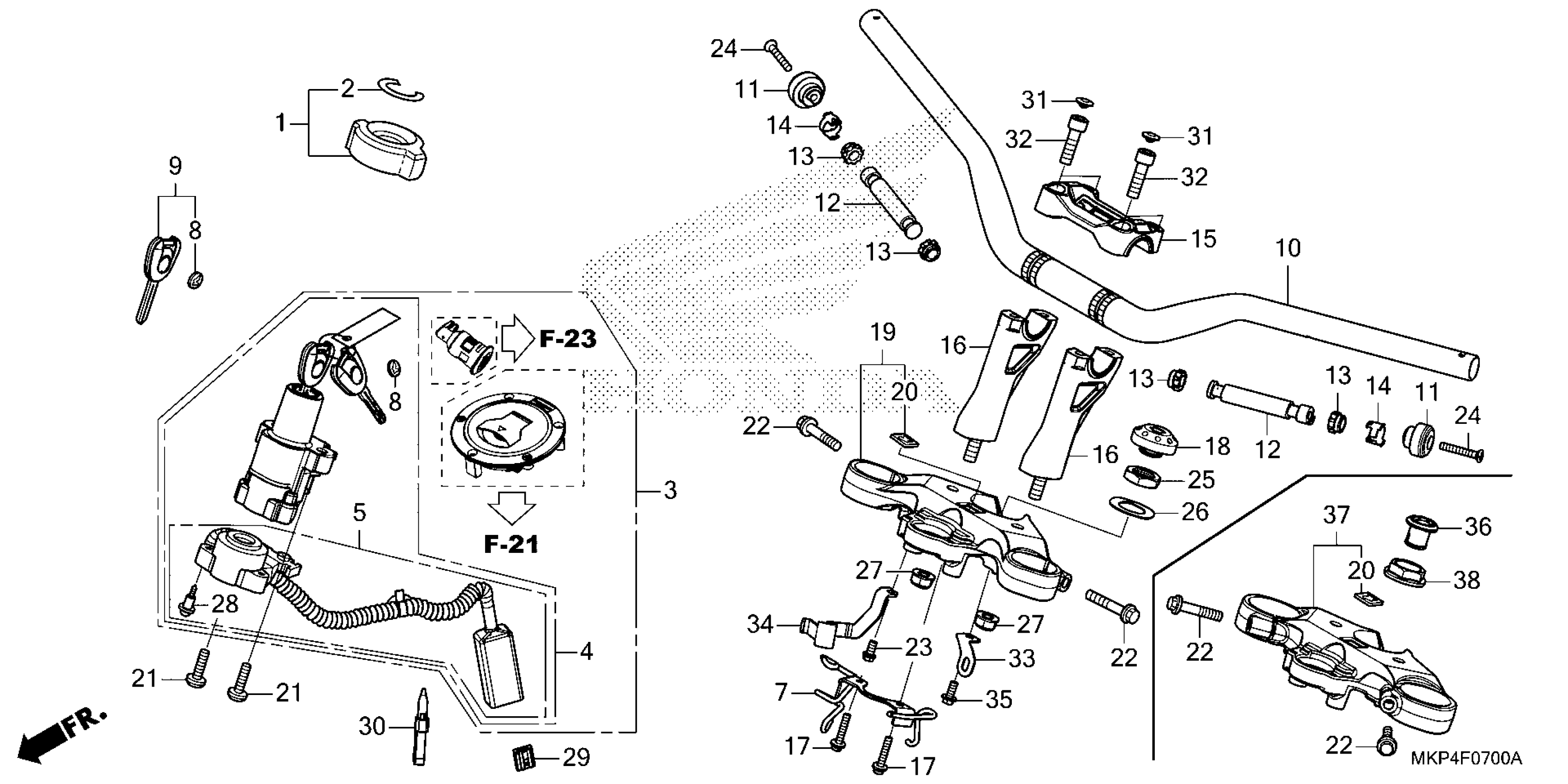

Honda CB500XAAC (23) MOTORCYCLE, THA, VIN# MLHPC645-P5400001 HANDLEBAR@TOP BRIDGE Diagram
