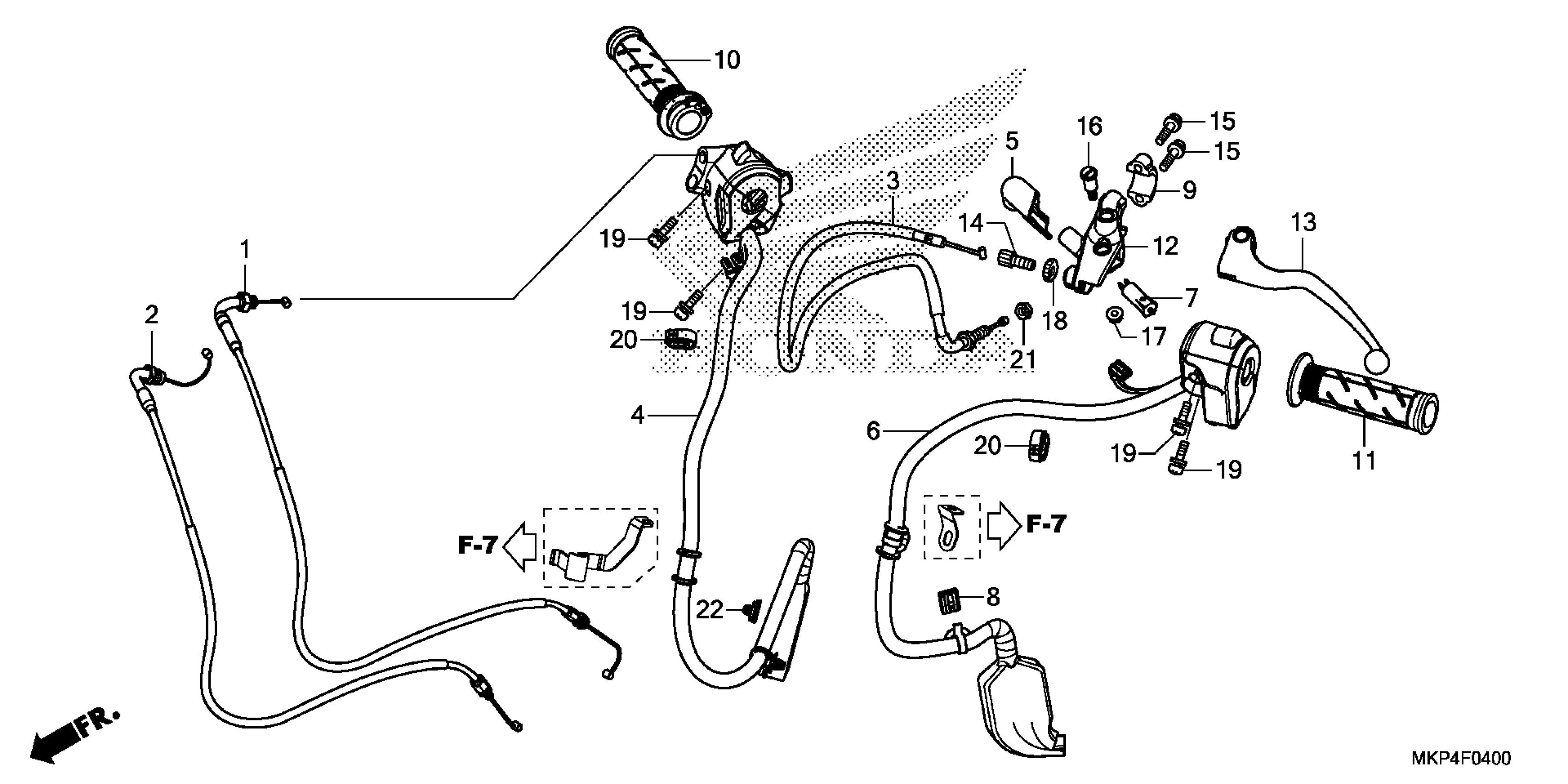

Honda CB500XAAC (23) MOTORCYCLE, THA, VIN# MLHPC645-P5400001 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE A, THROTTLE

17910-MKP-DQ1

$9.16

CABLE B, THROTTLE

17920-MKP-DQ1

$8.76

CABLE, CLUTCH

22870-MKP-DQ1

$7.20

SWITCH, ENGINE STOP

35130-MKP-AQ1

$74.60

COVER, CLUTCH SWITCH

35152-MGZ-J00

$1.79

SWITCH, TURN SIGNAL

35200-MKP-K82

$83.38

SWITCH, FR. LEVER

35330-KYJ-901

$6.30

HOLDER, BRACKET (RED)

91554-SM4-003

Unavailable

HOLDER, MASTER CYLINDER

45517-166-006

$12.44

GRIP, THROTTLE

53140-MGS-D30

$26.01

GRIP, L. HANDLE

53150-MGS-D30

$11.13

BRACKET, HANDLE LEVER

53172-KYJ-900

$12.76

LEVER, L. HANDLE

53178-MKP-J00

$12.15

BOLT, CABLE ADJUSTING

53192-268-000

$6.23

BOLT, FLANGE (6X22)

90013-GHB-660

$2.15

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.24

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.28

NUT, FIXING

90321-315-670

$6.97

SCREW-WASHER (5X20)

90507-MGZ-J00

$0.46

CLAMP, HARNESS

90690-MEF-800

$1.21

NUT, HEX. (8MM)

94002-08070-0S

$1.21

CLIP, CONNECTOR (ORANGE)

91580-SM4-003

$6.47
