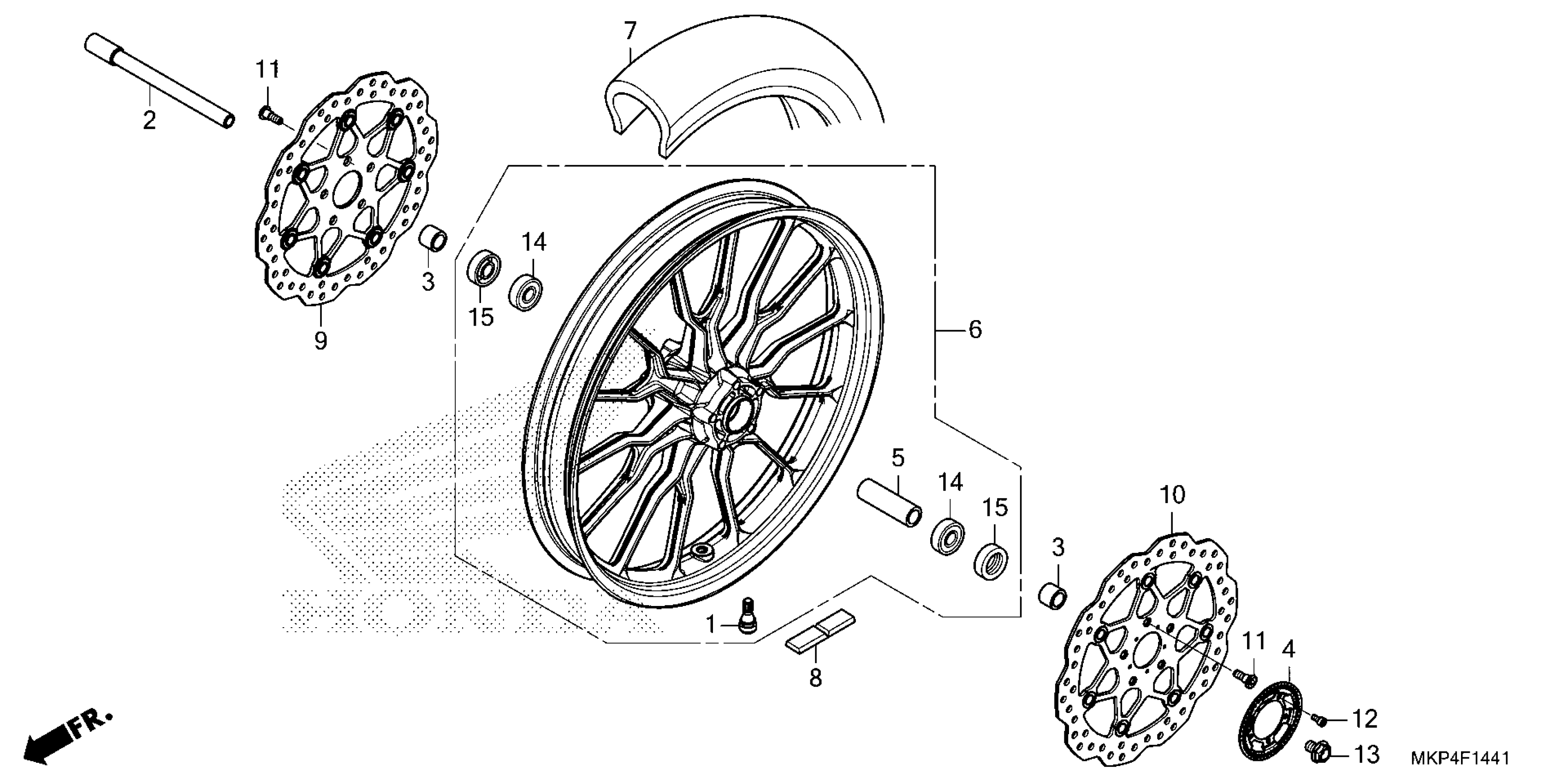

Honda CB500XAAC (23) MOTORCYCLE, THA, VIN# MLHPC645-P5400001 FRONT WHEEL (CB500XA'22/'23) Diagram

VALVE, RIM (IRC)

42753-GM9-743

$7.99

AXLE, FR. WHEEL

44301-MKP-DQ0

$21.93

COLR, FR. WHEEL SIDE

44311-MKP-DN0

$7.51

RING, FR. PULSER

44515-K87-L50

$47.91

COLLAR, FR.

44620-MKP-DQ0

$7.63

WHEEL SUB-ASSY., FR.

44650-MKP-DQ0

$307.51

TIRE, FR. (110/80R19 M/C 59H) (DUNLOP)

44711-MKP-J82

$193.07

WEIGHT, BALANCE (10G)

44721-MGH-H21

$3.28

WEIGHT, BALANCE (15G)

44722-MGH-H21

$3.93

WEIGHT, BALANCE (20G)

44723-MGH-H21

$3.75

DISK, R. FR. BRAKE

45120-MKP-DQ1

$149.82

DISK, L. FR. BRAKE

45220-MKP-DQ1

$158.26

BOLT, DISK (8X25)

90105-MGS-D30

$2.80

BOLT, SOCKET (5X10)

90131-K87-L50

$0.53

BOLT, FR. AXLE

90305-K87-A00

$1.22

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)

91051-KVK-901

$8.58

DUST SEAL (25X40X5)

91252-K35-V01

$1.99
