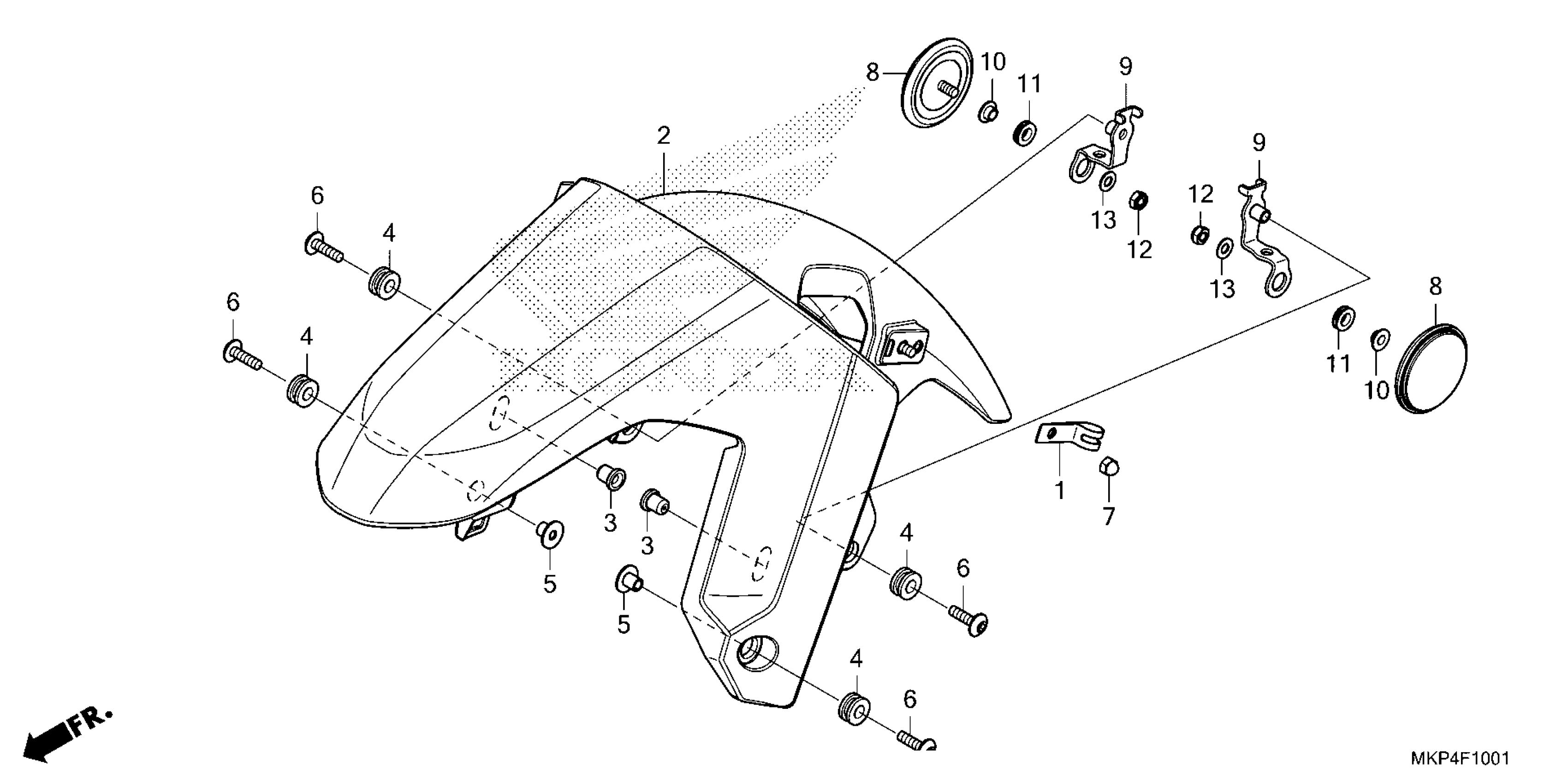

Honda CB500XAAC (23) MOTORCYCLE, THA, VIN# MLHPC645-P5400001 FRONT FENDER (CB500XA'22/'23) Diagram

CLAMP, FR. BRAKE HOSE

45132-MKN-D50

$3.74

FDR, FR. (TYPE3)

61110-MKP-DQ0ZA

$90.64

BOOT, HEADLIGHT BRACKET

61312-149-300

$2.56

RUBBER, RR. FENDER CUSHION (FR.)

80101-165-000

$3.74

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$4.08

SCREW, PAN (6X22)

90130-KYJ-900

$1.49

NUT, CAP (6MM)

94021-06070-0S

$1.62

REFLECTOR, FR. REFLEX (AMBER)

33741-KTG-U01

$6.36

STAY, FR. REFLECTOR

61105-MKP-DN0

$4.70

COLLAR, SEAT SETTING

77103-MEE-000

$2.72

RUBBER, RR. COWL MOUNTING (FR.) (FOR FR.)

80123-MER-D00

$2.02

NUT, U (6MM)

90301-782-000

$1.62

WASHER, PLAIN (6MM)

94101-06700

$1.49
