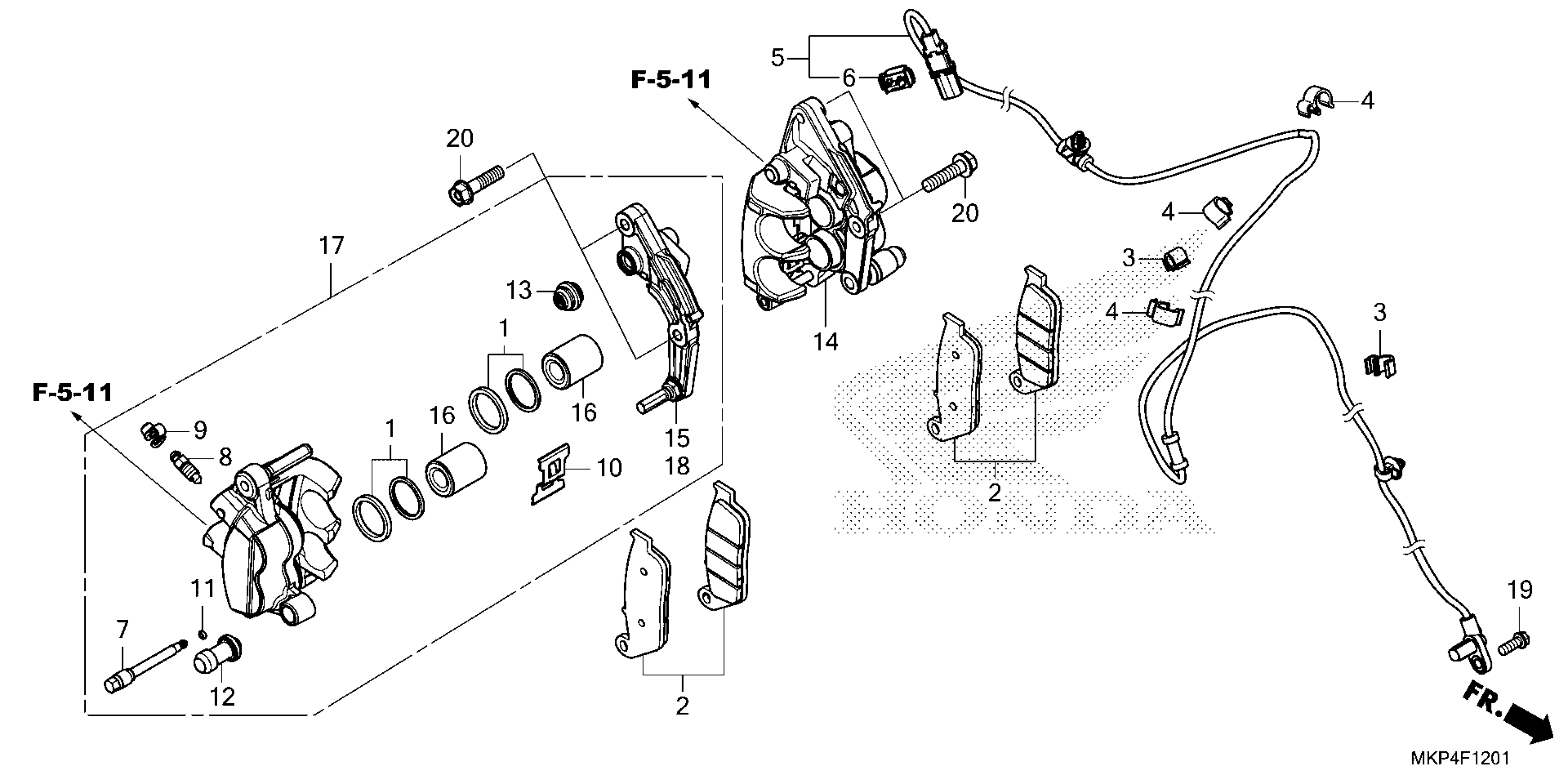

Honda CB500XAAC (23) MOTORCYCLE, THA, VIN# MLHPC645-P5400001 FRONT BRAKE CALIPER (CB500XA'22/'23) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

PAD SET, FR.

06455-MKP-DQ1

Unavailable

CLAMP, ABS WIRE (D8.5)

38516-MGE-003

$2.87

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.51

SENSOR, FR.

38520-MKP-DQ1

$25.31

CLIP, CONNECTOR (DARK BLUE)

42524-T5A-003

$2.69

PIN, HANGER

43215-KZ4-J41

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

SPRING, PAD (NISSIN)

45108-ML7-922

$5.90

RING, STOPPER

45111-MAJ-G41

$3.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CALIPER SUB-ASSY.

45150-MKP-DQ1

$131.50

BRACKET SUB-ASSY.

45190-MKP-DQ1

$30.04

PISTON B (27X35)

45218-MAJ-G41

$36.21

CALIPER SUB-ASSY.

45250-MKP-DQ1

$131.50

BRACKET SUB-ASSY.

45290-MKP-DQ1

$30.04

BOLT, FLANGE (6X16)

90116-MKP-DN0

$0.99

BOLT, FLANGE (8X32)

90131-KYJ-710

$1.63
