Description

Price

1

FRAME NH303M (MAT AXIS GRAY METALLIC)

50100-MKP-J80ZA

$504.66

2

RAIL, SEAT NH303M (MAT AXIS GRAY METALLIC)

50240-MKP-J80ZA

$316.22

3

BRACKET, FUEL TANK

50295-MGZ-J00

$11.32

4

COLLAR A, ENGINE HANGER

50351-MGZ-J01

$4.02

5

COLLAR B, R. ENGINE HANGER

50353-MGZ-J00

$6.82

6

COLLAR B, L. ENGINE HANGER

50354-MGZ-J00

$7.82

7

COVER, R. PIVOT

50401-MJW-J00

$5.69

8

COVER, L. PIVOT

50451-MJW-J00

$5.69

9

GROMMET, SIDE COVER

83551-376-000

Unavailable

10

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

11

BOLT, FLANGE (10X40)

90101-MKP-DN0

$1.25

12

BOLT, FLANGE (10X45)

90101-KTB-000

$4.13

13

BOLT, FLANGE (10X65)

90166-GHB-760

$1.62

14

BOLT, FLANGE (10X75)

90166-GHB-780

$1.76

15

BOLT, FLANGE (10X146)

90104-KYJ-900

$2.97

16

BOLT, FLANGE (10X35)

90168-S2A-010

$5.87

17

NUT, FLANGE (10MM)

94050-10000

$1.43

18

WASHER, PLAIN (10.5X22X1.6)

94101-10800

$1.74

19

BOLT, FLANGE (6X14)

95701-06014-08

$1.50

20

GROMMET A, RR. COVER (8X16X6.6) (FR.)

11344-MB0-000

$2.66

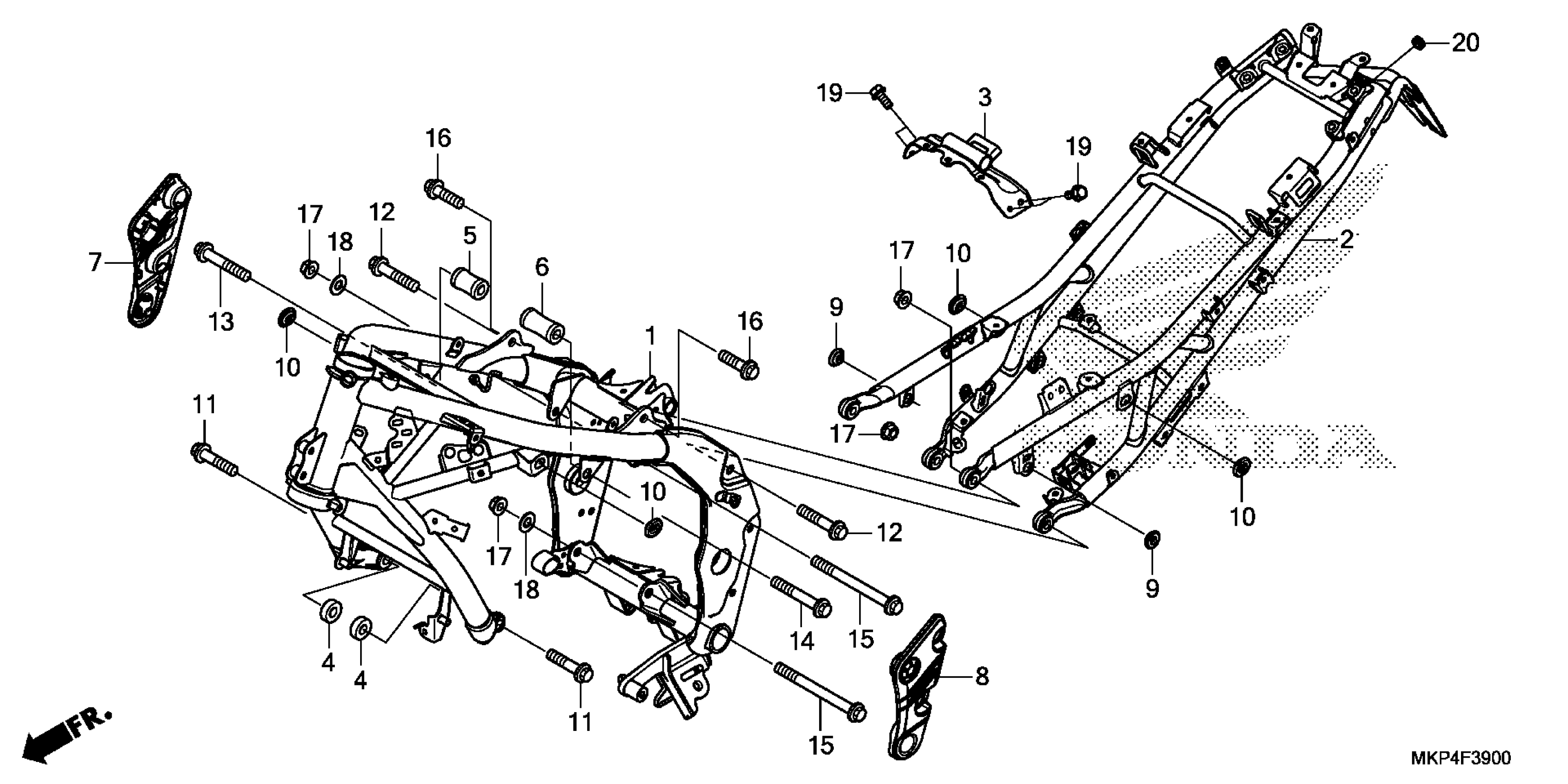

Honda CB500XAAC (23) MOTORCYCLE, THA, VIN# MLHPC645-P5400001 FRAME Diagram

FRAME *NH303M* (MAT AXIS GRAY METALLIC)

RAIL, SEAT *NH303M* (MAT AXIS GRAY METALLIC)
