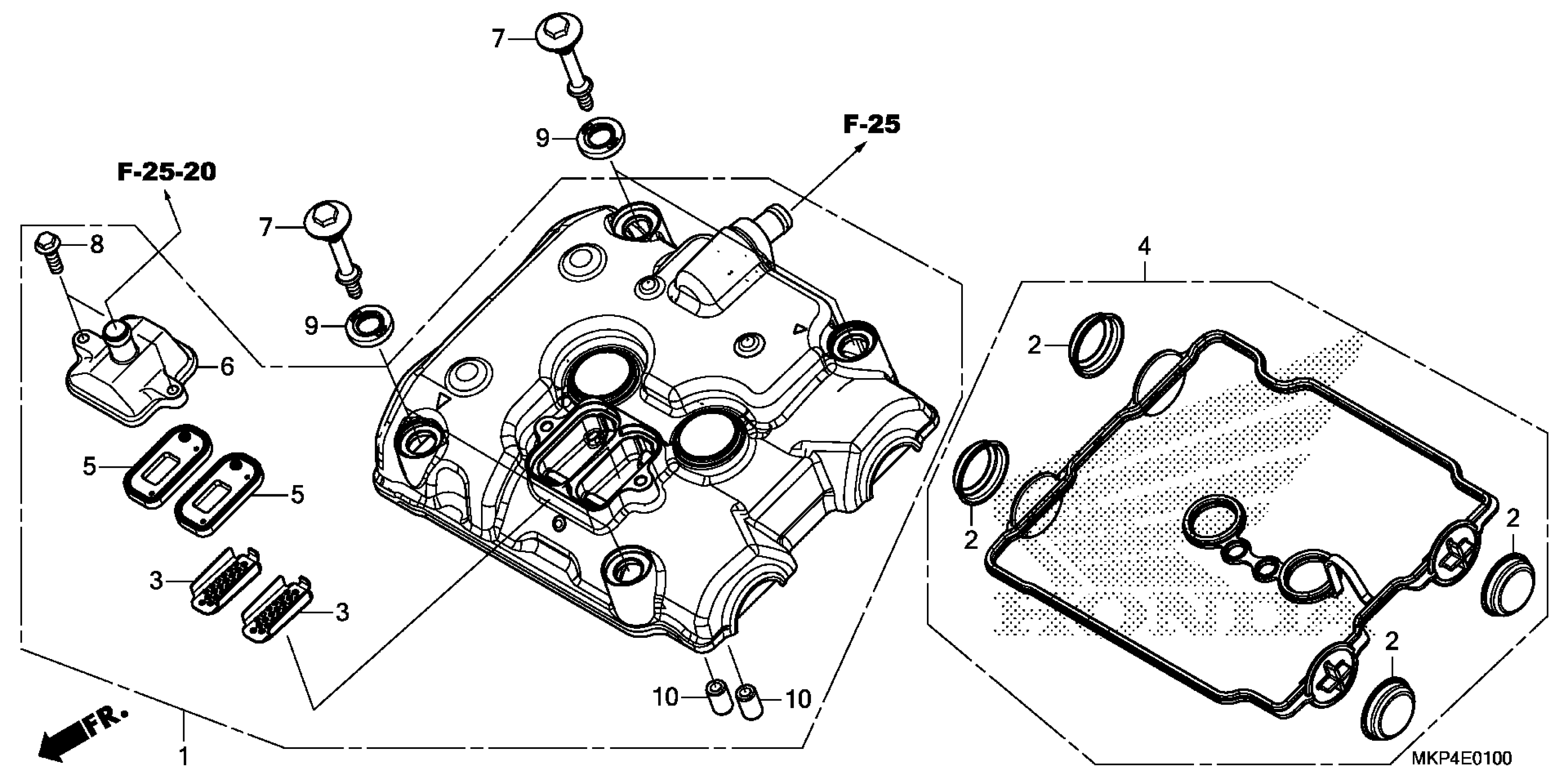

Honda CB500XAAC (21) MOTORCYCLE, THA, VIN# MLHPC645-M5200001 TO MLHPC645-M5299999 CYLINDER HEAD COVER Diagram

COVER ASSY., CYLINDER HEAD

12300-MGZ-J00

$251.87

CAP, CYLINDER HEAD COVER

12331-MGZ-J00

$9.74

PLATE, PORT (AI)

12341-MAT-750

$13.98

GASKET, CYLINDER HEAD COVER

12391-MGZ-J00

$39.92

VALVE, REED (ARAI)

18601-KEA-741

$18.89

COVER, REED VALVE

18612-MGZ-J00

$14.72

BOLT, HEAD COVER

90002-MY5-850

$9.49

BOLT, FLANGE (6X20) (NSHF)

90004-GHB-650

$1.95

RUBBER, MOUNTING (Honda Code 3699139)

90543-MV9-670

$4.94

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.28
