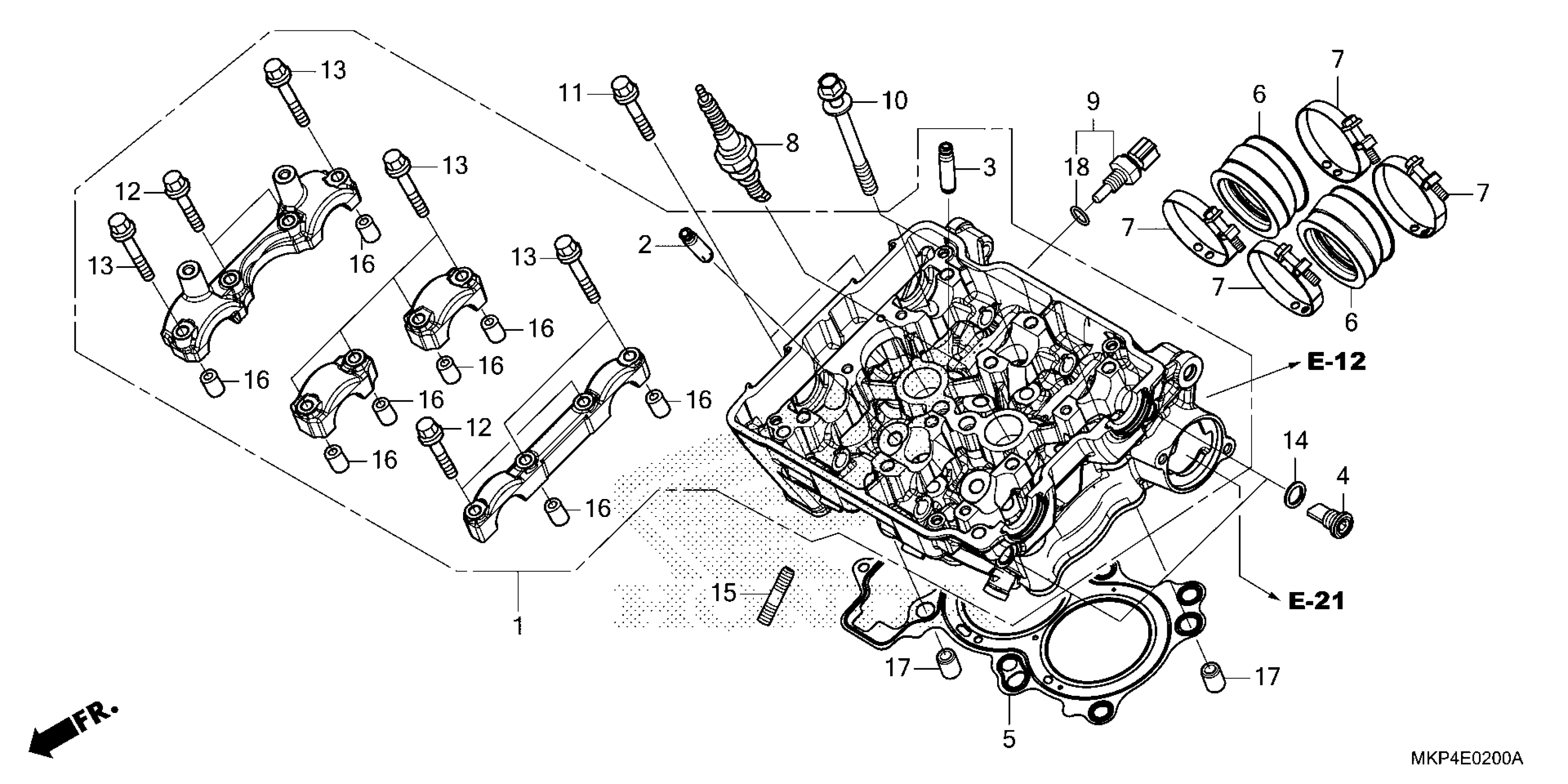

Honda CB500XAAC (21) MOTORCYCLE, THA, VIN# MLHPC645-M5200001 TO MLHPC645-M5299999 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY.

12010-MKP-DL0

$610.00

GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE)

12204-KYJ-305

$19.81

GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE)

12205-KYJ-305

$19.81

BOLT, SEALING (12MM)

12207-MGZ-J00

$8.67

GASKET, CYLINDER HEAD

12251-MGZ-J01

$33.74

INSULATOR, THROTTLE BODY

16211-MGZ-J00

$12.70

BAND, INSULATOR

16217-MGZ-J00

$3.49

SPARK PLUG (CPR8EA-9) (NGK)

31916-KRM-841

$5.82

SENSOR ASSY., WATER TEMPERATURE

37870-MGS-D31

$49.80

BOLT-WASHER (9X100)

90007-MGZ-J00

$5.02

BOLT, FLANGE (6X35)

90011-MGZ-J00

$1.49

BOLT, FLANGE (6X32)

90017-KYJ-900

$1.49

BOLT, FLANGE (6X39.5)

90019-KYJ-900

$1.49

WASHER (12.2X17X1.5)

90418-KYJ-900

$1.49

BOLT, STUD (8X22)

92900-08022-3E

$2.31

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

PIN A, DOWEL (12X16)

94301-12160

$2.27
