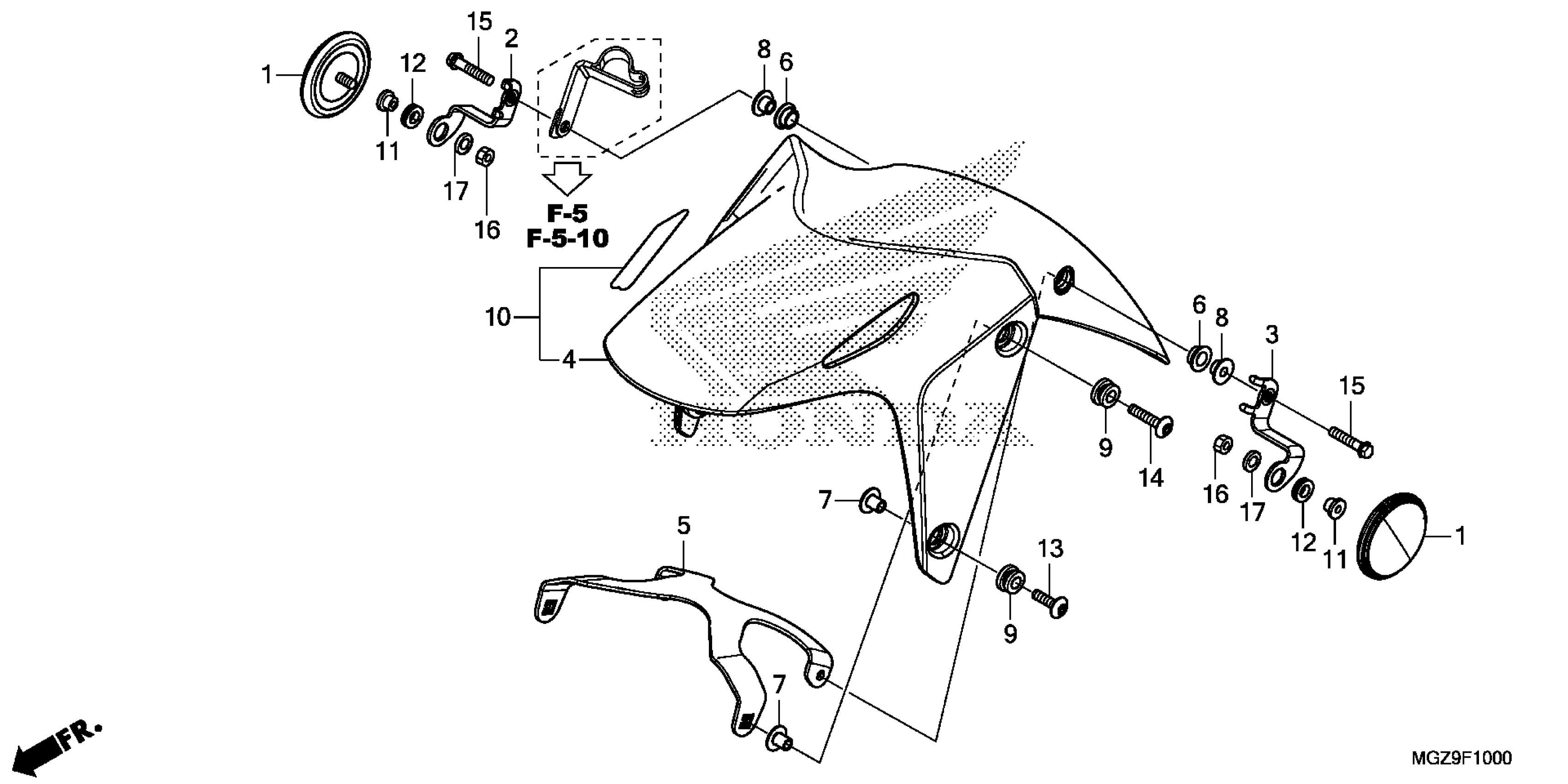

Honda CB500XAAC (14) MOTORCYCLE, THA, VIN# MLHPC460-E5100001 TO MLHPC460-E5199999 FRONT FENDER Diagram

REFLECTOR, FR. REFLEX (AMBER)

33741-KTG-U01

$6.36

STAY, R. FR. SIDE REFLECTOR

60114-MGZ-A00

$3.84

STAY, L. FR. SIDE REFLECTOR

60115-MGZ-A00

$3.84

FENDER, FR. *NH436M* (MAT GUNPOWDER BLACK METALLIC) This part replaces 61101-MGZ-J00ZG.

61101-MGZ-J01ZG

$60.14

FENDER, FR. *NH436M* (MAT GUNPOWDER BLACK METALLIC)

61101-MGZ-J01ZG

$60.14

BRACE, FR. FENDER

61102-MGZ-J00

$16.81

RUBBER, FR. FENDER MOUNTING

61103-KPF-910

$1.49

COLLAR A, FR. FENDER

61103-KRY-900

$1.49

COLLAR, FR. FENDER MOUNTING

61105-KPF-910

$1.49

RUBBER, FR. FENDER MOUNTING

61105-KRY-900

$1.49

COLLAR, SEAT SETTING

77103-MEE-000

$2.72

RUBBER, RR. COWL MOUNTING (FR.) (FOR FR.)

80123-MER-D00

$2.02

SCREW, PAN (6X22)

90130-KYJ-900

$1.49

SCREW, PAN (6X30)

90130-MGZ-J00

$1.49

BOLT, FLANGE (6X30)

90131-MGZ-J00

$1.49

NUT, U (6MM)

90301-782-000

$1.62

WASHER, PLAIN (6MM)

94101-06700

$1.49
